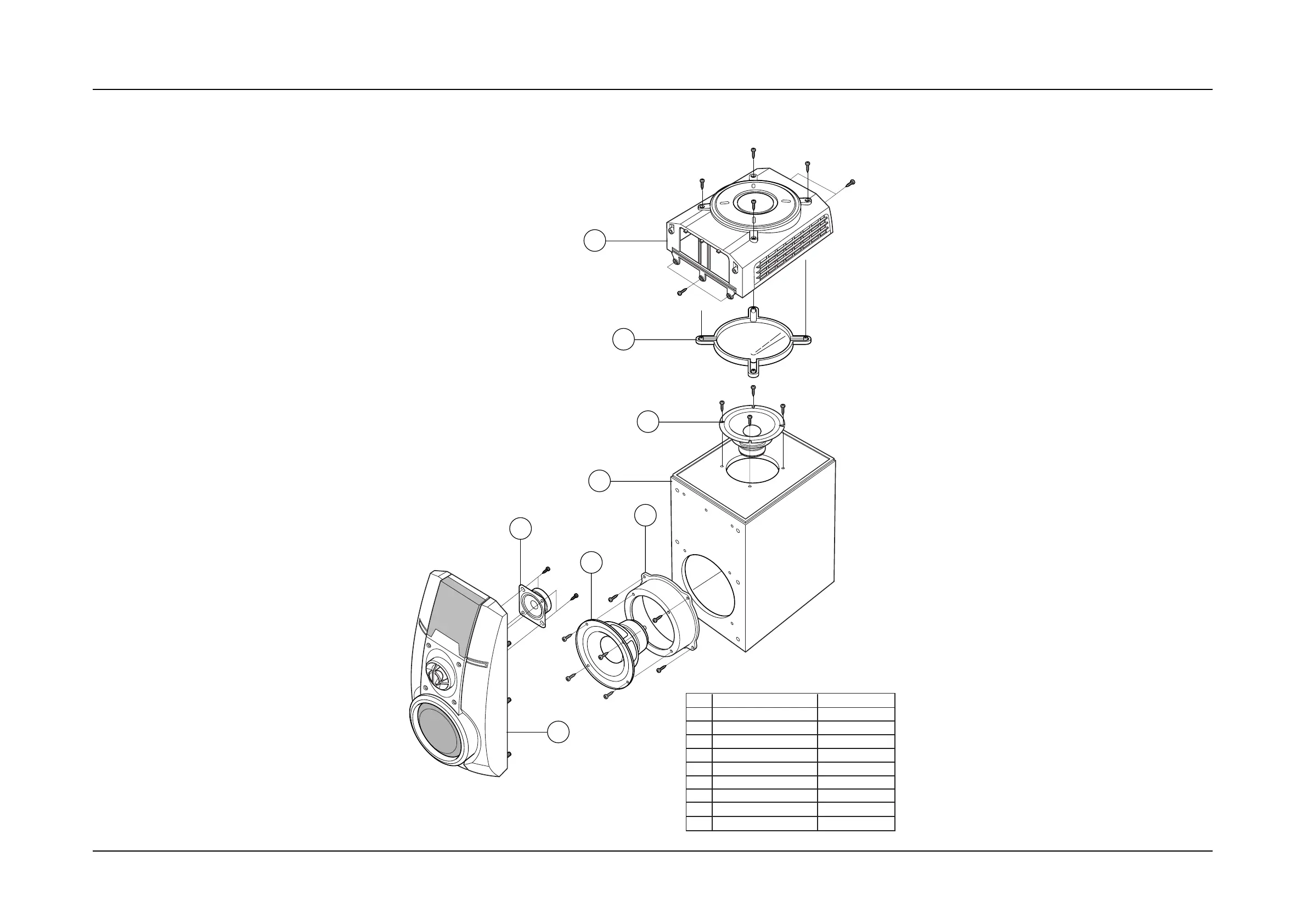

2-4-3. MAXWL87
* CAUSION : It is used the bonding, connet NET FRAME(or FRONT PANEL ASS’Y) to CABINET ASS’Y.
So when the disassembly, take extreme care not to demage the SPEAKER.
No ITEM
*PS WL87E ASS’YSPK: AH81-00379V
CODE No
1
FRONT PANEL AH81-00379C
TOP PANEL AH81-00379D
WOOFER RING AH81-00379H
REFLECTOR AH81-00379J
CABINET AH81-00379K
UNIT SUB WOOFER AH81-00379L
UNIT WOOFER AH81-00379M
UNIT TWEETER
PS WL69, 1PC
AH81-00351J
AH81-00379U
2
3
4
5
6
7
8
9
2
4
7
5
3
6
8
1
