Samsung MAX-WS730 - Page 33

Samsung Electronics 2-5

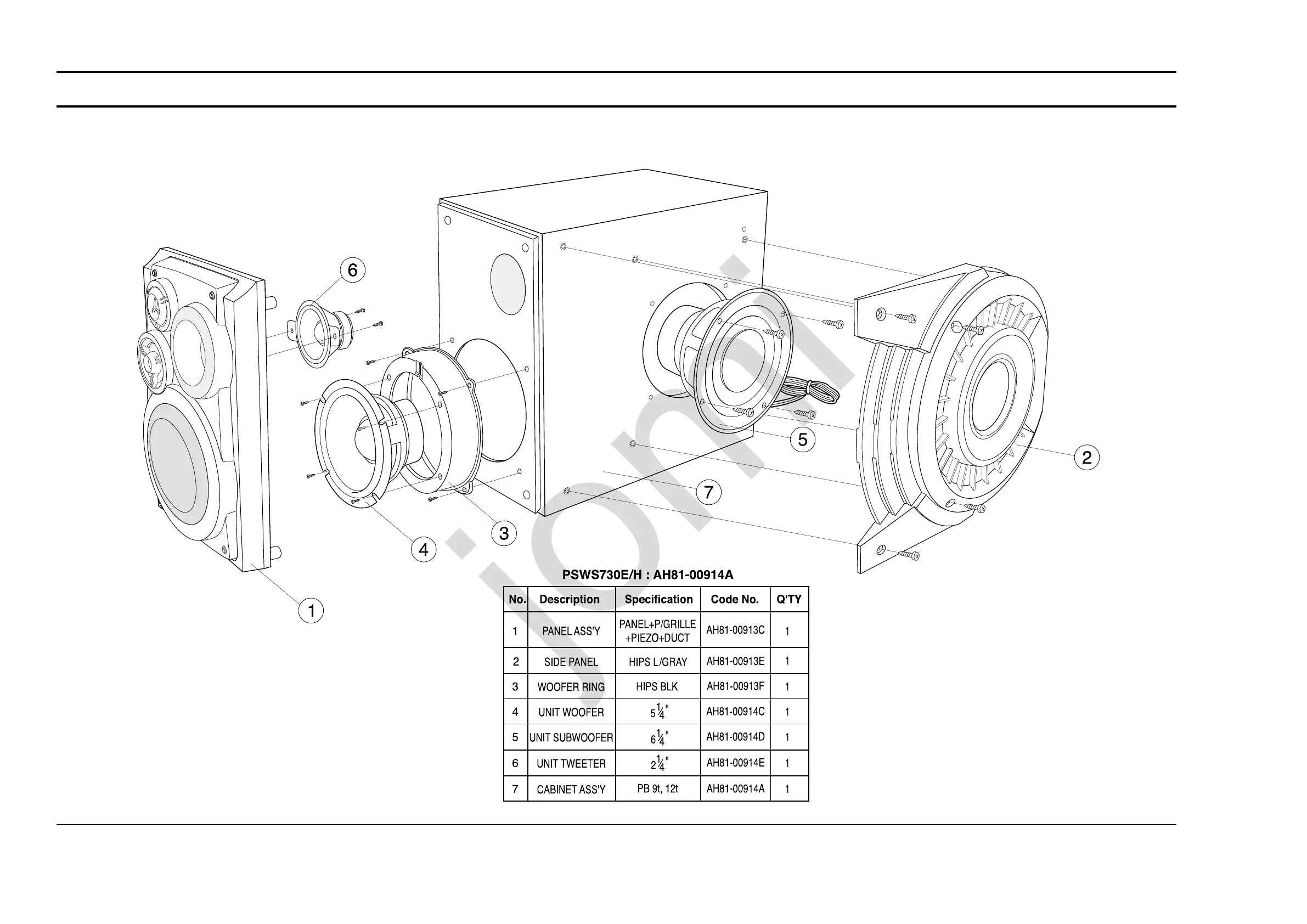

2-4 SPEAKER Exploded View and Parts list
* CAUSION : It is used the bonding, connet NET FRAME(or FRONT PANEL ASS’Y) to CABINET ASS’Y.
So when the disassembly, take extreme care not to demage the SPEAKER.
2-4-1 MAX-WS730/ WS730S/ ZS730/ ZS730G
