8

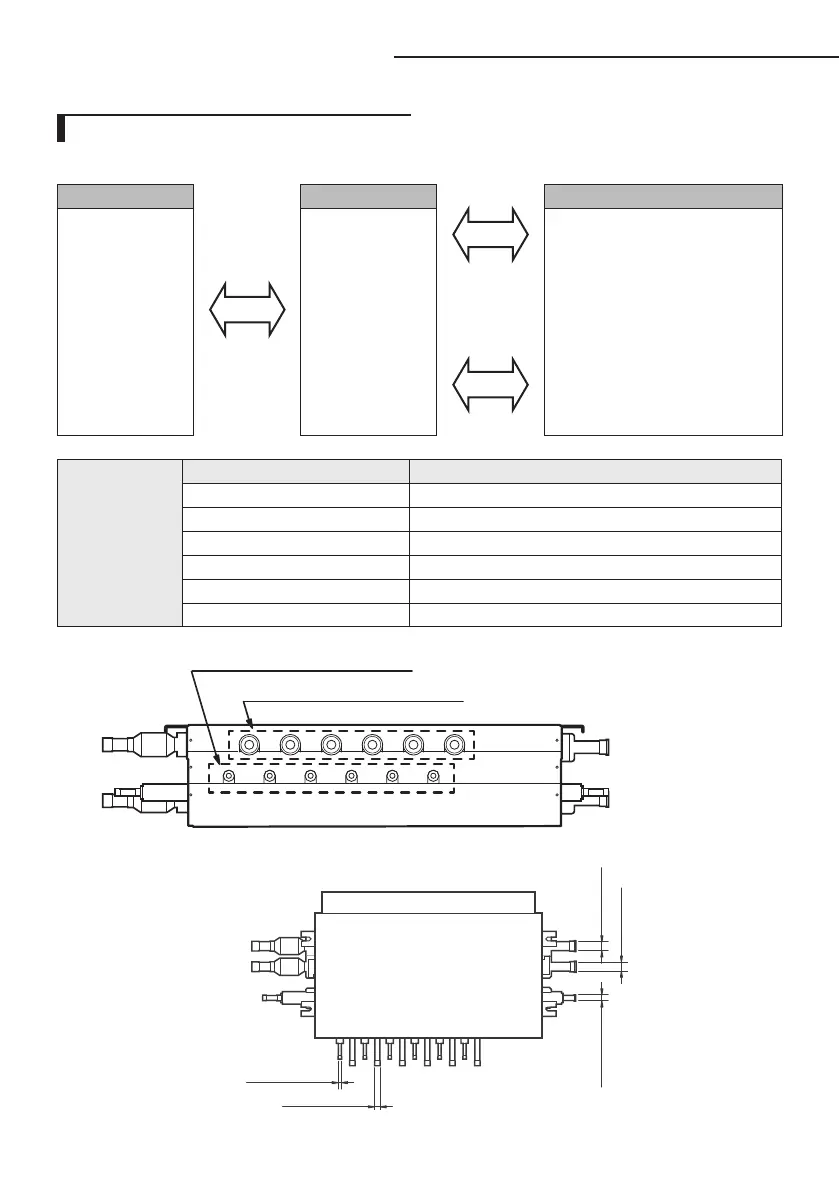

Preparing the installation
MCU indoor/outdoor unit compatible table
Before installing MCU, refer to the compatible table below and nd the model before installation.
Outdoor unit
AM✴✴✴✴X✴✴✴✴
MCU
MCU-S6NEK2N
MCU-S4NEK3N
MCU-S2NEK2N
MCU-S1NEK1N
MCU-S12NEK1N
MCU-S8NEK1N
Indoor unit
AM✴✴✴✴N✴✴✴✴
MCU Kit
Model Description
MCU-S6NEK2N below 61.6 kW (216MBH)
MCU-S4NEK3N below 61.6 kW (216MBH)
MCU-S2NEK2N below 32 kW (108MBH)
MCU-S1NEK1N below 16 kW (54MBH)
MCU-S12NEK1N 85.0 kW (290MBH)
MCU-S8NEK1N 85.0 kW (290MBH)
Gas pipe connected to indoor unit
Liquid pipe connected to indoor unit
ø 28.58 (ø 1 1/8)
ø 28.58 (ø 1 1/8)
ø 9.52 (ø 3/8) WELDING
ø 15.88 (ø 5/8) WELDING
[Unit : mm(inch)]
ø 15.88 (ø 5/8)
<MCU-S6NEK2N, MCU-S4NEK3N,MCU-S2NEK2N>
