Preparations
1
1 Preparations

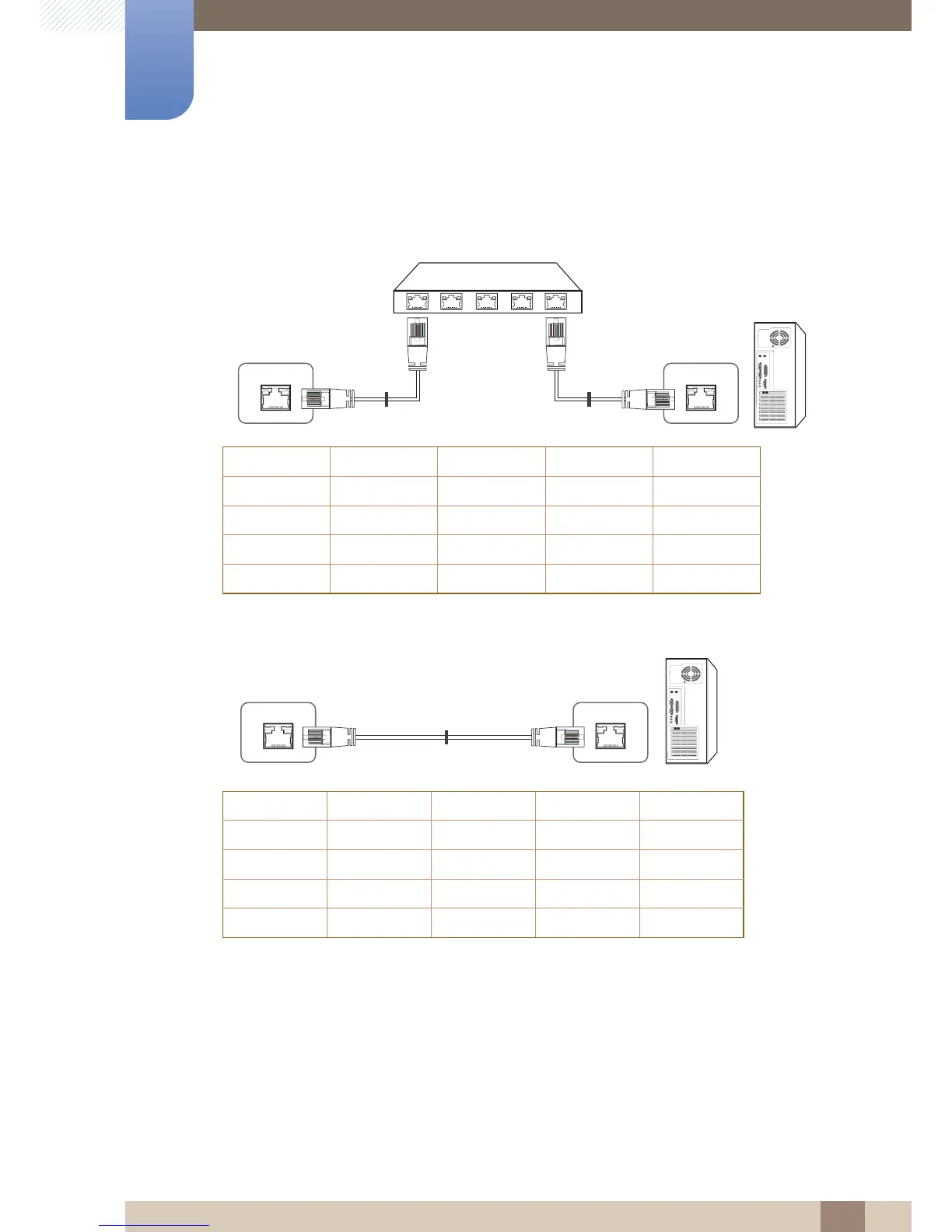

z Connector : RJ45
Direct LAN cable (PC to HUB)
Cross LAN cable (PC to PC)
Signal P1 P2 Signal
TX+ 1 <--------> 1
TX+
TX- 2 <--------> 2 TX-
RX+ 3 <--------> 3 RX+
RX- 6 <--------> 6 RX-
Signal P1 P2 Signal
TX+ 1 <--------> 3 RX+
TX- 2 <--------> 6 RX-
RX+ 3 <--------> 1 TX+
RX- 6 <--------> 2
TX-
RJ45 MDC RJ45 MDC
HUB
P1
P1P2
P2
RJ45 MDC
P1 P2
