Samsung MX-F730 - Rear Panel; Speaker Connector Terminals; AUX IN Terminals; FM;AM Antenna Connector Terminal

6 English English 6
English 7
1
2
3
4
1. 2.0 CH Speaker Connector Terminals
The speaker connector terminals are located on
the rear of the system.
1.
To achieve the correct sound quality, insert the
speaker connector cables identified below into
the correct speaker terminals on the back of
the system.
• Leftspeaker(markedL).
• Rightspeaker(markedR).
2. ONLY FOR SERVICE
• Thisjackisforserviceonly.Pleasedonotuse.
3. AUX IN Terminals
1.
Use an Audio Cable (not supplied) to connect
AUX IN on the product to Audio Out on an
external analog component.
• Besuretomatchconnectorcolors.
• Iftheexternalanalogcomponenthasonlyone
AudioOutjack,connecttoeithertheleftor
rightterminal.
• PresstheTUNER/AUXbuttontoselectthe
AUXinput.
• WhentheunitisinAUXmode,ifnoneof
thebuttonsonthefrontpanelarepushed
formorethan8hours,thepowerwill
automaticallyturnoff.
4. FM/AM Antenna Connector Terminal
Plug the connector on the FM/AM antenna (supplied)
into the FM/AM terminal on the rear of the system.

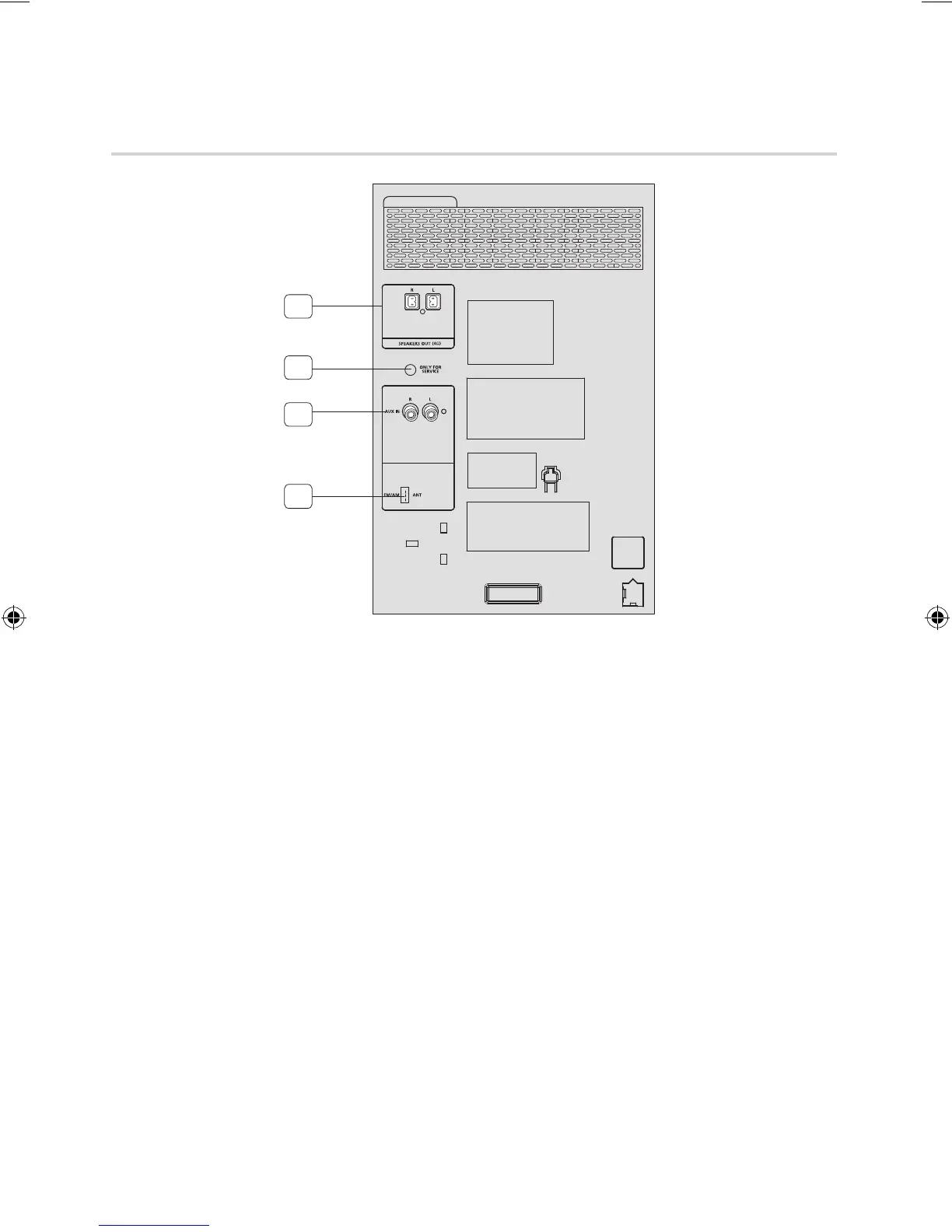

Rear Panel
