Disassembly and Assembly
47

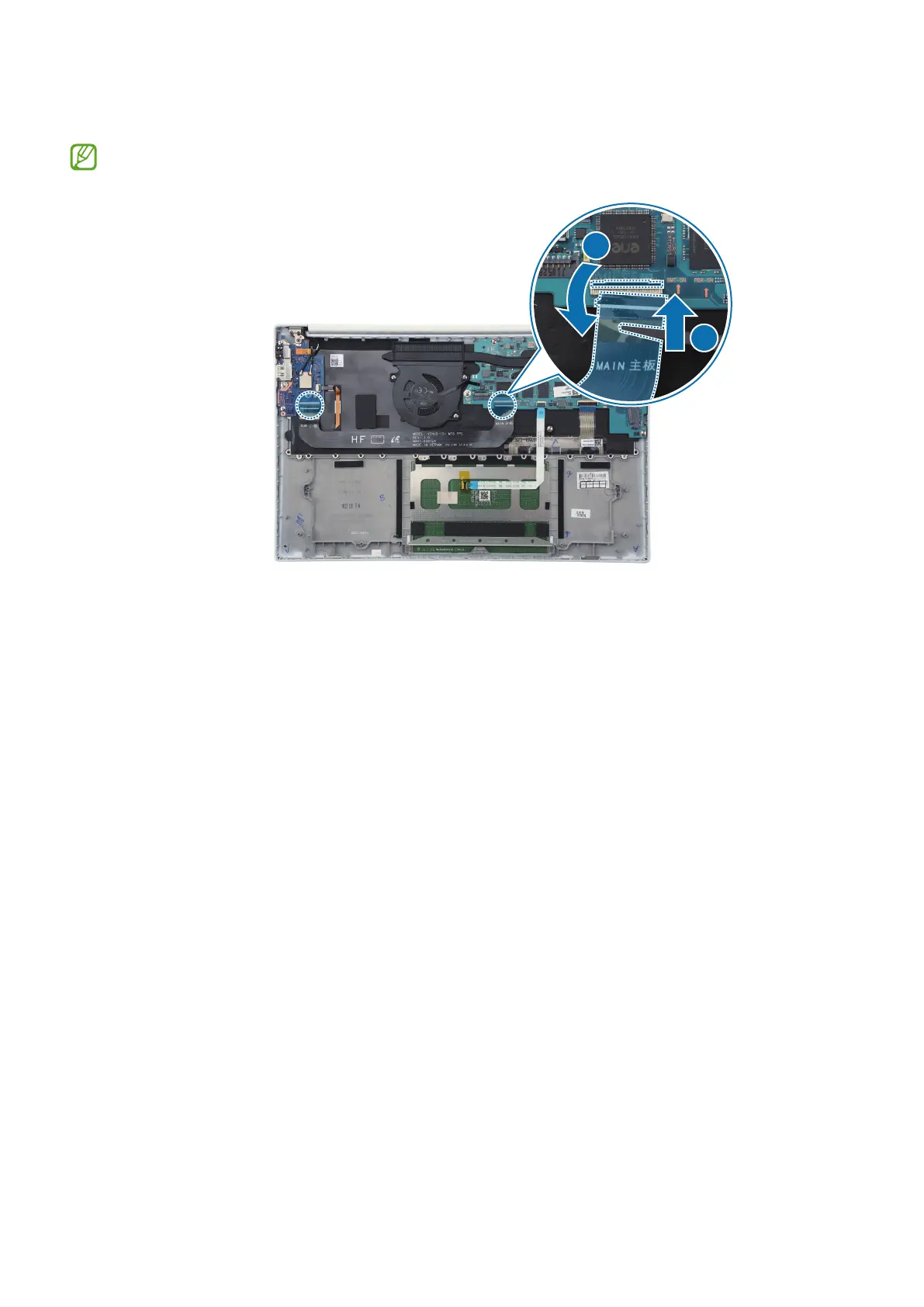

3 Using the tweezers, connect the main to sub cable and close the lever.
Connect the SUB cable to the sub board and the MAIN cable to the main board.
1
2
