 Connector : RJ45

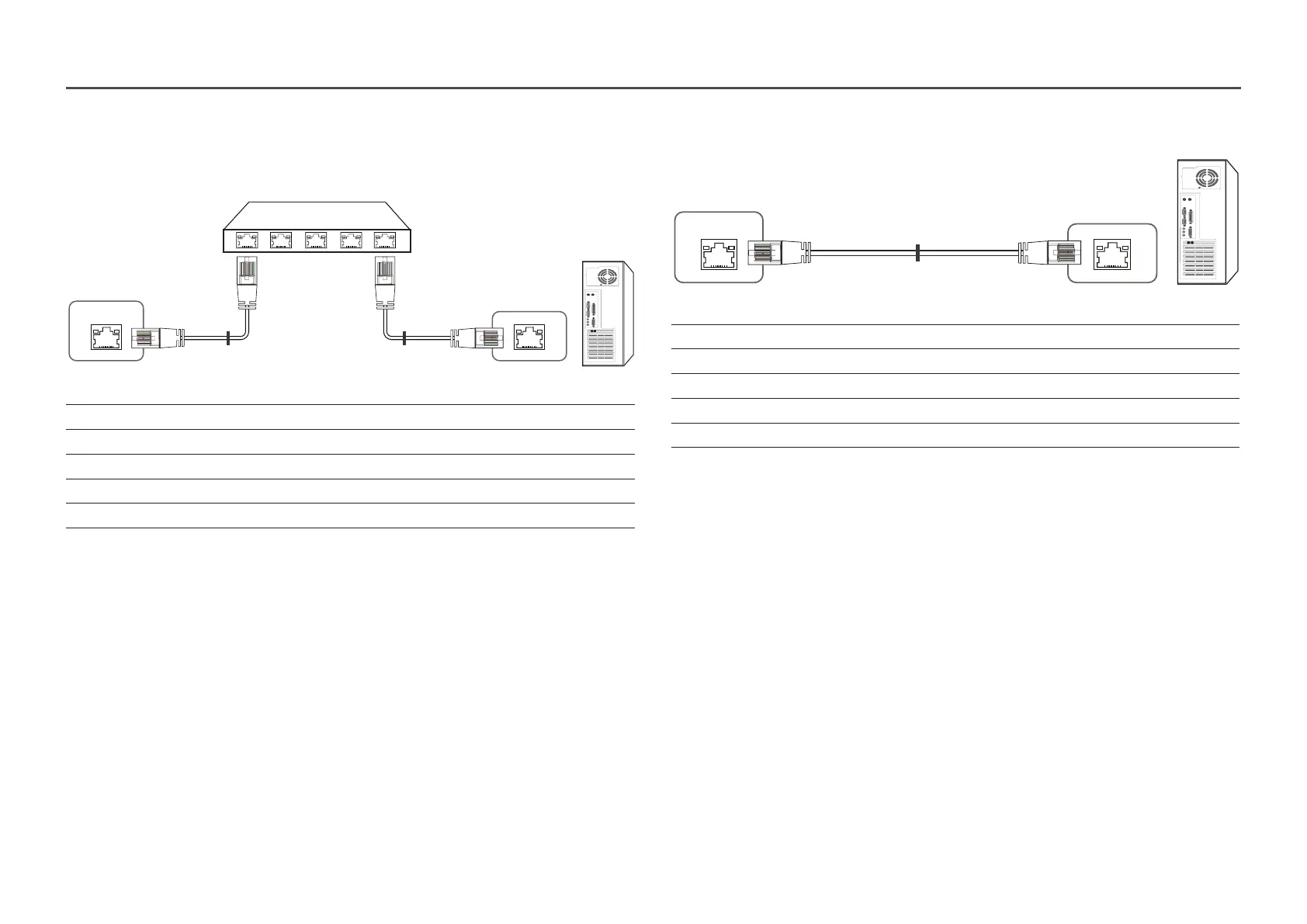

Direct LAN cable (PC to HUB)

HDBT (LAN IN)

HUB

P1P2

Signal P1 P2 Signal

TX+ 1 <--------> 1 TX+

TX- 2 <--------> 2 TX-

RX+ 3 <--------> 3 RX+

RX- 6 <--------> 6 RX-

Cross LAN cable (PC to PC)

RJ45

P1 P2

HDBT (LAN IN)

Signal P1 P2 Signal

TX+ 1 <--------> 3 RX+

TX- 2 <--------> 6 RX-

RX+ 3 <--------> 1 TX+

RX- 6 <--------> 2 TX-
