Inputting the DDC Data
After exchange the Main Board, We use DDC manager and must complete downloading. -

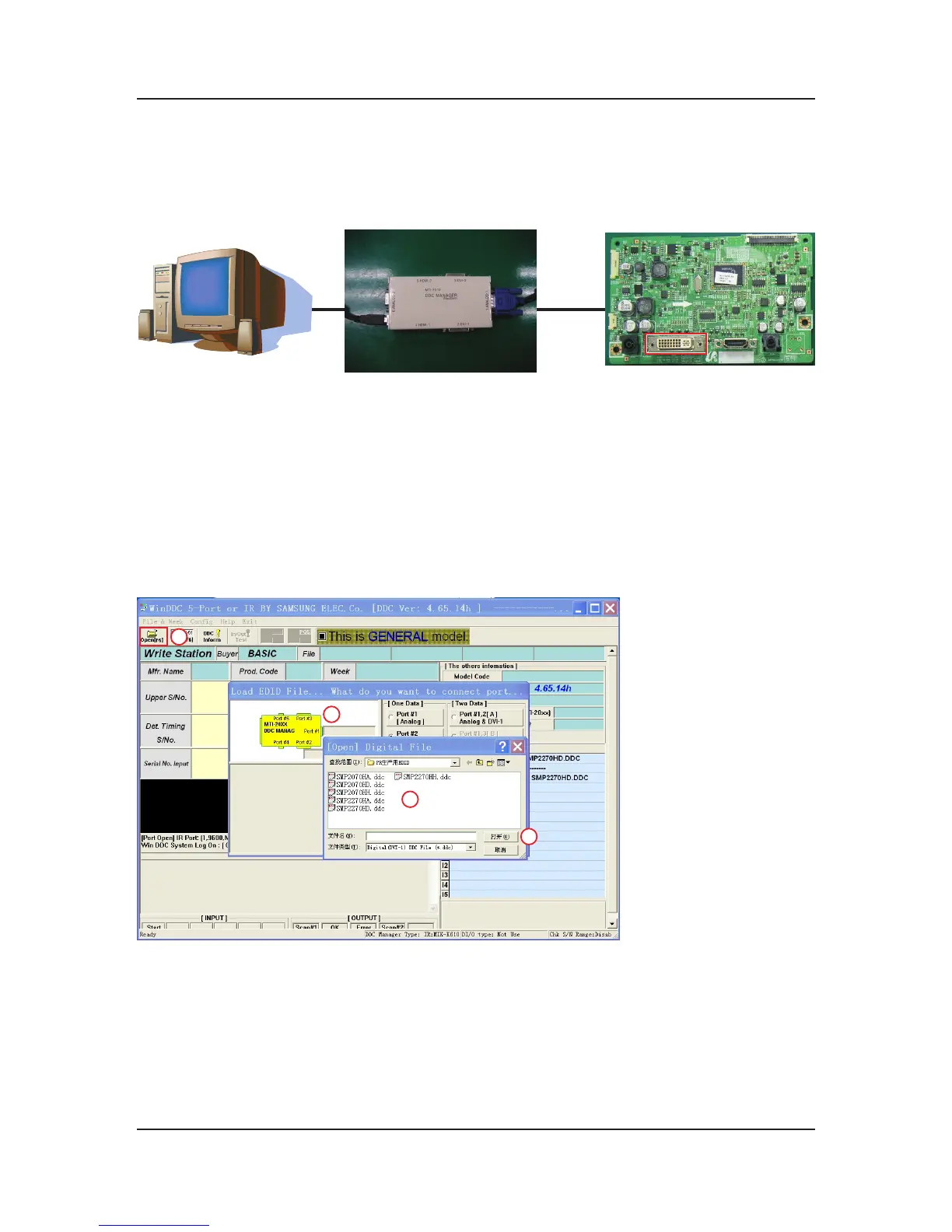

Connecting is refer to below picture. -
MICOM can be updated with DDC manager. -
Connect to parallel port DDC MANAGER Connect to MAIN board
CN102
- Connect DDC Manager Jig to P2070H / P2270H with DVI-I to D-Sub cable and DVI cable.
- Execute Winddc.exe Program on PC.
- Click the Winddc icon.
1. Click the Open [F5] icon
2. Select Port #
-> Open a DDC le. (Ex) “SMP2270HA.ddc” : Analog
3. Select the other Port # “SMP2270HD.ddc” : Digital
4. Click Next (OK) button
1
2
3
4
To Next Page
