Display Modes (HDMI Input)
Optimal resolution is 1024 x 768@60Hz.
Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz)
Sync Polarity
(H / V)
IBM
720 x 400 31,469 70,087 28,322 -/+
MAC
640 x 480 35,000 66,667 30,240 -/-
832 x 624 49,726 74,551 57,284 -/-
VESA
DMT
640 x 480 31,469 59,940 25,175 -/-
640 x 480 37,861 72,809 31,500 -/-
640 x 480 37,500 75,000 31,500 -/-
800 x 600 37,879 60,317 40,000 +/+
800 x 600 48,077 72,188 50,000 +/+
800 x 600 46,875 75,000 49,500 +/+
1024 x 768 48,363 60,004 65,000 -/-
1024 x 768 56,476 70,069 75,000 -/-
1024 x 768 60,023 75,029 78,750 +/+
✎
The interlace mode is not supported.
✎
The set might operate abnormally if a non-standard video format is selected.
Connecting to a Network
You can connect your TV to your local area network (LAN) using a wired or wireless connection.
✎
After you have “physically” connected your TV to your network, you must configure the network connection to complete the
process. You can configure the connection during the Initial Setup process or after the Initial Setup process, through the TV’s
menu.
The Wireless Network Connection
You can connect your TV to your LAN through a standard wireless router or modem. To connect wirelessly, you must first attach a
“Samsung Wireless LAN Adapter” (WIS09ABGNX, WIS12ABGNX - sold separately) to the USB port on the side of your TV. See the

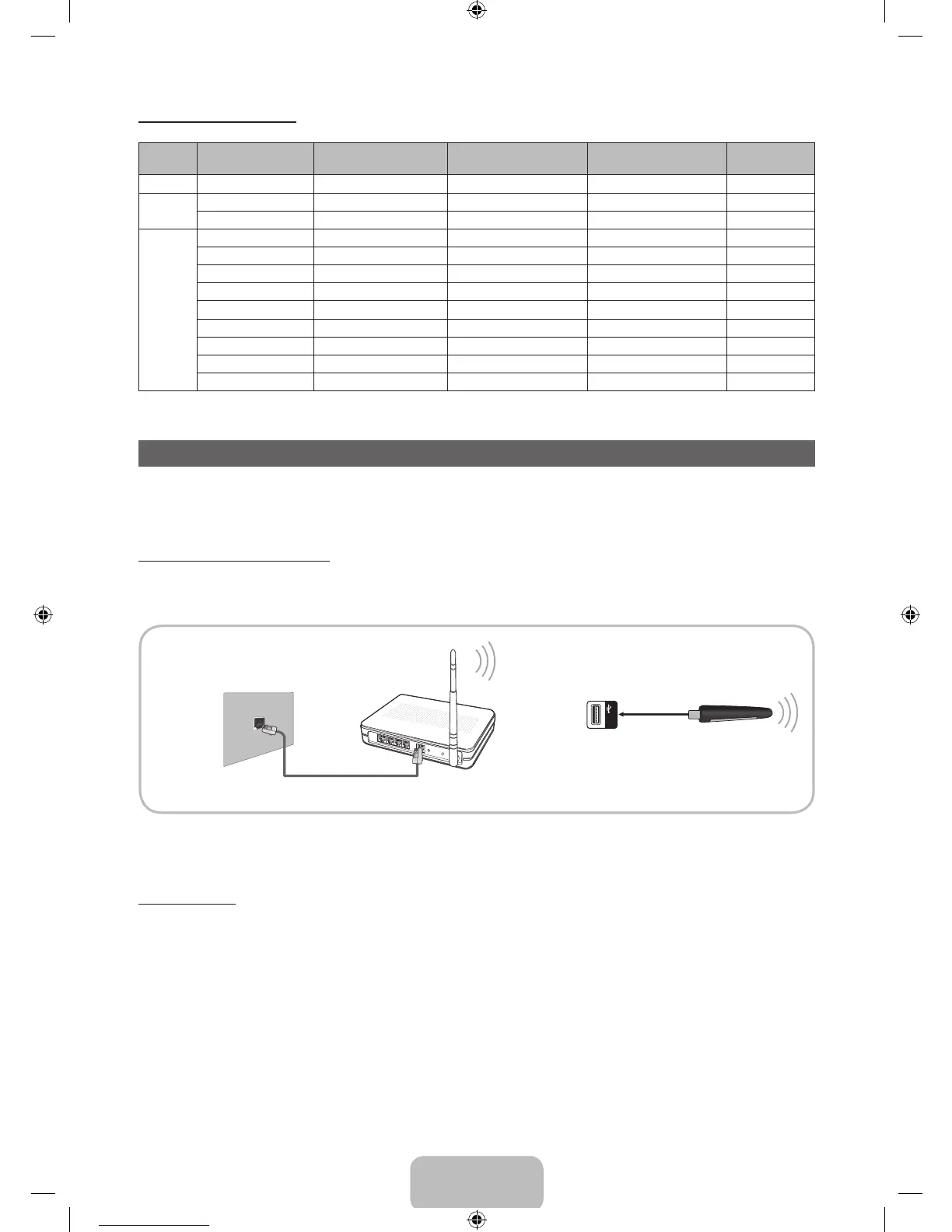

illustration below.
Samsung’s Wireless LAN adapter is sold separately and is offered by select retailers, E-commerce sites, and Samsungparts. com.
Samsung’s Wireless LAN adapter supports the IEEE 802.11a/b/g and n communication protocols. Samsung recommends using IEEE
802.11n. When you play video over a network connection using one of the other protocols, the video may not play smoothly.
Wireless Security
Most wireless network systems incorporate a security system that requires devices that access the network through an access point or
AP (typically a wireless router or modem) to transmit an encrypted security code called an access key.
If you select Pure High-throughput (Greenfield) 802.11n mode and the Encryption type is set to WEP on your AP or wireless router, your
TV will not support a connection, in compliance with new Wi-Fi certification specifications.
(5V 0.5A)
USB
Wireless IP Sharer
(AP having DHCP Server)
Samsung Wireless
LAN Adapter
TV Side Panel
The LAN Port on the Wall
LAN Cable (Not Supplied)
