Samsung PN43D490A1D - Install the Stand; Stand Components; Assembly Steps; Installation Notes

English - 5

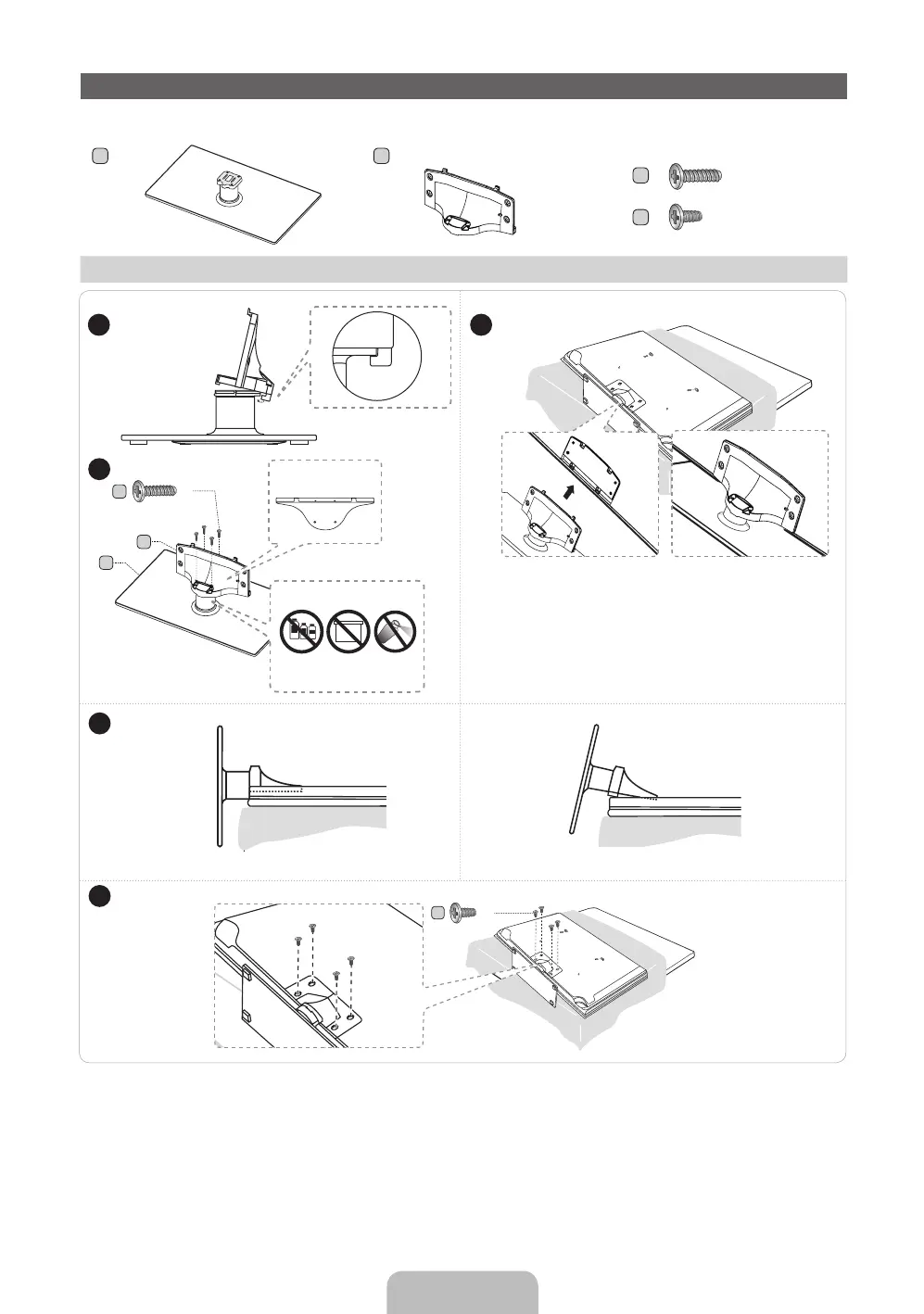

Install the Stand
See the separate stand installation guide for more detailed instructions.
Stand (1EA) Guide Stand (1EA) Screws (8EA)
✎ NOTE
x
Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.
x
Make sure that at least two people lift and move the TV.
x
Stand the product up when you fasten the screws. If you fasten the screws with the TV lying down, it may lean to one
side when you stand it up.
[
Do not insert your fingers into the stand base slot of the TV when installing the stand base.
Side View
4
5
D
(M4 X L8)
x4
(Correct assembly)
C
D
x4 (M4 X L12)
x4 (M4 X L8)
B
A
Rear
Front
C
(M4 X L12)
x4
Top View
DO NOT USE
CHEMICALS
DO NOT USE
GREASE
DO NOT USE
OIL
ATTENTION
1 3
2
B
1 EA
A
1 EA
✎ Place a soft cloth over the table to protect the TV,
and then place the TV on the cloth screen side
down.
✎ Insert the Stand Guide into the slot of TV bottom
side.
(Incorrect assembly)
