3.
Disassembly
and
Reassembly

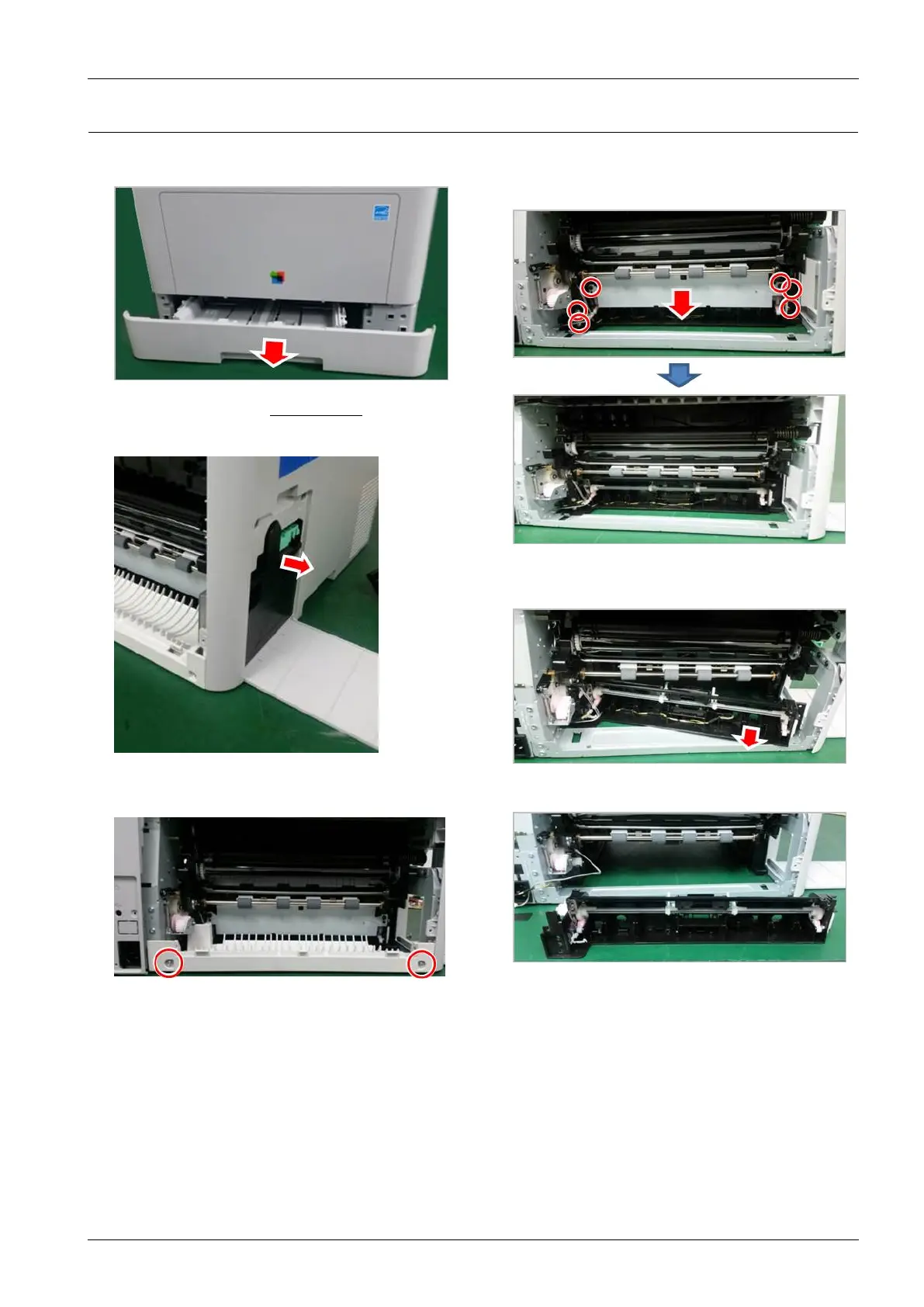

3.3.17.
FRAME-SEP
ARA
TION
UNIT
1.
Remove
the
cassette.
2.
Remove
the
rear
cover
.
(
Refer
to
3.2.3.
)
3.
Remove
the
waste
toner
container
.
4.
Remove
2
screws.
And
then,
release
the
Cover-Rear
Bottom.
5.
Remove
6
screws.
And
then,
remove
the
Plate-Guide
Paper
.
6.
Pull
the
right
of
the
FRAME-SEP
ARA
TION
to
the
front
and
release
it.
7.
Unplug
the
harness.
Copyright©
1995-2017
SAMSUNG.
All
rights
reserved.
3-20
60
62
Table of Contents
Table of Contents
2
Precautions
5
Safety Warning
5
Caution for Safety
6
Toxic Material
6
Electric Shock and Fire Safety Precautions
6
Handling Precautions
7
Assembly and Disassembly Precautions
7
Disregarding this Warning May Cause Bodily Injury
8
ESD Precautions
9
Product Specification and Description
10
Product Specification
10
Product Overview
10
Specifications
11
General Specification
11
Print Specification
11
Paper Handling Specification
13
Software and Solution
15
Supplies
16
Maintenance Parts
17
System Overview
18
Front View
18
Rear View
20
Paper Path
21
System Layout
22
Feeding Section
23
Transfer Roller
24
Drive Unit
24
Fuser Unit
25
LSU (Laser Scanner Unit)
26
Toner Cartridge
27
Hardware Configuration
28
Main Board
30
OPE Controller
32
SMPS Board
33
HVPS Board
35
Electrical Parts Location
36
Engine Firmware Control Algorithm
38
Feeding
38
Transfer
38
Fusing
39
Lsu
39
Software Descriptions
40
Software System Overview
40
Architecture
40
Data and Control Flow
41
Disassembly and Reassembly
42
Precautions When Replacing Parts
42
Precautions When Assembling and Disassembling
42
Precautions When Handling PBA
42
Releasing Plastic Latches
43
Replacing the Maintenance Parts
44
ITB Unit
44
Fuser Unit
46
Transfer Roller Assy
47
Pick Up_Forward_Separation Roller
48
Replacing the Main SVC Parts
49
Left and Right Cover
49
Top Cover
50
HVPS Board
51
Outer Temperature Sensor
51
Main Board
52
SMPS Fan
52
SMPS Board
53
Lsu
53
Fuser Fan
54
Exit Unit
54
Drive-T1
55
Fuser Drive Unit
56
PH (Paper Handling) Drive Unit
57
Main Drive Unit
58
MP Pick-Up Unit
59
Solenoid
60
Frame-Separation Unit
61
Alignment and Troubleshooting
62
Control Panel
62
Understanding the Status LED
63
Updating Firmware
64
Update the Firmware by Using the USB Port
65
Updating from the Network
66
Clearing Paper Jams
70
Useful Management Tools
75
Syncthru™ Web Service
75
Samsung Easy Printer Manager
77
Service Mode (Tech Mode)
79
Troubleshooting
85
Procedure of Checking the Symptoms
85
Error Code and Troubleshooting
86
11-2Txx (Paper Mismatch Error)
90
Ax-XXXX (Motor_Fan_Sensor Error)
91
CX-XXXX (Supplies and Maintenance Parts Error)
95
H1-XXXX (Optional Cassette Error)
106
MX-XXXX (Jam_Paper Handling Error)
108
Sx-XXXX (System Error)
114
U1-XXXX (Fuser Error)
119
U2-XXXX (LSU Error)
120
Image Quality Problems
121
System Diagram
127
Block Diagram
127
Connection Diagram_1
128
Connection Diagram_2
129
Reference Information
130
Tool for Troubleshooting
130
Glossary
131
Document Revision List
137
