Disassembly & Reassembly
Samsung Electronics 3-3

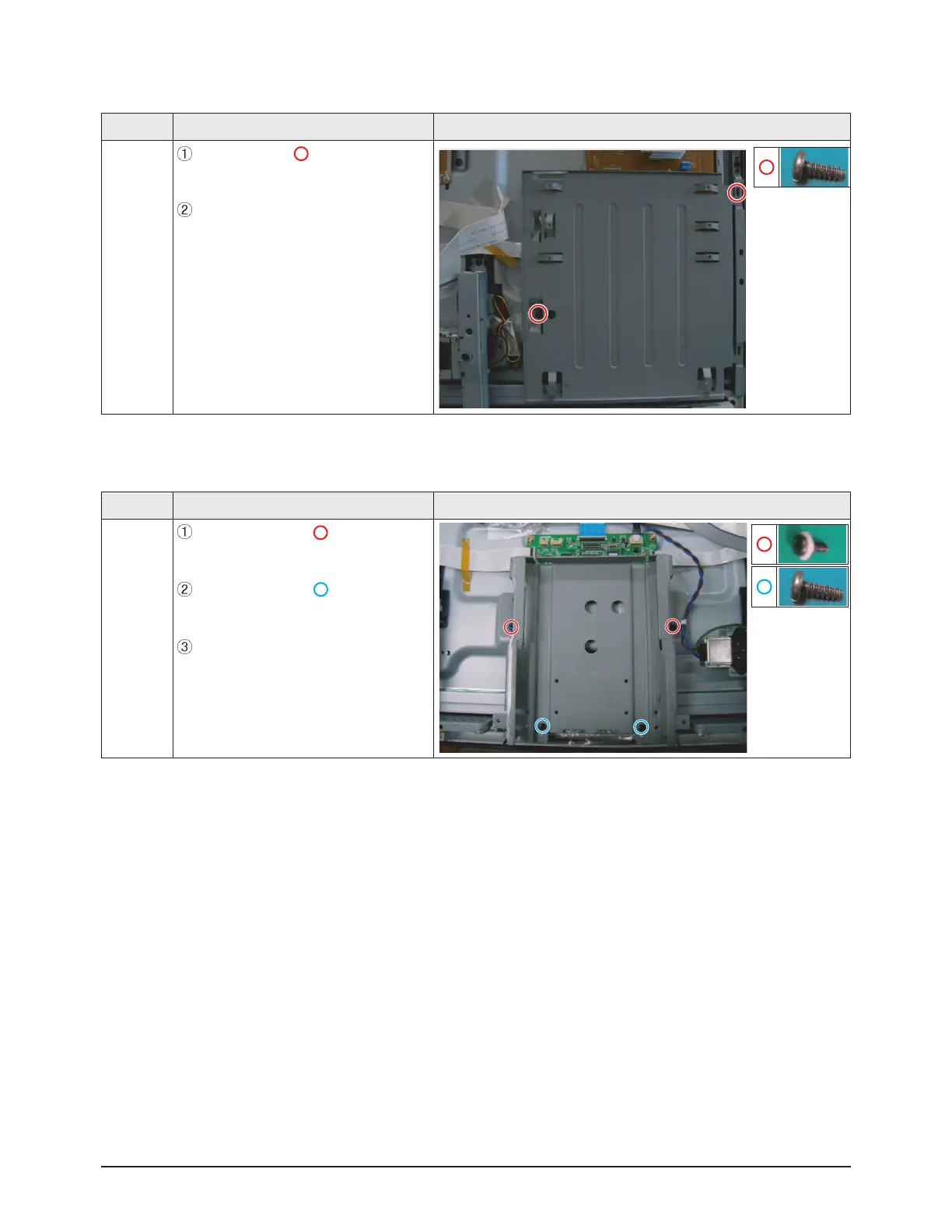

3-1-4 Separation of BRACKET-PCB
Part Name Description Description Photo
Bracket
PCB
Remove screw.( )
: BH,+,B,M4,L3,ZPC(BLK)
Remove the BRACKET-PCB.
3-1-5 Separation of ASSY BRACKET 42"/50"
Part Name Description Description Photo
Bracket
Remove 2 screws. ( )
: BH,+,PT,S Tite,M4,L10,ZPC(BLK)
Remove 2 screws. ( )
: BH,+,B,M4,L3,ZPC(BLK)
Remove Bracket.
To Next Page
