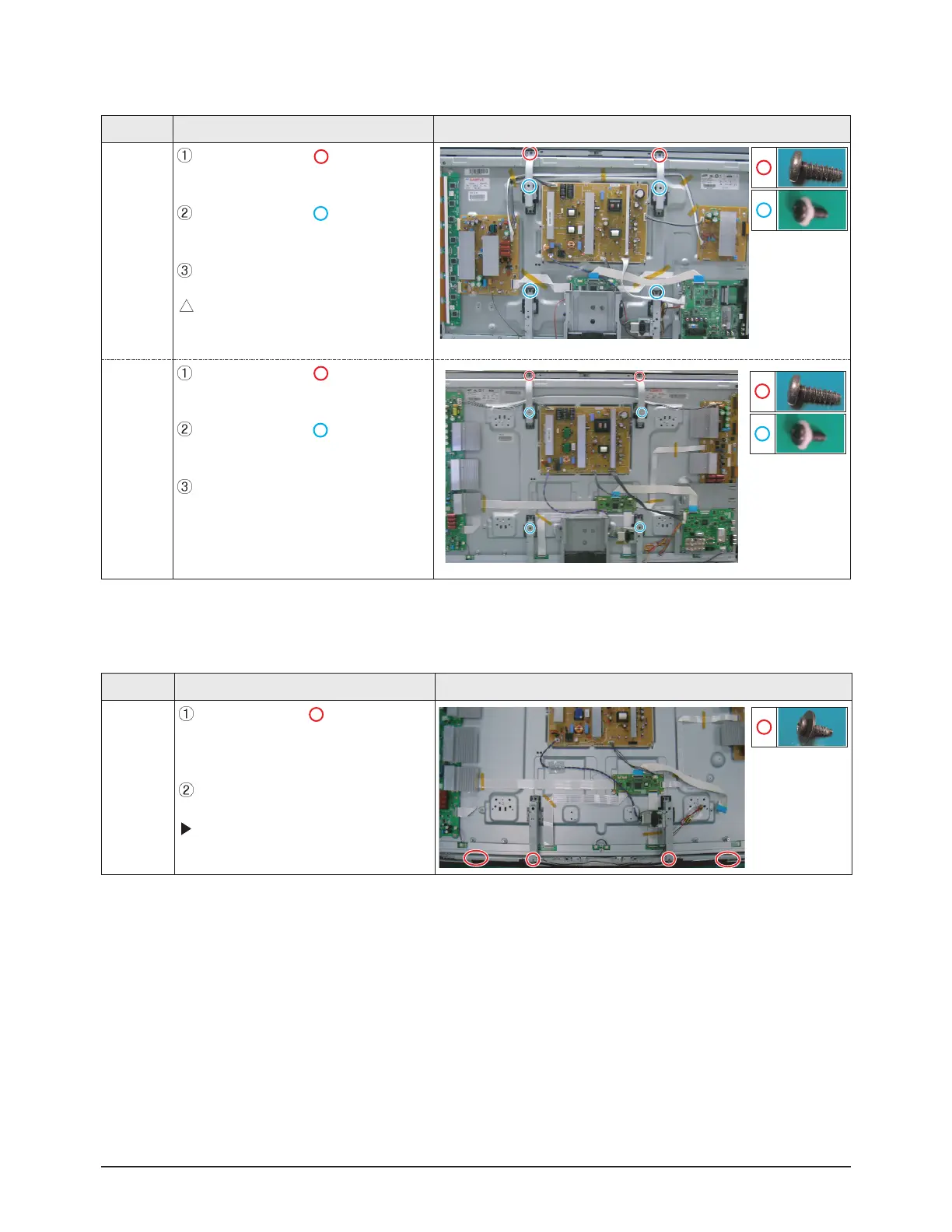

3-1-7 Separation of ASSY SPEAKER P
Part Name Description Description Photo
Speaker
Remove 4 screws.( )
: BH,+,WP,B,M4.0,L3,ZPC(BLK),
SWRCH18A
Remove the Speaker.
The photo is for 42".
50" is very similiar with 42".
Disassembly & Reassembly
3-4 Samsung Electronics
3-1-6 Separation of ASSY BRACKET P-WALL
Part Name Description Description Photo
42"
Wall
Bracket
Remove 2 screws. ( )
: BH,+,B,M4,L3,ZPC(BLK)
Remove 4 screws. ( )
: BH,+,S,M4,L10,ZPC(BLK)
Remove Wall Bracket.
: Please lay the PDP panel face down
on a soft surface when separating front
cover.
50"
Wall
Bracket
Remove 2 screws. ( )
: BH,+,B,M4,L3,ZPC(BLK)
Remove 4 screws. ( )
: BH,+,S,M4,L10,ZPC(BLK)
Remove Wall Bracket.
!
