Samsung Quantum 2.0 - Page 30

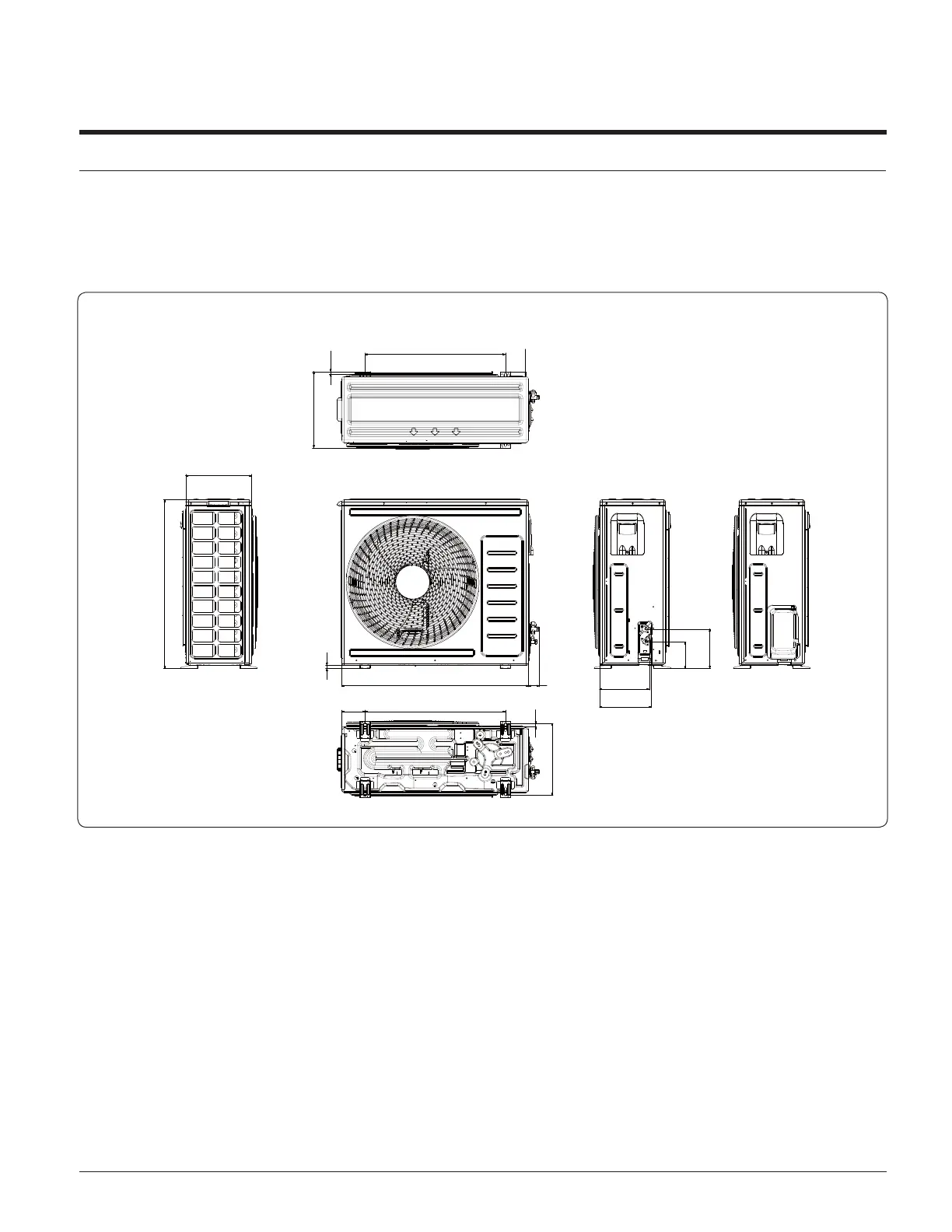

3. Dimensional Drawing
30
Quantum 2.0 : RXS24YBT (AR24TSFYBWKXCV)
Max Heat 2.0 : RXS18ACT (AR18TSFACWKXCV)
Wind-Free™ 2.0 : RXS18ABT (AR18TSFABWKXCV)
Unit: mm (inches)
310
798
[31-7/16]
661
23.8
10.4
359
880 49
15
109.5
661
15
[34-5/8]
[1-15/16]
[9/16]
[26-1/16]
[4-5/16]
[9/16]
[12-3/16]
[14-1/8]
[7/16]
[261-1/16]
[15/16]
[9-3/16]
[9-9/16]
[4-15/16]
[7-5/16]
338
[13-5/16]
233
240
126
186
