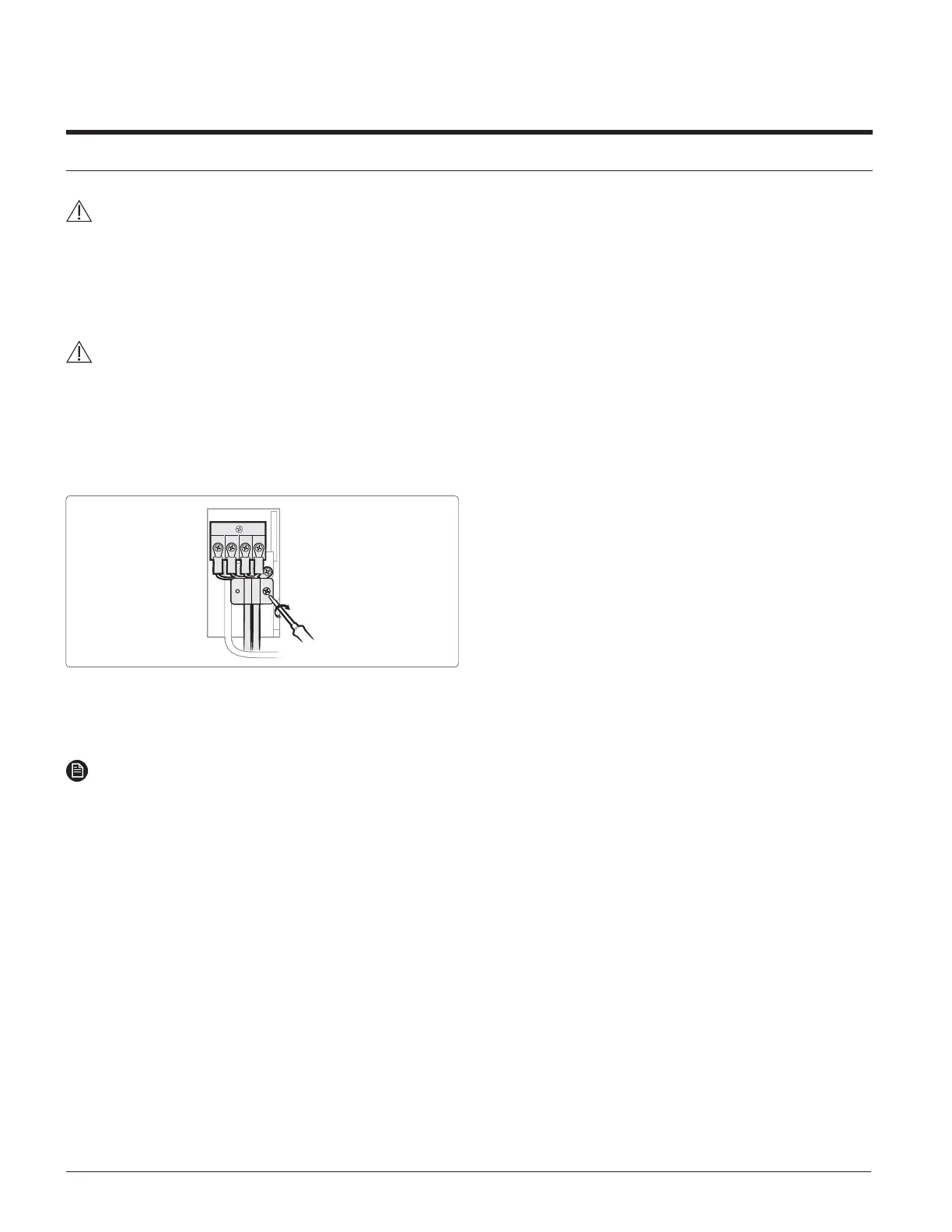

11. Installation
CAUTION
• Connect the wires firmly so that wires cannot be
pulledout. Loose wires can cause the connection to
overheat.
Each circular terminal must match the size of
itscorresponding screw in the terminal block.
CAUTION
• For the terminal block wiring, use a wire with a
ring terminal socket only. Regular wires without a
ring terminal socket may become a hazard as the
connections may loosen during operation.
2 Tighten the terminal block screw.
L1 L2 F1 F2
3 You determined the exit position for the piping bundle.
If using the left, right, or bottom exits, pass the cables
through the selected knockout.
NOTE
• Power supply cords of parts of appliances for outdoor
use shall not be lighter than polychloroprene sheathed
flexible cord. (Code designation IEC: 60245 IEC66/
CENELEC: H07RN-F, IEC: 60245 IEC57 CENELEC:
²ߢߧŵĘࣛࡥÃkAࡤߨߢߤߤߩÃkAߧߥࡑ²ߢߧǤǤ࣒ࣛ
• Power & Communication cable shall not exceed 98.42ft
(30 m).
