2 - 26

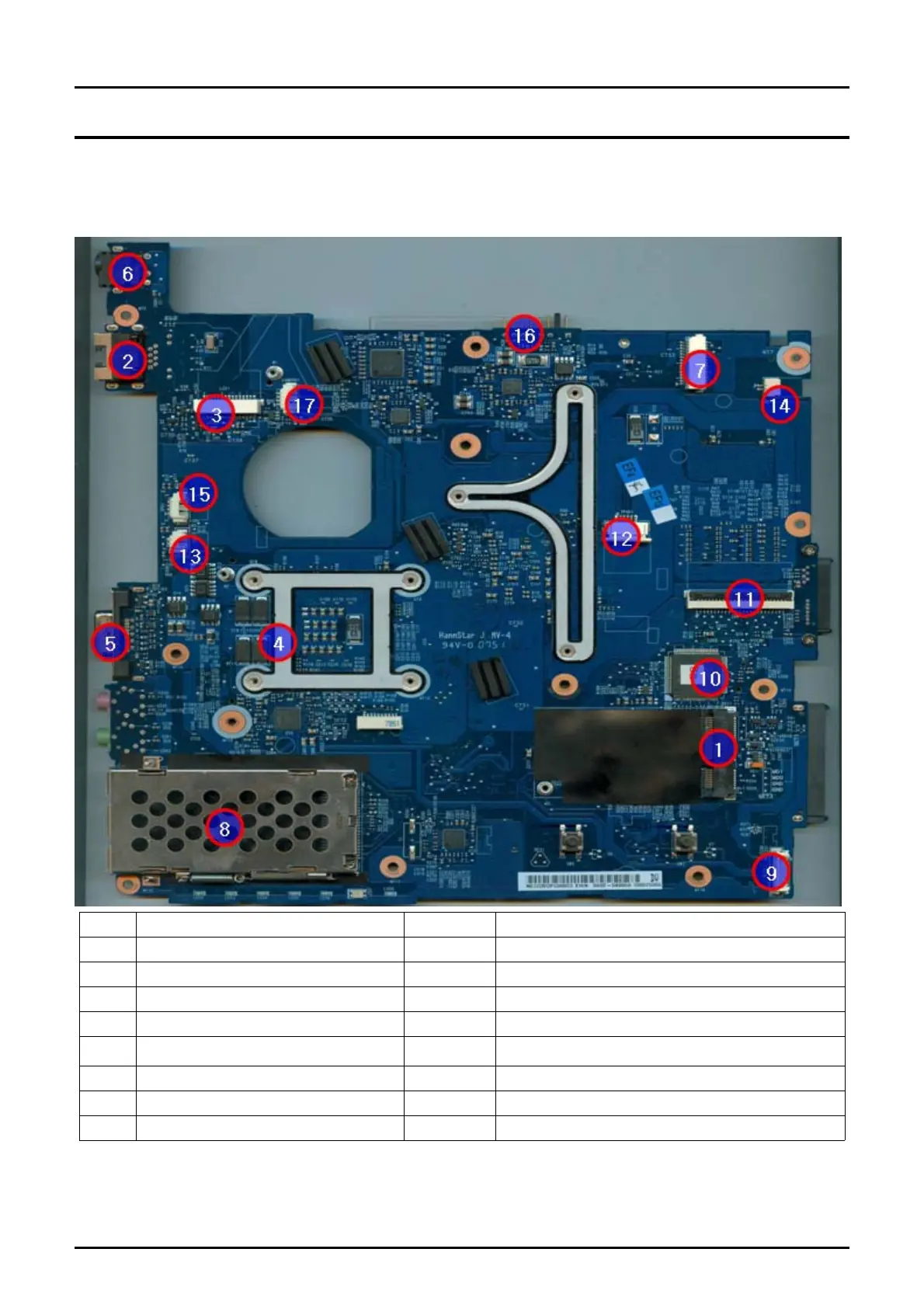

10) Description of Main board
10)-1. Top
1
WLAN Connect (J5)
2
RJ45 (LAN500)
3
LCD cable connector (LCD1)
4
Heatsink (Thermal heatsink)
5
VGA port (CRT500)
6
Adapter Connect (J501)
7
Sub-board Connect (J2)
8
Express Card Connector (J7)
9
Bluetooth Connector (BLT1)
10
MICOM (U9)
11 KBD FPC Connect (J3) 12 TouchPAD FFC Connect (TPAD1)
13
Inner MIC Connector (IMIC1)
14
Modem cable connect (MDC1)
15
Speaker connect (SPK1)
16
Battery Connector (BATT500)
17
Camera connect (CAMERA1)
18
- This Document can not be used without Samsung's authorization -
