Samsung RF263BEAESR User Manual

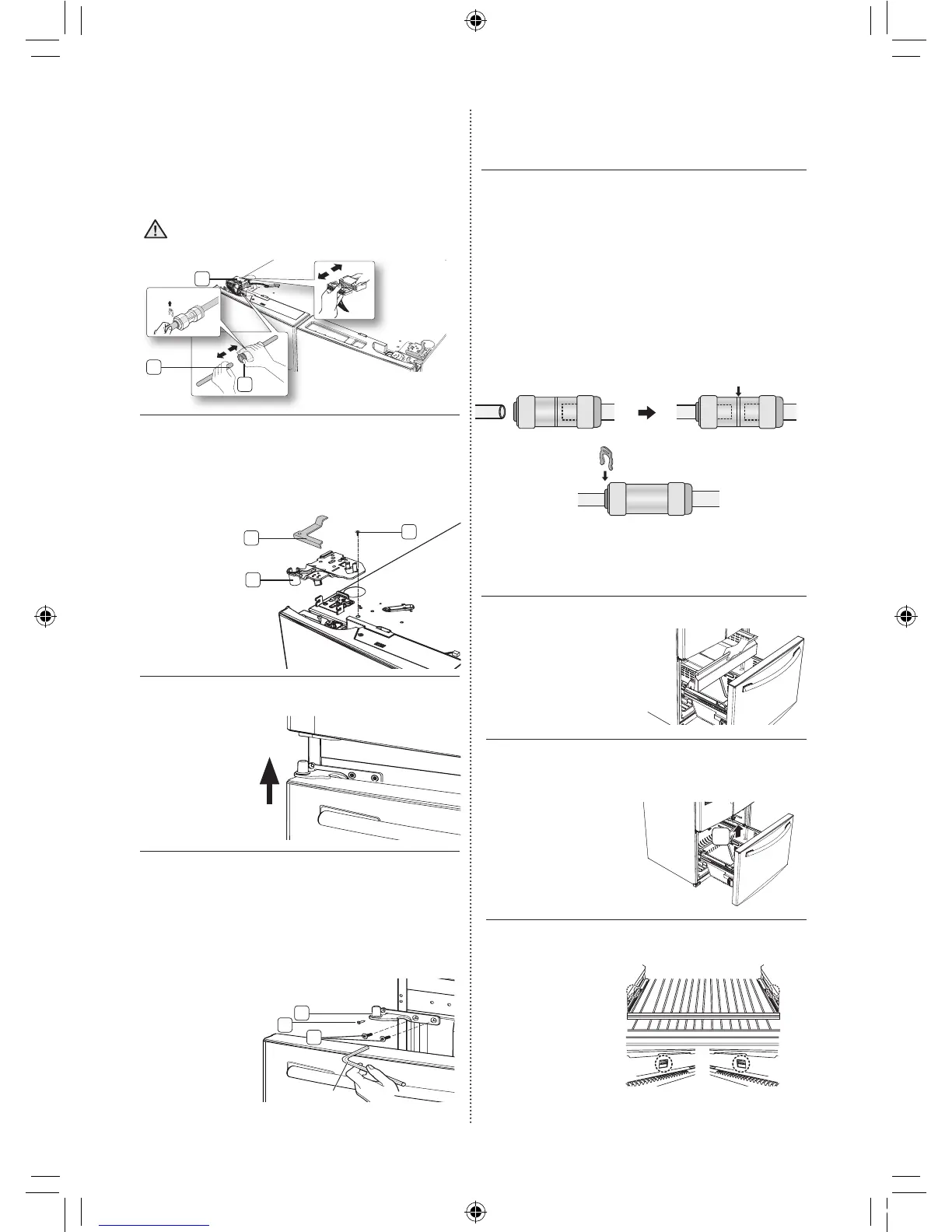

08_ setting up
Disconnect two connector ( 2. 2 ) on the left side
door. To remove the water coupler from the
hinge, twist and pull it from the hinge. Remove
the water line ( 3 ) while pressing the marked
part ( 4 ) of the water line coupler.
If a red clip is on the coupler, it must be
removed before removing the tube.
Pull and remove the hinge lever ( 3. 5 ) . Remove
the ground screw ( 6 ) attached to the upper
left door hinges with a philips screwdriver (+).
Remove the upper left and right door hinges
( 7 ).
Lift the door straight up to remove.4.
Remove the screw (5. 8 ) attached to the
lower left and right door hinges with a philips
screwdriver (+). Remove the 2 hex head bolts
( 9 ) attached to the lower left and right door
hinges with an allen wrench (3/16”). Remove
the lower left and right door hinges ( 10 ).
REATTACHING THE
REFRIGERATOR DOORS
To reattach the fridge doors after you have moved
the fridge to its final location, assemble parts in
reverse order.
The Water Line must be fully Inserted to the 1.
center of transparent coupler to prevent water
leakage from the dispenser.
Insert2.
the clip in the install pack and check that it
holds the line firmly.
DISASSEMBLE THE FLEX DOOR
Take out the upper drawer by lifting it up.1.
Take out the lower basket ( 2. 1 ) by lifting the
basket up from the rail system.
Press the fixing hook of rail system. 3.
CAUTION
2
3
4
Red Clip
(1/4")
5
6
7
Allen wrench
10
8
9
1
Center of transparent
coupler
clip A (1/4”)
(6.35mm)
DA68-02601A(EN+FR+ES)-0.2.indb 8 2012.3.31 9:49:38 AM

Samsung RF263BEAESR Specifications

General

Style	French Door
Color	Stainless Steel
Number of Doors	3
Total Capacity	5 cu ft
Refrigerator Capacity	13 cu ft
Freezer Capacity	8 cu ft
Number of Refrigerator Shelves	5 Tempered Glass Spill-Proof Shelves: 2 Slide-Out
Number of Refrigerator Bins	-
Humidity Controlled Crispers	2
Number of Freezer Shelves/Baskets	1 bin with 2 dividers
Refrigerator Temperature	-
Freezer Temperature	-
(-14°C)	-
Refrigerator Special Features	Interior Light
Freezer Special Features
Defrost System	-
Noise level	-
Refrigerant	-
Energy Class	-
Annual Energy Consumption	637 kWh
Voltage	-
Frequency	-
Current	-

Weight and Dimensions

Depth	24 in
Height	59-7/8 in
Width	23-1/2 in
Net Weight	124 lb
