Installation
English20
Installation

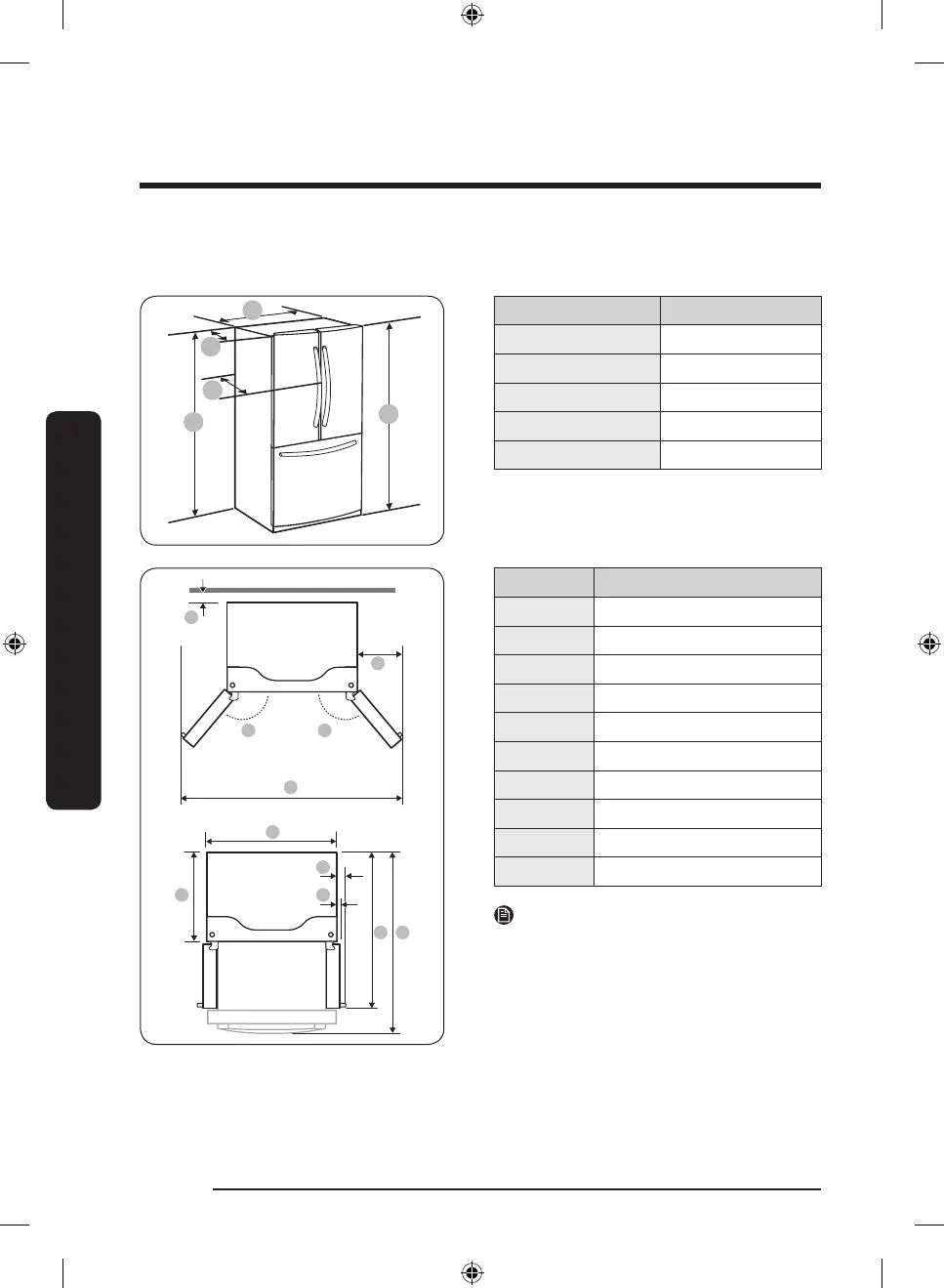

Clearance
See the following gures and tables for space requirements for installation.
C
D
E
B
A
Model RF28*
Depth “A” 32
7
/8" (836 mm)
Width “B” 35
3
/4" (908 mm)
Height “C” 68
7
/8" (1749 mm)
Overall Height “D” 70" (1777 mm)
Depth “E” 35
3
/8" (898 mm)
01
02 02
04
03
05
06
09 10
07
08
Model RF28*
01 2" (50 mm)
02 130°
03 62
2
/8" (1581 mm)
04 13
2
/8" (337 mm)
05 35
3
/4" (908 mm)
06 28
7
/8" (735 mm)
07 3
5
/8" (93 mm)
08 1
7
/8" (47 mm)
09 47
2
/8" (1201 mm)
10 51
7
/8" (1318 mm)
NOTE
The measurements in the table above
may differ slightly from the actual
measurements, depending on the
measuring and rounding method.
