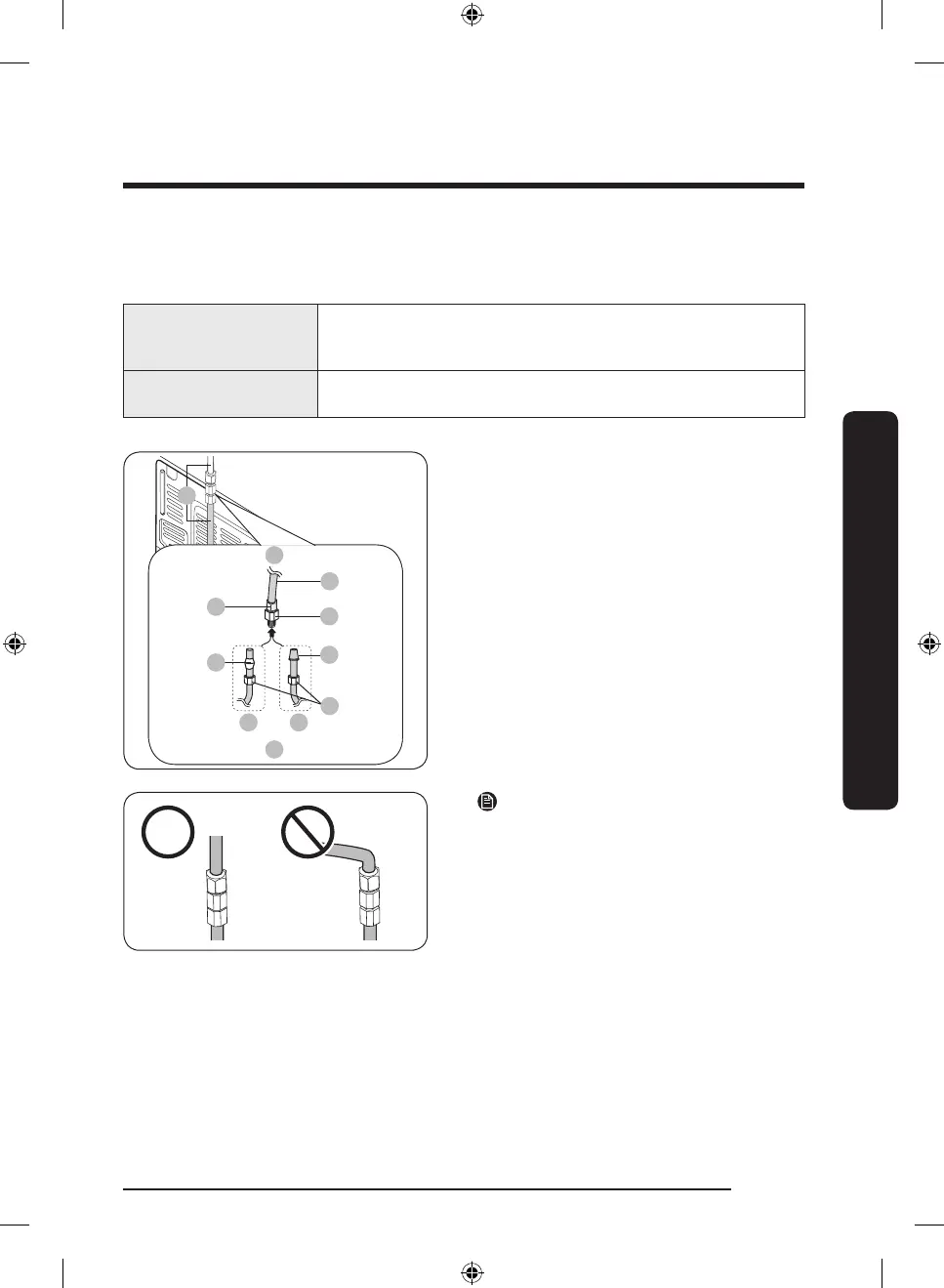

Connect the water supply line to the refrigerator
There are several items you must purchase to complete this connection. You may nd these
items sold as a kit at your local hardware store.
Copper Tubing
•
1
/4" copper tubing
•
1
/4" compression nut (1 pc)
• Ferrule (2 pc)
Plastic Tubing
•
1
/4" plastic tubing Molded end (Bulb)
•
1
/4" compression nut (1 pc)
A. Refrigerator
B. Household water supply line
C. Water Line: must be kept straight.
01 Compression Nut (
1
/4") (Assembled)
02 Ferrule (Not supplied)
03 Copper tubing (Not supplied)
04 Plastic Tubing (Assembled)
05 Compression Fitting (Assembled)
06 Molded end (Bulb)
07 Compression nut (
1
/4") (Not supplied)
08 Plastic Tubing (Not supplied)
NOTE
If you have to relocate the refrigerator
after connecting the water line (C), make
sure the joined section of the water line is
straight.
