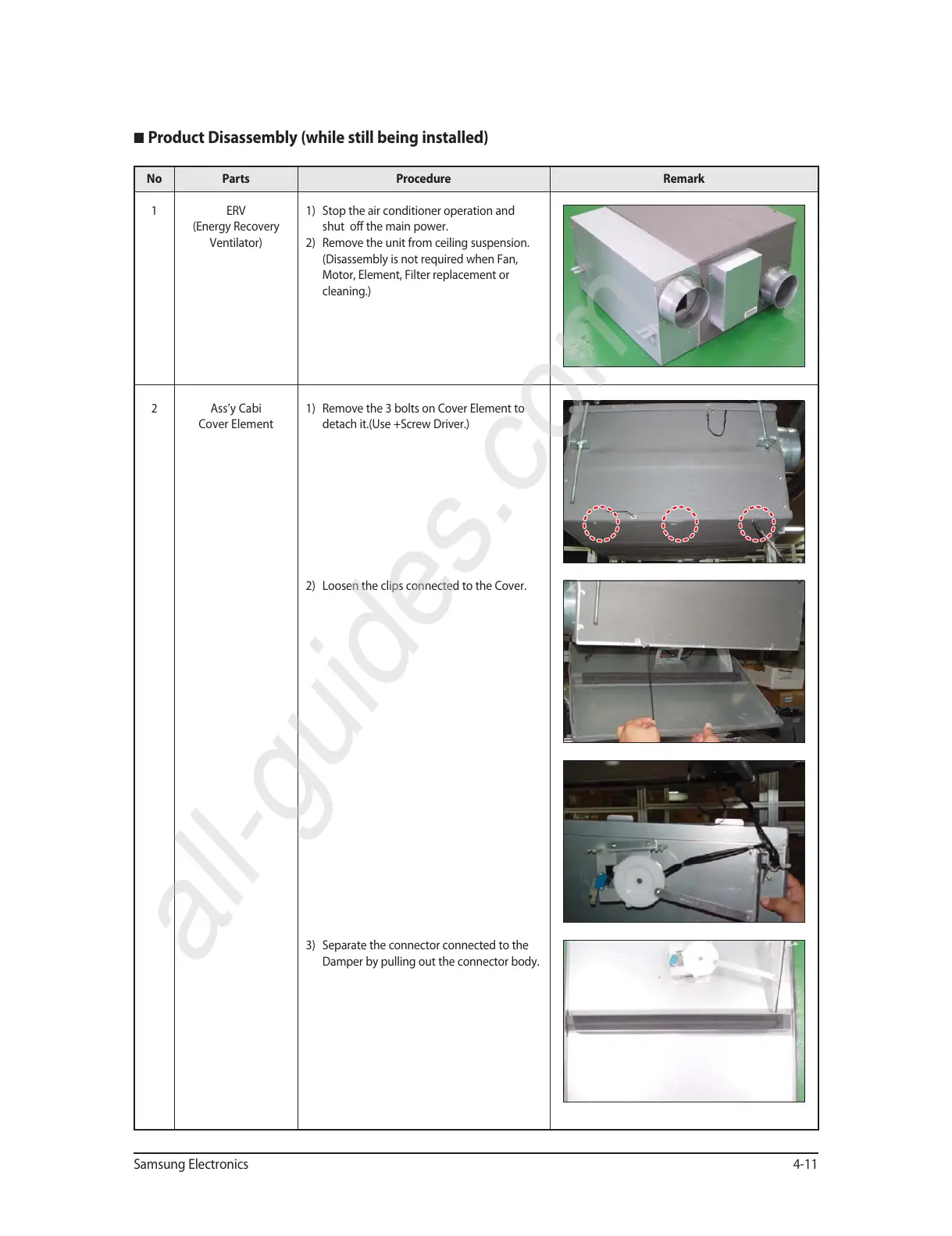

Samsung Electronics 4-11
No Parts Procedure Remark
1 ERV
(Energy Recovery
Ventilator)
1) Stop the air conditioner operation and
shut off the main power.
2) Remove the unit from ceiling suspension.
(Disassembly is not required when Fan,
Motor, Element, Filter replacement or
cleaning.)
2
Ass’y Cabi
Cover Element
1) Remove the 3 bolts on Cover Element to
detach it.(Use +Screw Driver.)
2) Loosen the clips connected to the Cover.
3) Separate the connector connected to the
Damper by pulling out the connector body.
QProduct Disassembly (while still being installed)
To Next Page
