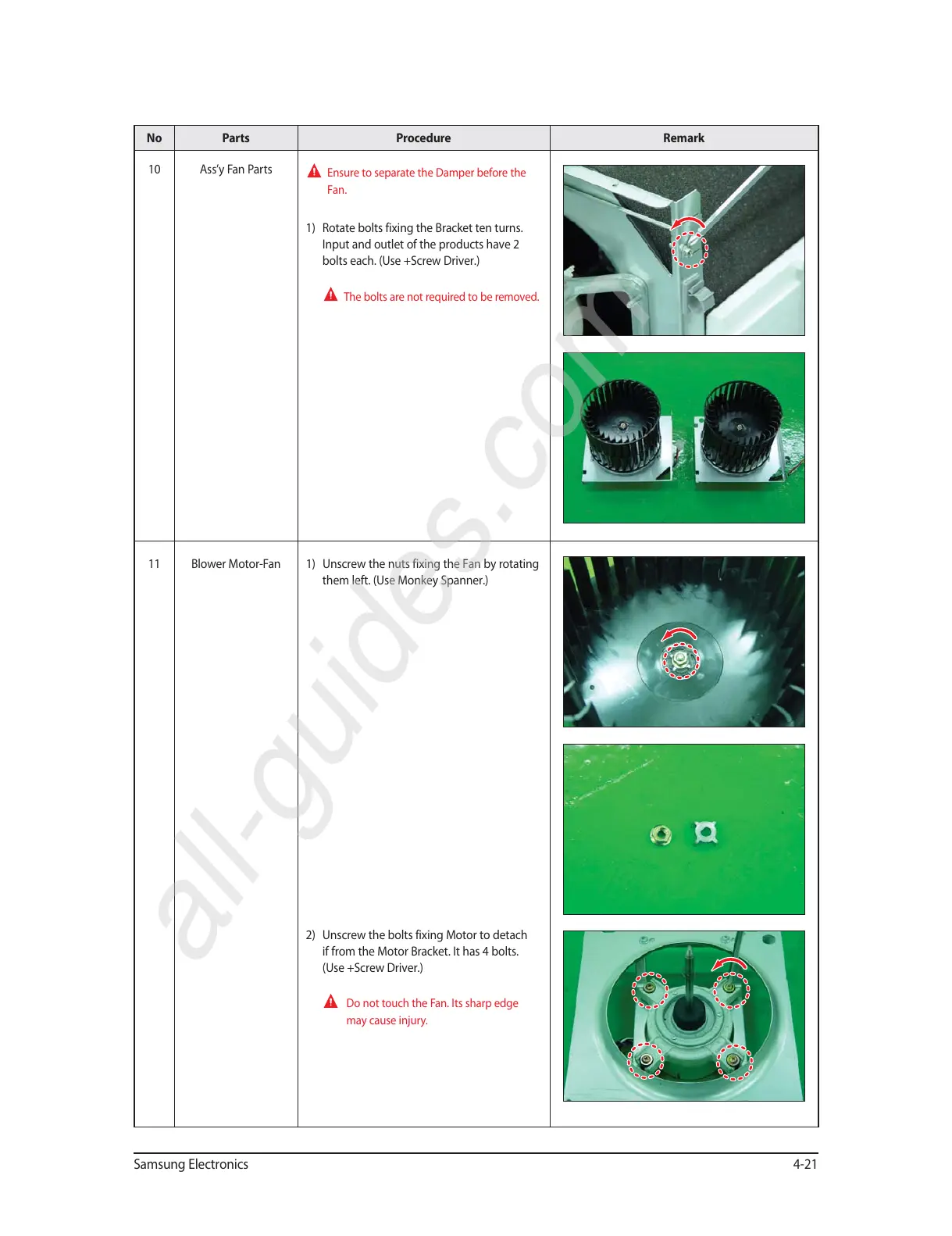

No Parts Procedure Remark
10 Ass’y Fan Parts
Ensure to separate the Damper before the
Fan.
1) Rotate bolts fixing the Bracket ten turns.
Input and outlet of the products have 2
bolts each. (Use +Screw Driver.)
The bolts are not required to be removed.
11 Blower Motor-Fan 1) Unscrew the nuts fixing the Fan by rotating
them left. (Use Monkey Spanner.)
2) Unscrew the bolts fixing Motor to detach
if from the Motor Bracket. It has 4 bolts.
(Use +Screw Driver.)
Do not touch the Fan. Its sharp edge
may cause injury.
To Next Page
