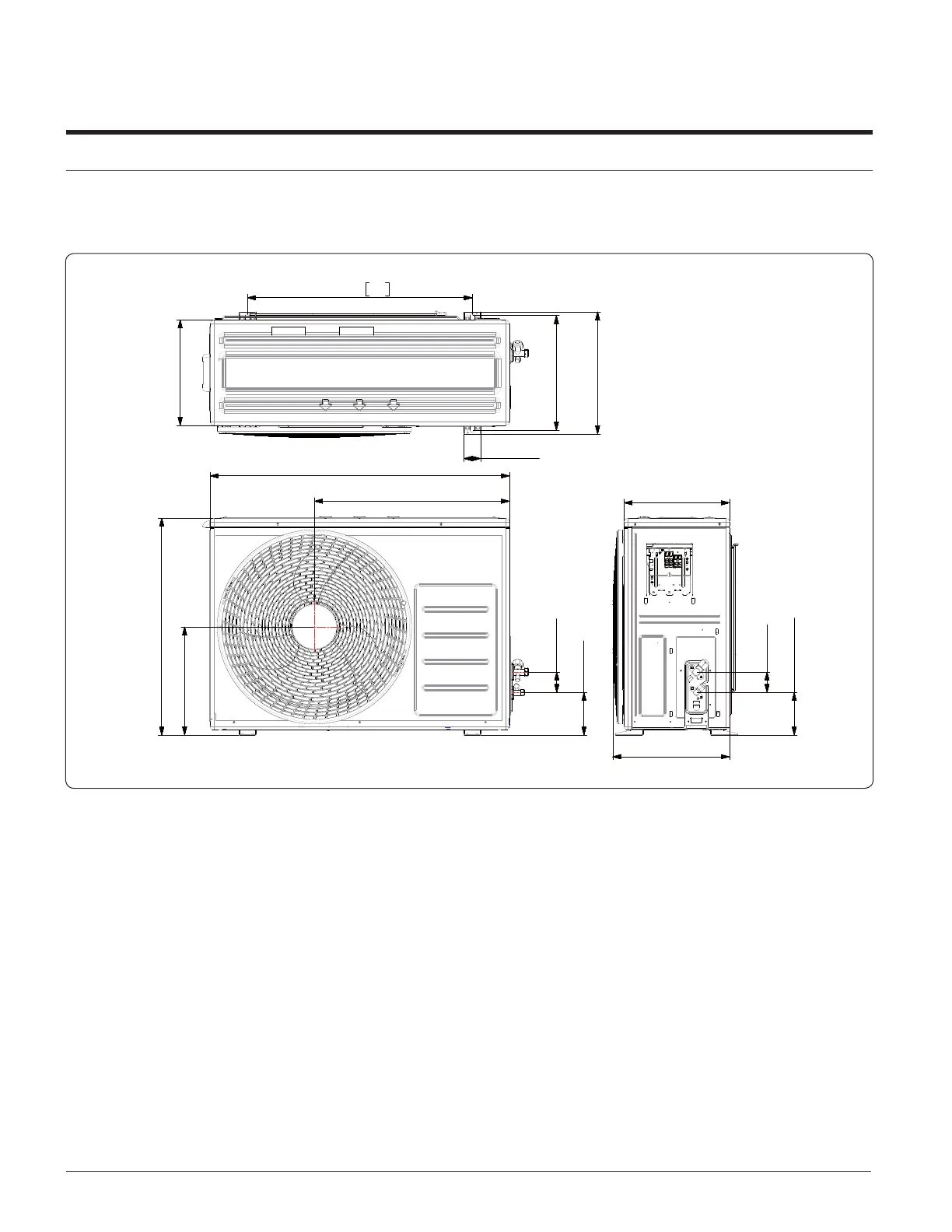

3. Dimensional Drawing
Quantum 2.0 : RXS18YBT (AR18TSFYBWKXCV)
Unit: mm (inches)
310.0
880.0
638.0
318.0
573.3
125.2
60.3
661.0 26"
50.0
338.2 359.0
310.0
60.3
125.2
343.1
[12 3/16]
[13 3/16]
[14 1/8]
[1 15/16]
[34 5/8]
[22 9/16]
[25 1/8]
[12 1/2]
[2 3/8]
[4 15/16]
[12 3/16]
[2 3/8]
[4 15/16]
[13 1/2]
Outdoor units
