Installation
English16
Installation
01 Freezer shelves 02 Freezer drawer * 03 Auto IceMaker
04 Freezer door bins 05 Fridge shelves 06 Feature panel
07 Fridge drawer 08 Fridge door bin 09 Water lter **
* Applicable models only
NOTE
• The design of the egg container may differ with the model.
CAUTION
For normal models, do not change the position of the freezer shelves. Freezer shelves
have different lengths, and if you change the position, you may damage the product when
closing the door.
Step-by-step installation
STEP 1 Select a site
Site requirements:
• Solid, level surface without carpeting or ooring that may obstruct ventilation
• Away from direct sunlight
• Adequate room for opening and closing the door
• Away from a heat source
• Room for maintenance and servicing
• Temperature range: between 50 °F (10 °C) and 109 °F (43 °C)

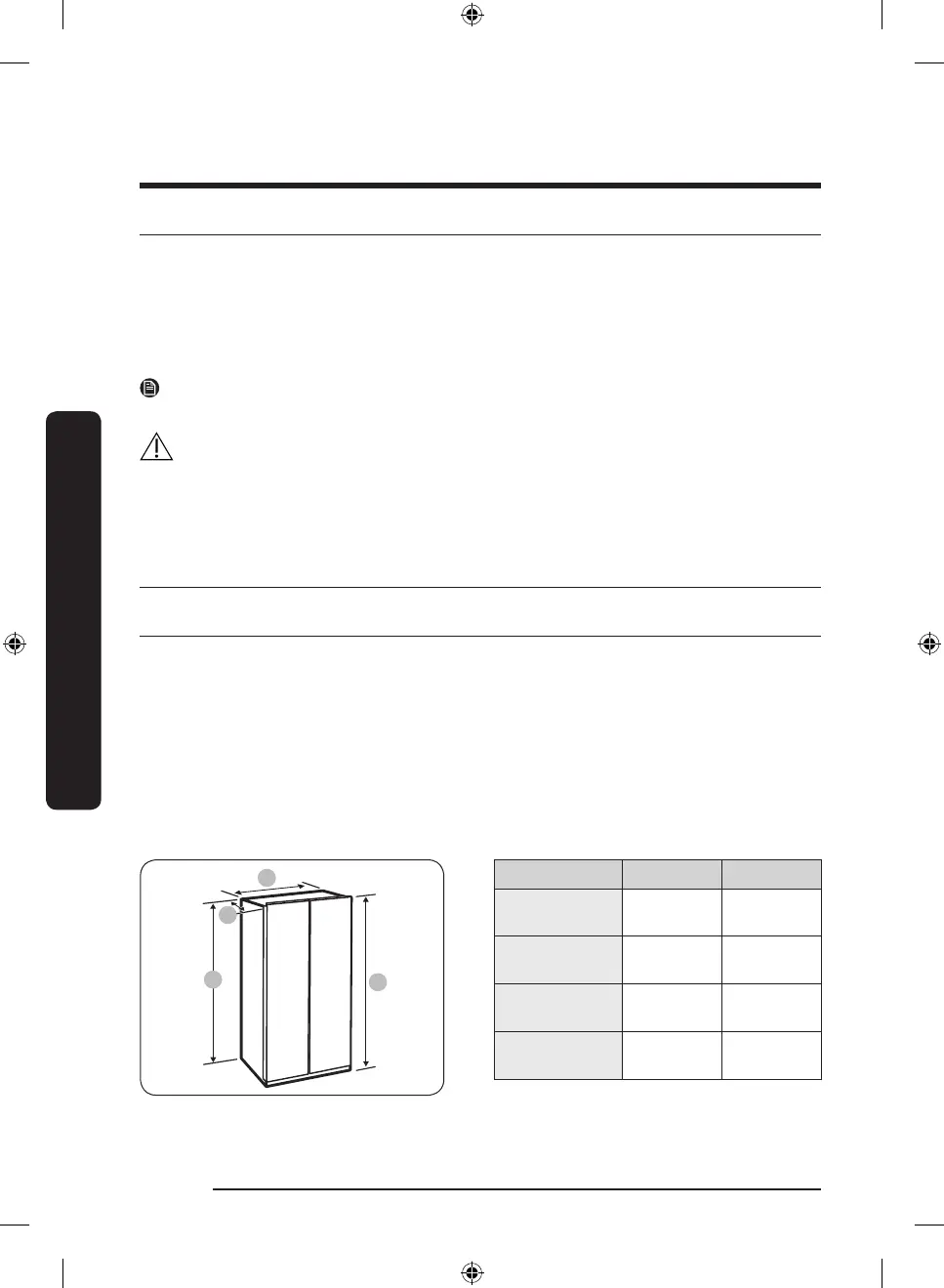

Clearance
See the pictures and table below for space requirements for installation.
RS28* RS23*
Depth "A"
33 1/2"
(851 mm)
28 19/32"
(726 mm)
Width “B”
35 7/8"
(912 mm)
35 7/8"
(912 mm)
Height “C”
68 5/8"
(1744 mm)
68 5/8"
(1744 mm)
Overall Height
“D”
70 1/16"
(1780 mm)
70 1/16"
(1780 mm)
Untitled-1 16 2020-12-31 2:29:11
