Installation
English28
Installation
Clearance

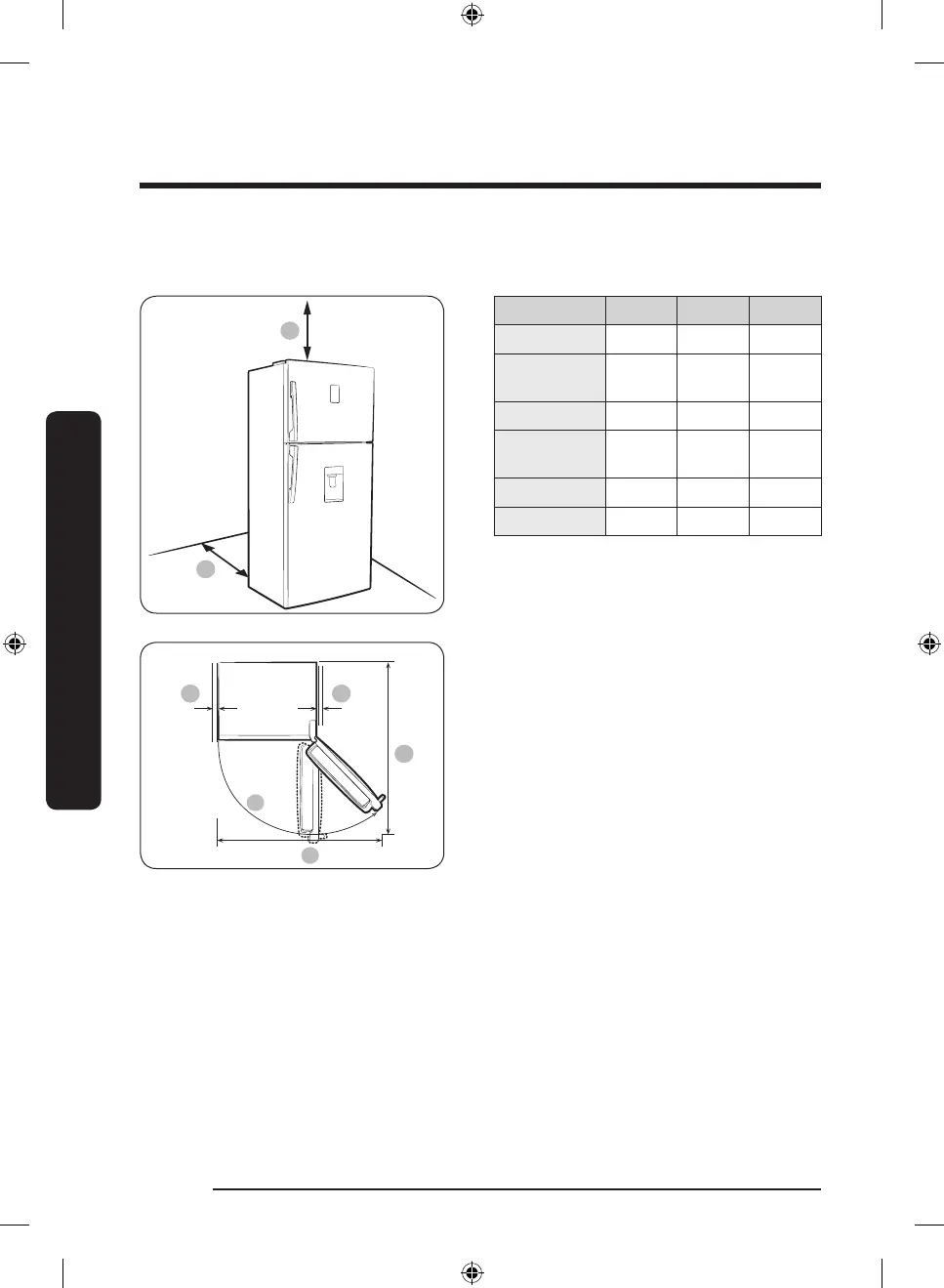

See the pictures and table below for space requirements for installation.
01
02
Model A B C
RT38 1275 1001 115°
RT38 (Glass
Door Only)
1290 1001 115°
RT35 1275 1001 115°
RT35 (Glass
Door Only)
1290 1001 115°
RT32 1221 1040 135°
RT29 1221 1040 135°
(unit: mm)
01 100 mm
02 50 mm
03 at least 50 mm
