2-1
2. Disassembly and Reassembly

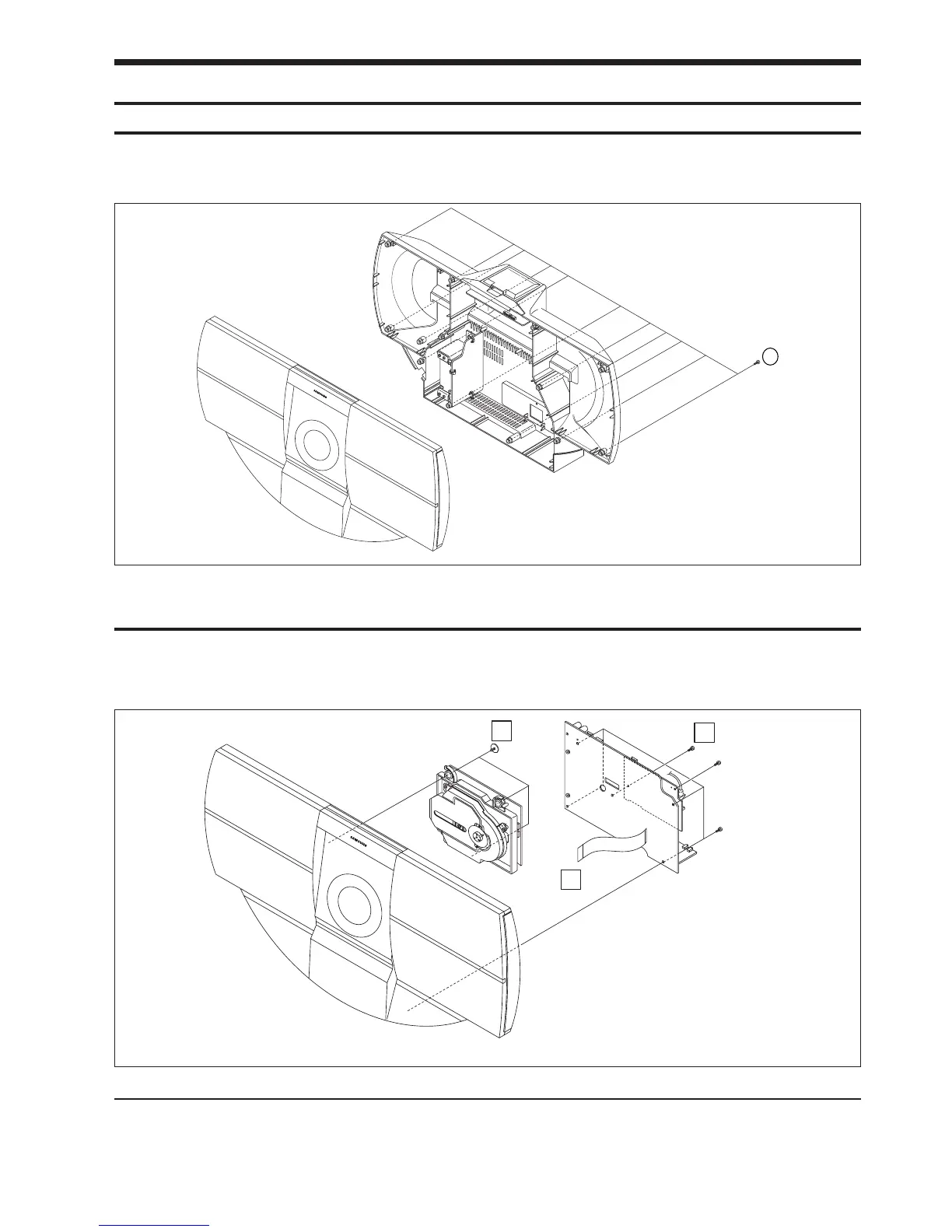

2-1 Front Cabinet
1. Remove 13 screws of ! of its rear part.(1 screw of Antenna)
2. Remove Front Cabinet to frontward.
1
Fig 2-1
1. Remove 6 screws of B its rear part
2. Remove the connect wire of C,and remove Main-PCB ASS’Y to backward.
3. Remove 3 screws of A its rear part ,and remove CD-Mecha ASS’Y to backward.
2-2 Main-PCB ASS’Y AND CD-MECHA ASS’Y
A
B
C
Samsung Electronics
Fig 2-2
