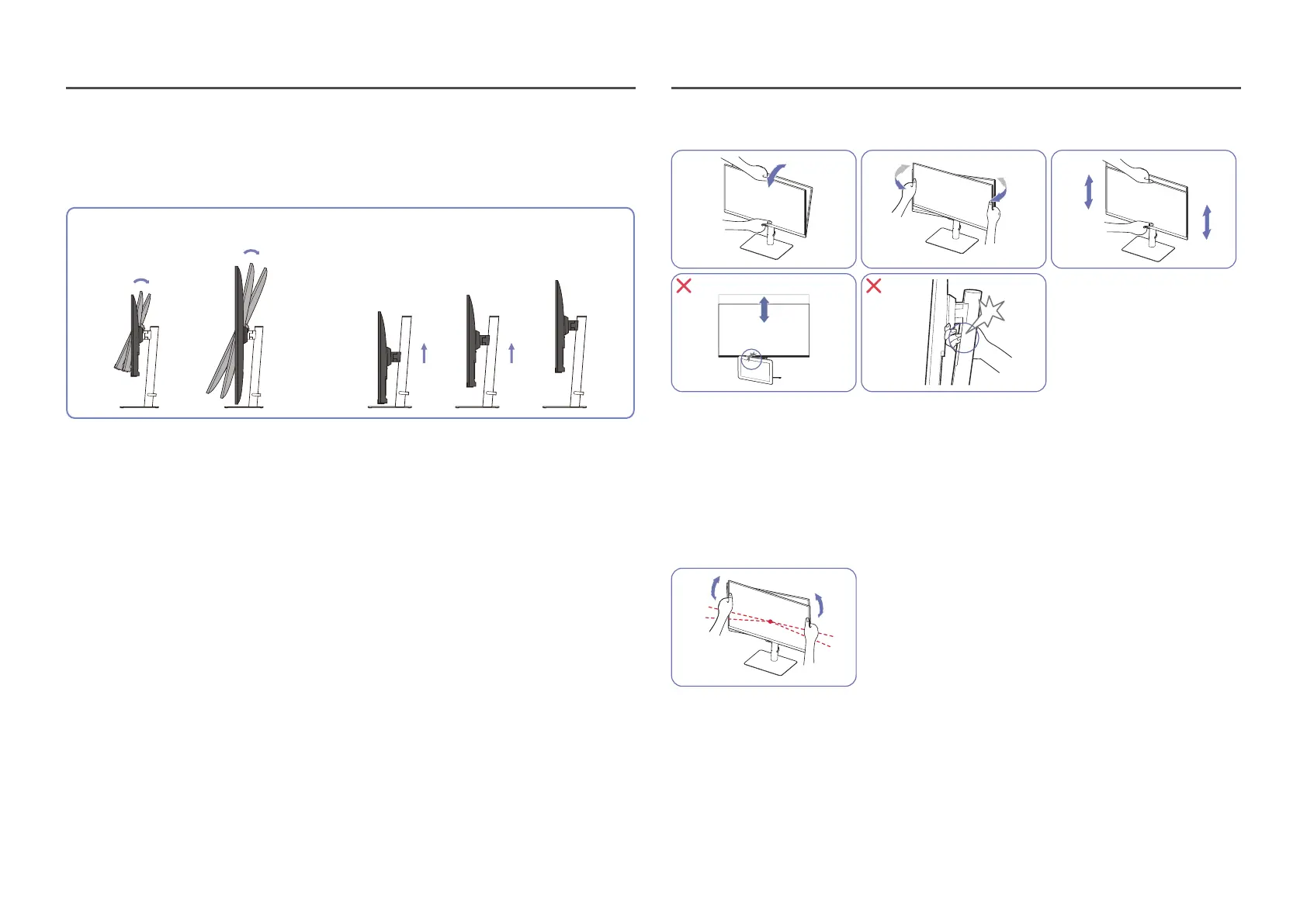

Adjusting the Product Tilt and Height
―
The colour and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
-2.0° (±3.0°) ~ 25.0° (±3.0°)
0 ~ 120.0 mm (±5.0 mm)
• The product tilt and height can be adjusted.
• Hold the top centre of the product and adjust the height carefully.
• The height adjustment has a certain tolerance. Stay within the tolerances when adjusting the
height of the product.
Caution
• Grasp the left and right sides of the monitor and adjust the swivel.
• Grasp the centre of the monitor and adjust the height.
• Do NOT hold the stand moving part with your hand when leveling the screen. Your hand may get
hurt.
• Do not put an object around the lower part of the product. The product or object may get damaged
when adjusting the product height.
After adjusting the product tilt and height, if the screen is not level, take the following actions.
+1˚
-1˚
• Hold the bezel at both side edges and adjust the monitor angle until the screen becomes level.
(Be careful not to directly hold the LCD display.)
• The monitor angle can be adjusted from -1° to +1°.
