26 – DIGITAL COLOR CAMERA
How to use OSD Menu
COMMUNICATION
eCOMMUNICATIONf
PROTOCOL
SAMSUNG
BAUD RATE 9600
ADDRESS 0
The COMMUNICATION menu is used to confi gure
the settings regarding RS-485 communications.
Use the rear panel of the camera to connect to
RS-485.

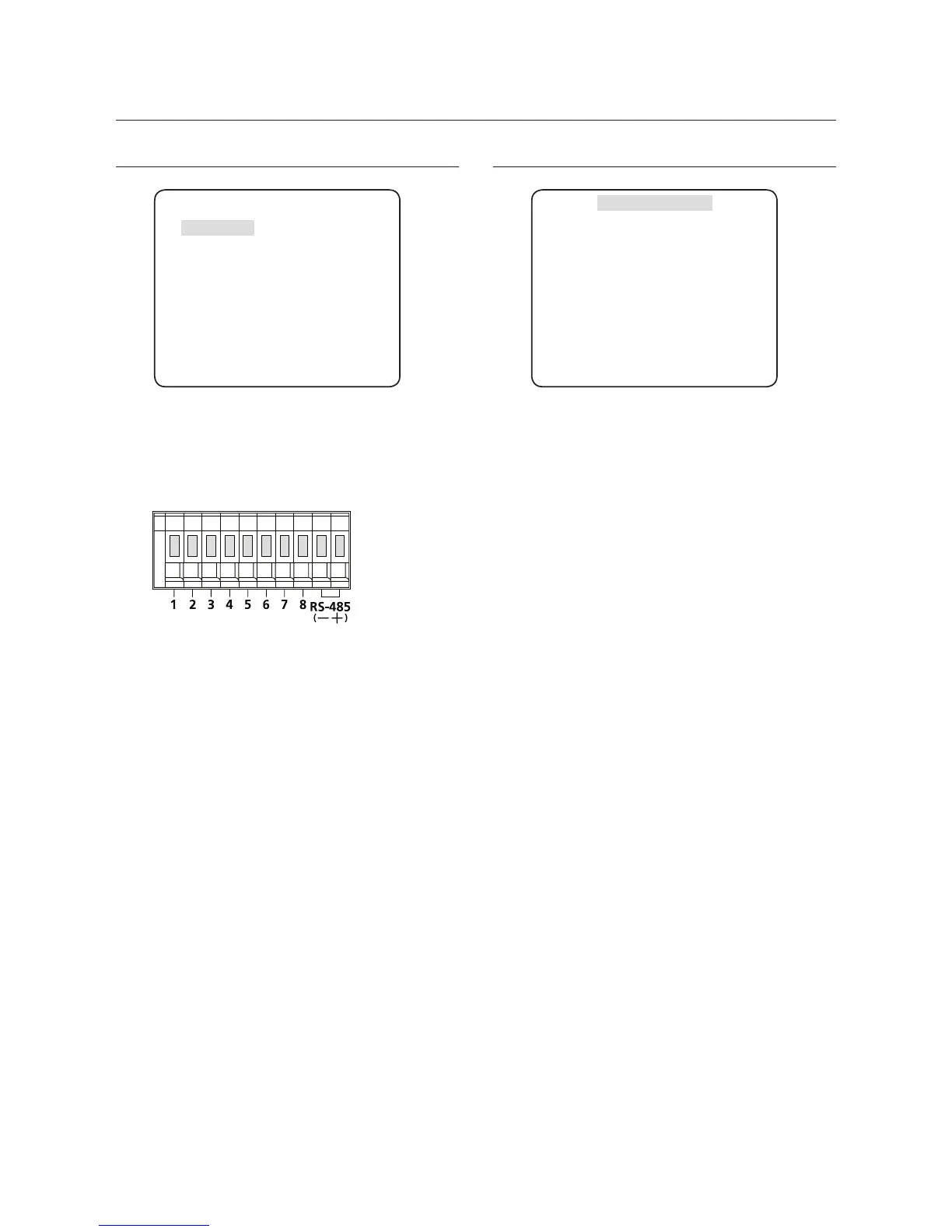

[Camera I/O Connector]
Use the
cdef
switch to specify the protocol,
baud rate and address (0~255) for communications.
PROTOCOL
Select a communication protocol.
BAUD RATE
Select a baud rate.
Note :
The baud rate differs, depending on the specifi ed
protocol.
ADDRESS
[0~255]
You must specify a unique address for each
camera in the same RS-485 network.
To control a specifi c camera, you must match the
address of the camera with that of the DVR or the
controller.
❖
❖
–
❖
SYSTEM INFORMATION
eSYSTEM INFOf
TYPE 3_BOX_NOR_N
PROTOCOL
SAMSUNG
ADDRESS 1
BAUD RATE
9600
SERIAL NO.
000000000000000
CAMERA VER. v2.00_100501
You can view the system information including the
protocol, address, baud rate, serial number, camera
version, and EEP version.
