Samsung SCL300 - Ass’y Case Left Removal

Samsung Electronics 4-5
Disassemblr and Reassembly
2
Pull out the case left
assembly in the direction
of arrow .
1
1
Remove 5 screws.
1
1
1
A
A
Disconnect wire
of 15 pins.
Disconnect wire
of 10 pins.

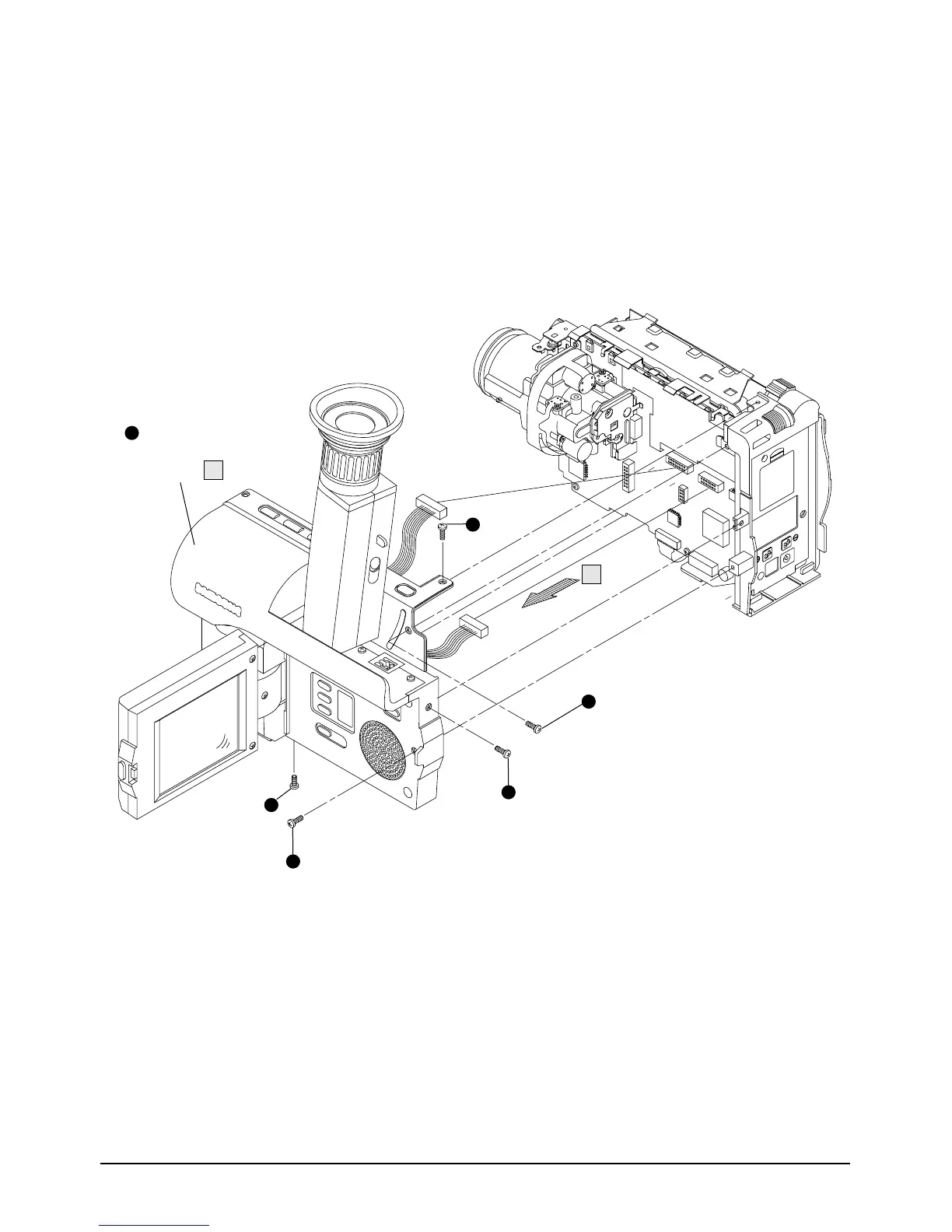

4-1-5 Ass’y Case Left Removal
Fig. 4-5 Ass’y Case Left Removal
