Samsung SCL300 - Ass’y Case Right Removal

Samsung Electronics4-4
Disassemblr and Reassembly
4-1-4 Ass’y Case Right Removal
1
Remove 4 screws.
Pull out the unit case
in the direction of arrow .
Disassemble after turning
knob to be "LOCK".
1
1
2
A
A

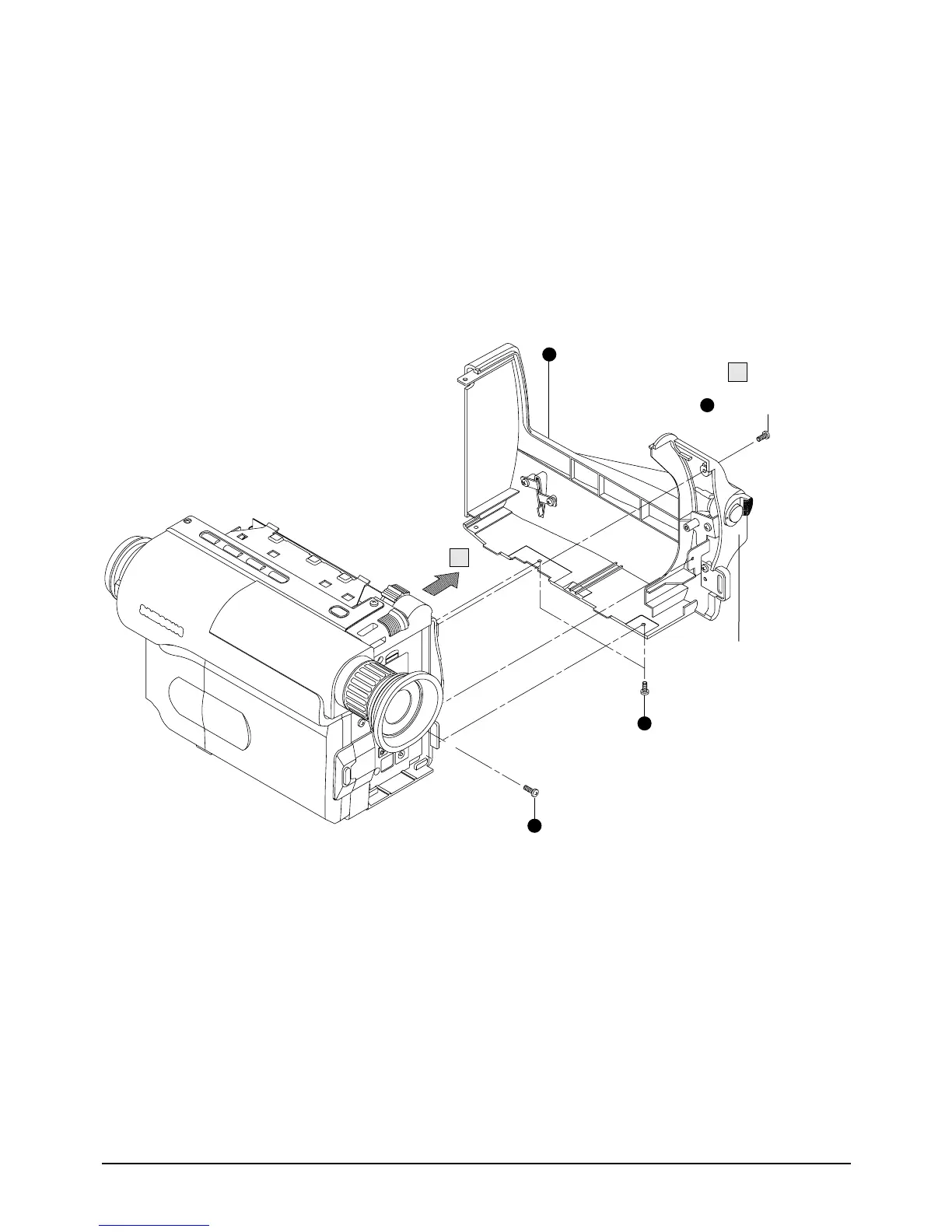

Fig. 4-4 Ass’y Case Right Removal
