Samsung Electronics 4-3
Disassemblr and Reassembly
1
1
1
Remove 4 screws.
3
Disconnect the FPC
or wire from the audio block
of MAIN PCB.
(Ass'y front for
EIS models)
(Ass'y front for
Non-EIS models)
2
Pull out the ass'y front in
the direction of arrow , .
B
A
A B

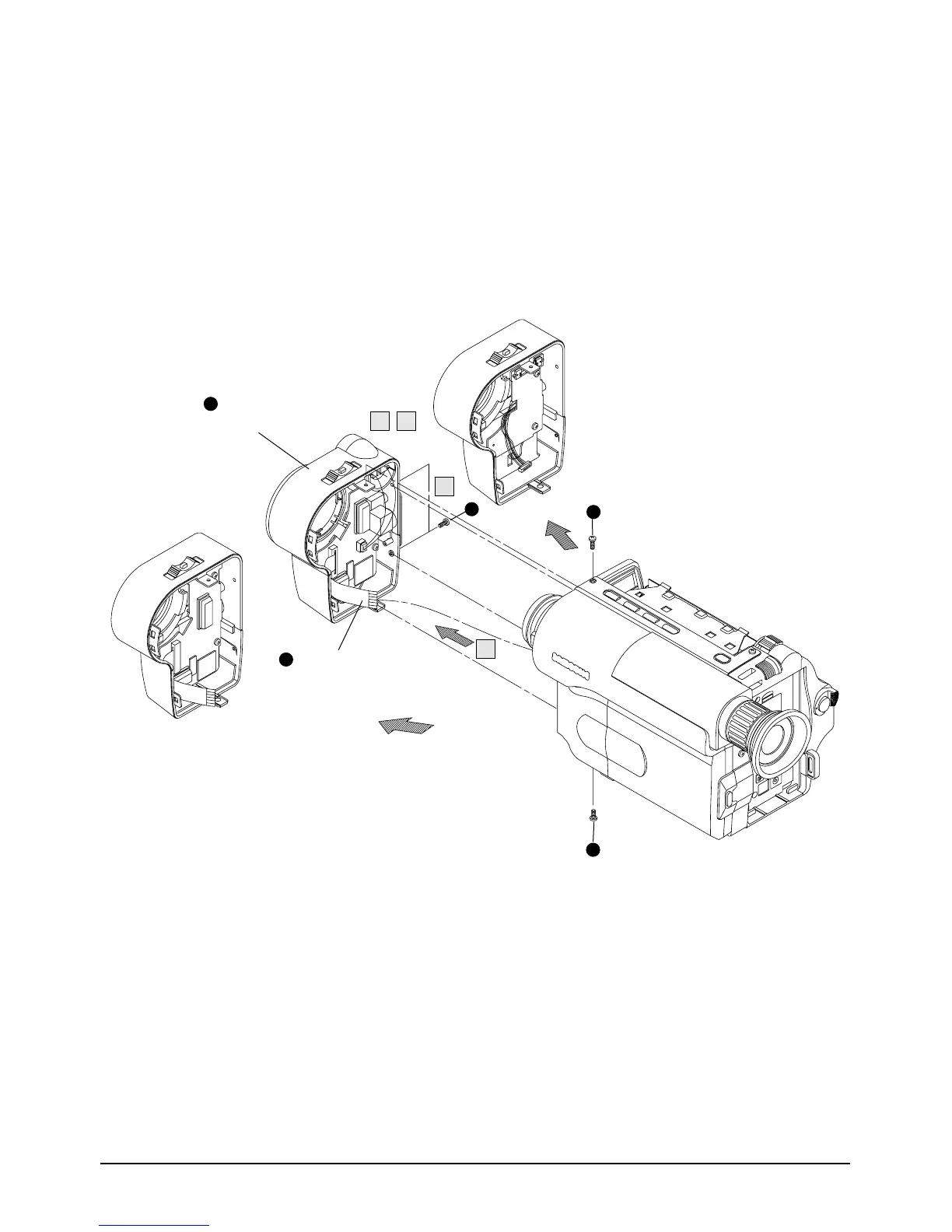

4-1-3 Ass’y Front Removal
Fig. 4-3 Ass’y Front Removal
