Samsung SCL300 - Alignment and Adjustment; Mechanism Alignment

Samsung Electronics 5-1
5. Alignment and Adjustment
5-1. Mechanism Alignment
¥ Refer to mechanical manual ÒDE-6 (AD68-30200A)Ófor the adjustment and checks of mechanism section.
Test Points for Mechanism Alignment
1. PB RF - Pin 11 of CN605
2. Head Switching (Trigger) - Pin 9 of CN605
14
12
10
8
6
4
2
13
11
9
7
5
3
1
PB RF
Head Switching - Trigger
CN605

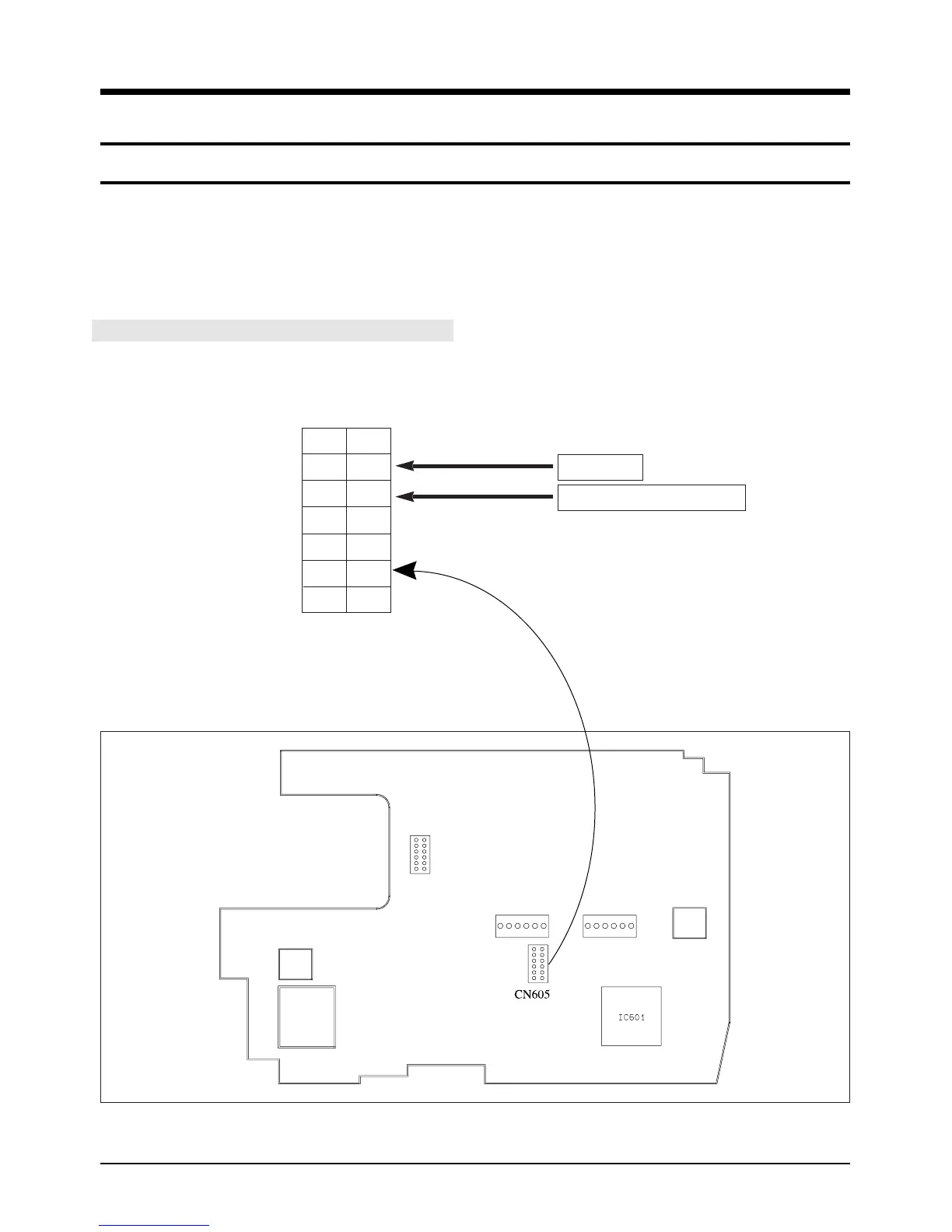

Fig. 1 Test point
Fig. 2 Test location of test point
