Samsung SCL810 - Page 3

Samsung Electronics1-2

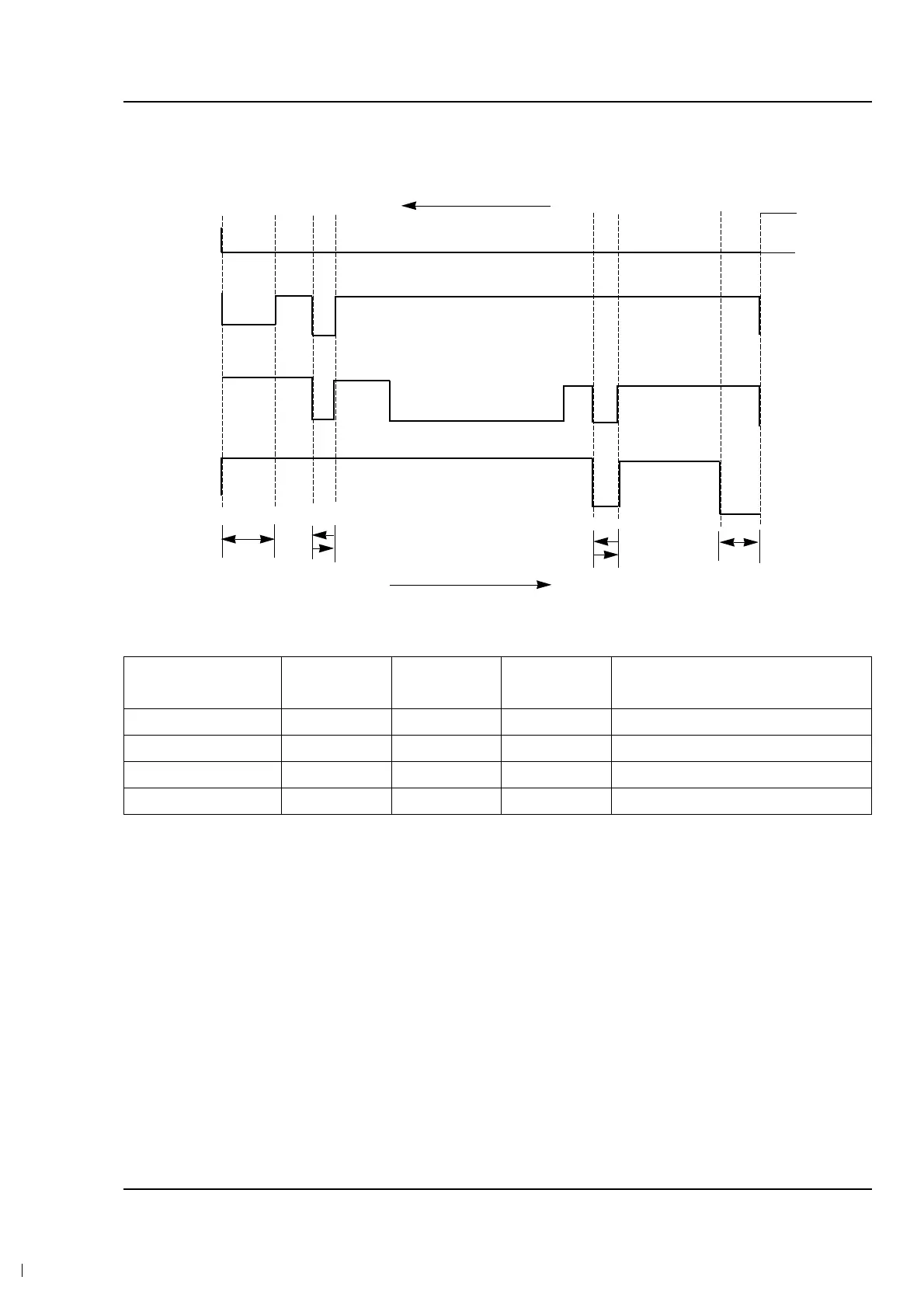

Alignment and Adjustment
POSITION
IC601 IC601 IC601
ACTION MODE
157PIN 158PIN 159PIN
L H H EJECT
L L H UNLOADING STOP
H L L LOADING STOP
H H L PLAY, FF, REW, STILL....
EJECT
UNLOADING STOP
LOADING STOP
PB
IC601
158PIN
GROUND
IC601
159PIN
COMMON
IC601
157PIN
OPEN
EJECT
PLAY
LOADING
STOP
UNLOADING
STOP
LOADING
UNLOADING
