Samsung SCL810 - 1-1. Mechanism Alignment

• Refer to mechanical manual “DE-10 (AD68-00420H)”for the adjustment and checks of mechanism section.
• The location of test point (See Fig.1)
Samsung Electronics 1-1
1. Alignment and Adjustment
1-1. Mechanism Alignment
Test Point:
PB RF - Pin 11 of CN452
Head Switching Trigger - Pin 9 of CN452

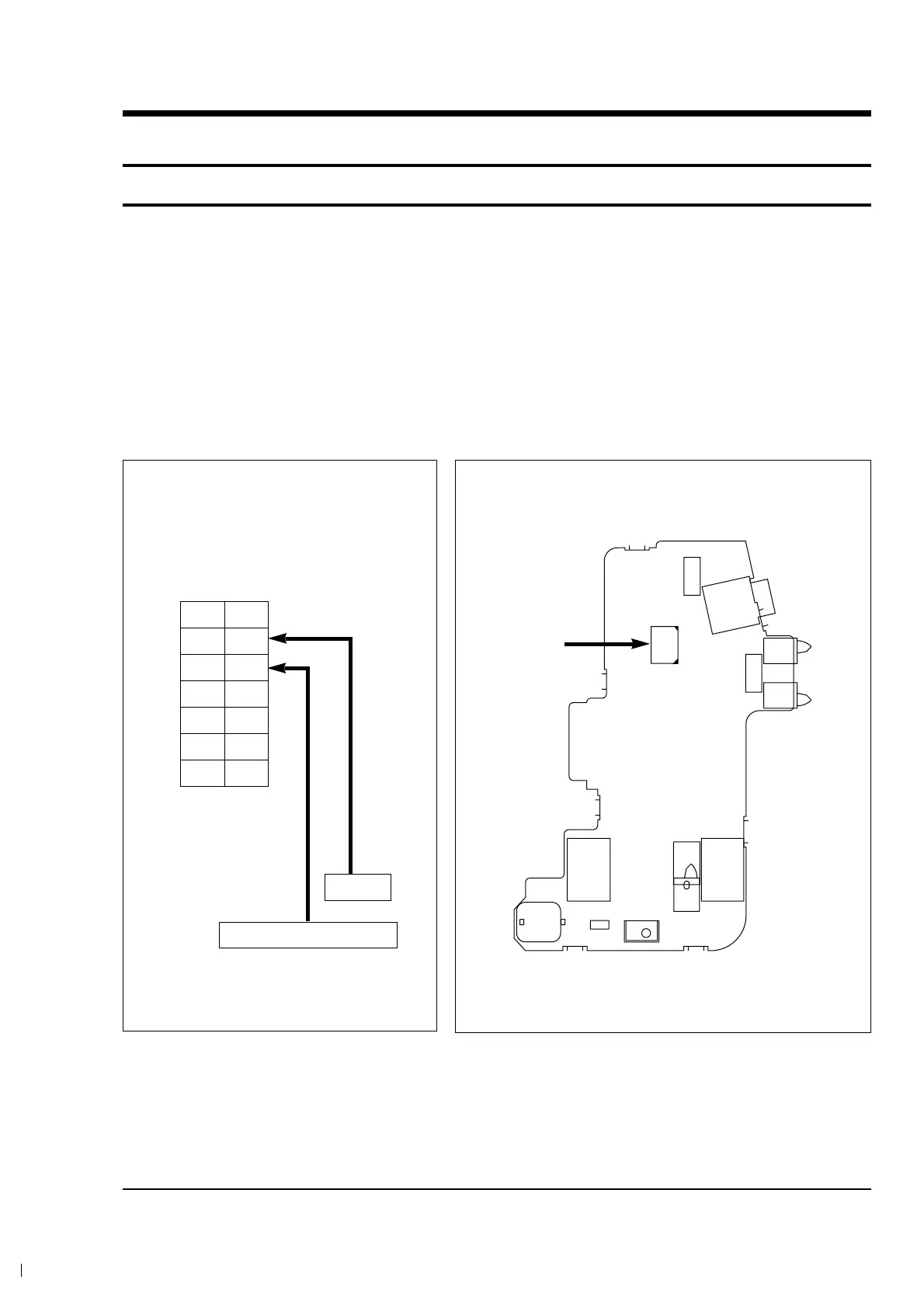

Fig. 2 Test location of test point (Rear Board)
Fig. 1 Test point
CN452
SW473
J453
SW478
SW477
BAT-TERMINAL BAT-TERMINAL
SW471
SW474
14
2
13
1
J451
DC-JACK
D451
J452
SUPER-JACK
ONLY Hi8 MODEL
CN452
PB RF
Head Switching - Trigger
CN452
14 13
12 11
10 9
87
65
43
12
