Samsung Electronics1-34
Alignment and Adjustment

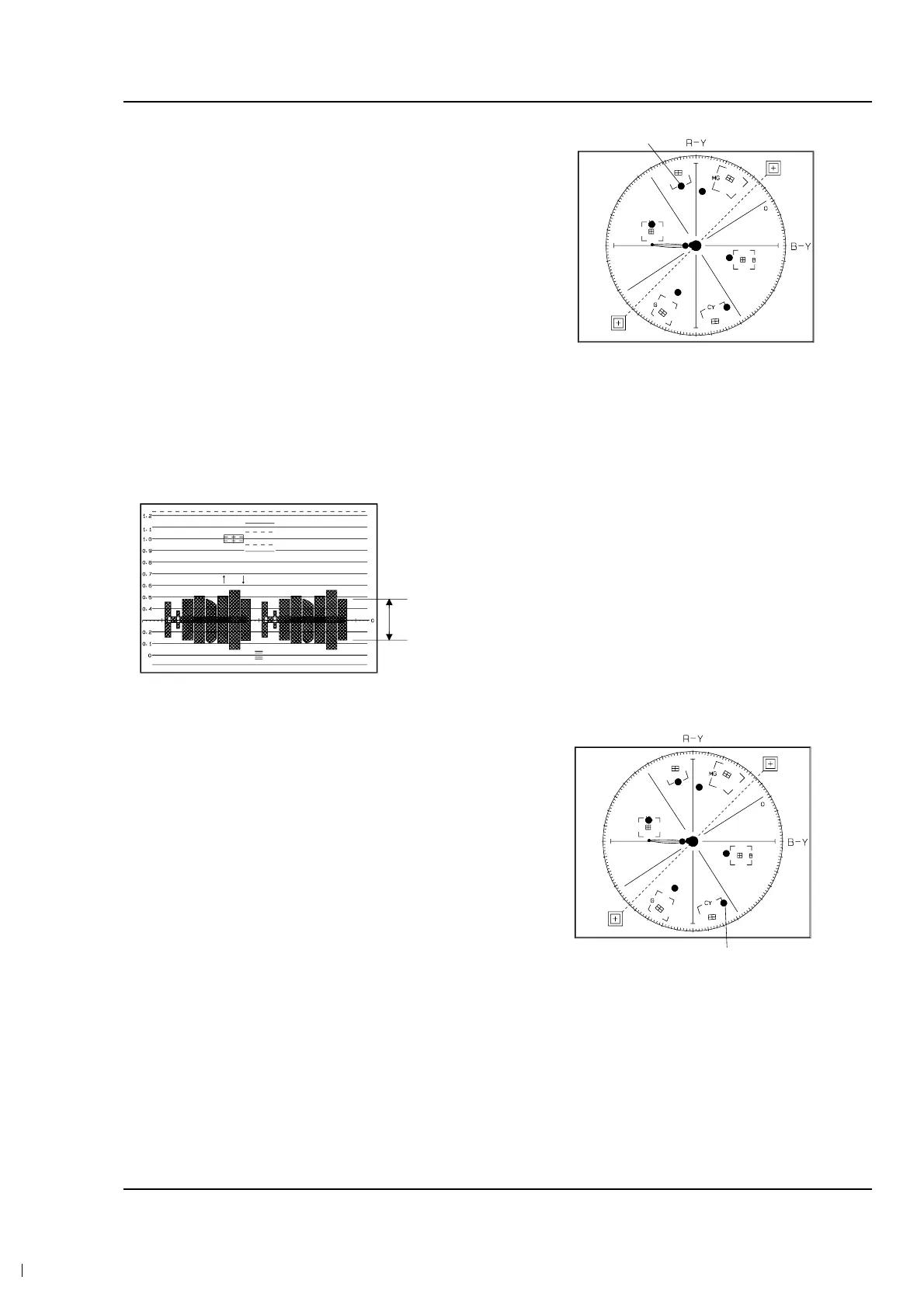

11. G-Cy Hue
1) Camera “E-E”, 3100°K color bar chart.
2) Video(output) jack and register of EEPROM.
3) Connect video(output) jack to vectorscope
input jack and monitor TV jack respectively.
4) Press the “BLC(MODE UP)/FADE(MODE
DOWN)” button so that the OSD state is “286.
XX XX(High)””287. XX XX(Low)”.
5) Aim the camera at a color bar chart illuminated
at 1500 to 2000 lx.
6) Adjust the “P.AE(DATA UP)/ DSE(DATA
DOWN)” button so that the Cyan vector is 284.
7) Be sure to press the “ENTER (CONFIRM)”
button to memorize setting.
Note : Bright dot shifts after the confirm button is
pressed.
(outdoor : 03A, 03B)
9. B-Y Gain
1) Camera “E-E”, 3100°K color bar chart.
2) Video(output) jack and register of EEPROM.
3) Connect video(output) jack to waveform moni-
tor input jack and monitor TV jack respectively.
4) Press the “BLC(MODE UP)/FADE(MODE
DOWN)” button so that the OSD state is “283.
XX XX(High)””284. XX XX(Low)”.
5) Aim the camera at a color bar chart illuminated
at 1500 to 2000 lx.
6) Adjust the “P.AE(DATA UP)/DSE(DATA
DOWN)” button so that the blue level is
NTSC : 50IRE, PAL : 350mV
7) Be sure to press the “ENTER(CONFIRM)” but-
ton to memorize setting.
Note : Bright dot shifts after the confirm button is
pressed.
(outdoor : 036, 037)
10. R-Mg Hue
1) Camera “E-E”, 3100°K color bar chart.
2) Video(output) jack and register of EEPROM.
3) Connect video(output) jack to vectorscope
input jack and monitor TV jack respectively.
4) Press the “BLC(MODE UP)/FADE(MODE
DOWN)” button so that the OSD state is “284.
XX XX(High)””285. XX XX(Low)”.
5) Aim the camera at a color bar chart illuminated
at 1500 to 2000 lx.
6) Adjust the “P.AE(DATA UP)/ DSE(DATA
DOWN)” button so that theRed vector is 105.
7) Be sure to press the “ENTER (CONFIRM)” but-
ton to memorize setting.
Note : Bright dot shifts after the confirm button is
pressed.
(outdoor : 038, 039)
To Next Page
