Samsung SCX4521F - B/W Laser - All-in-One - OPE Unit Exploded Views

Samsung Electronics
Service Manual
Exploded Views & Parts List
7-6

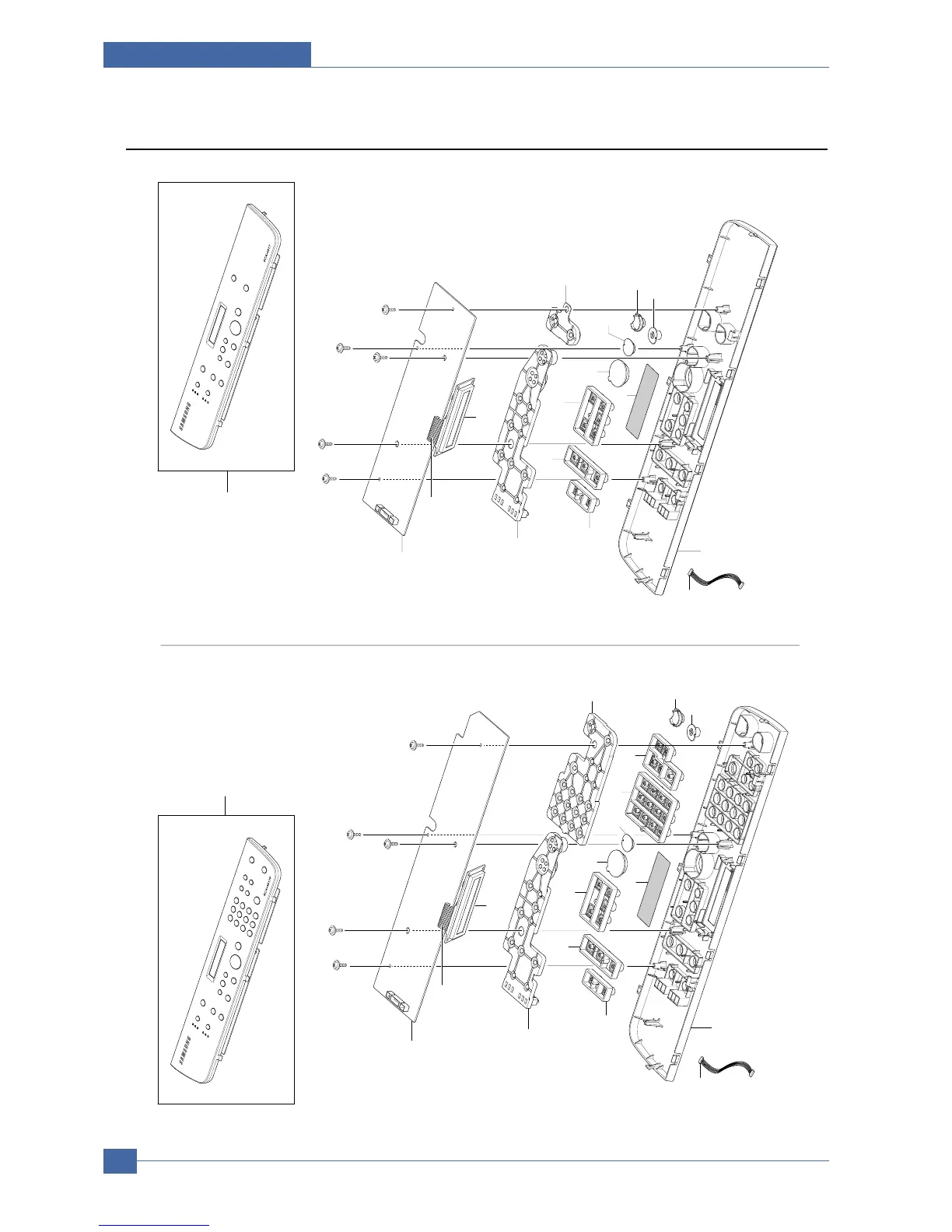

7.5 OPE Unit Exploded Views
SCX-4521F (4in1)
SCX-4321 (3in1)
0
1
15
13
11
6
10
7
12
9
8
3
2
4
17
16
3
12
5
13
7
6
11
10
8
9
3
4
0
2
14
14
17
16
