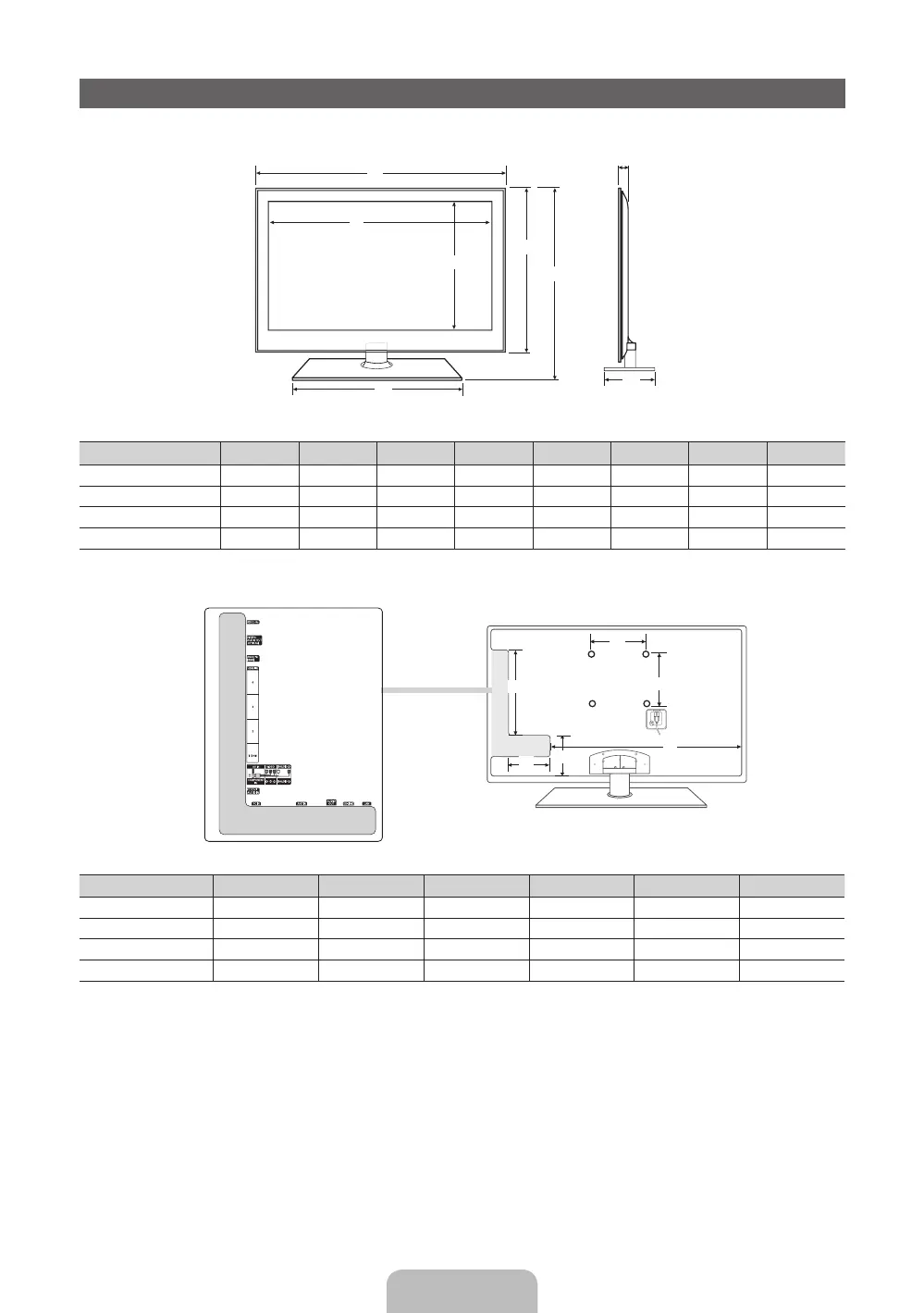

Dimensions
■ Front view / Side view
(Unit: inches)
Model name
1 2 3 4 5 6 7 8
UN32D5500RF
30.2 27.5 15.5 17.5 18.4 20.9 1.2 9.4
UN37D5500RF
35.0 32.3 18.2 18.9 21.2 23.7 1.2 10.0
UN40D5500RF
37.6 34.9 19.6 18.9 22.6 25.1 1.2 10.0
UN46D5500RF
43.0 40.1 22.5 19.4 25.6 28.1 1.2 10.8
■ Jack panel detail / Rear view
(Unit: inches)
Model name
1 2 3 4 5 6
UN32D5500RF
7.8 7.8 19.7 6.8 5.7 9.3
UN37D5500RF
7.8 7.8 22.7 6.8 7.8 9.3
UN40D5500RF
7.8 7.8 23.7 6.8 8.1 9.3
UN46D5500RF
15.7 15.7 29.6 6.8 9.3 9.3
NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the
dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors.
© 2011 Samsung Electronics America, Inc
3
6
5
4
1
2
1
2
3
4
5
6
7
8
