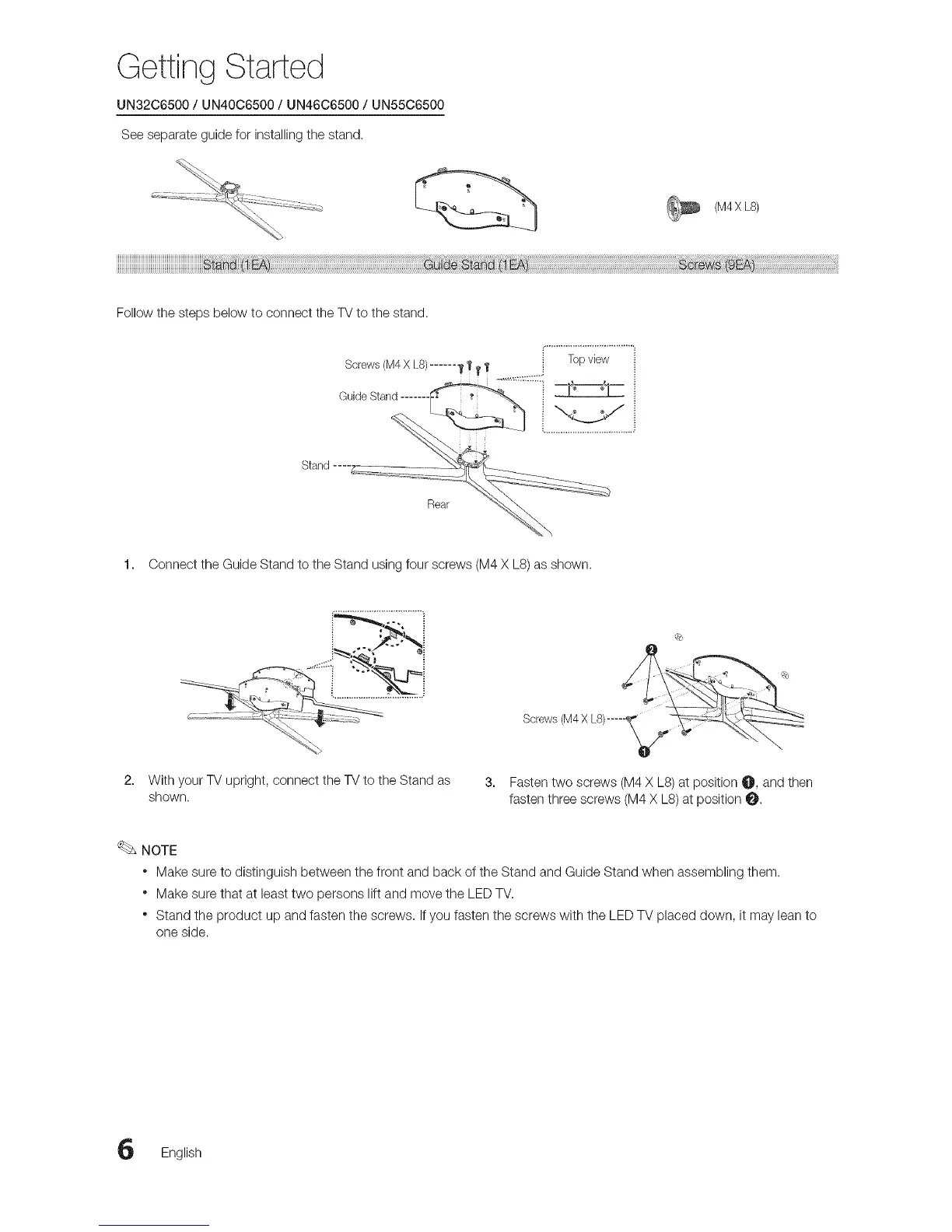

Getting Started
UN32C6500 / UN40C6500 / UN46C6500 / UN55C6500
See separate guide for installing the stand.
_ (M4XLS)
Follow the steps below to connect the TV to the stand.
Stand
Topview
Screws(M4XL8)...... _I_T1'
Guide Stand i _
Rear ___
1. Connect the Guide Stand to the Stand using four screws (M4 X LS)as shown.
2. With your TV upright, connect the TV to the Stand as 3.
shown.
Screws(M4XLS)---
Fasten two screws (M4 X LS) at position _, and then
fasten three screws (M4 X LS) at position _.
NOTE
* Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.
* Make sure that at least two persons lift and move the LED TV.
* Stand the product up and fasten the screws. If you fasten the screws with the LED TV placed down, it may lean to
one side.
