Samsung SGH-E360 - Camera Part Troubleshooting

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization

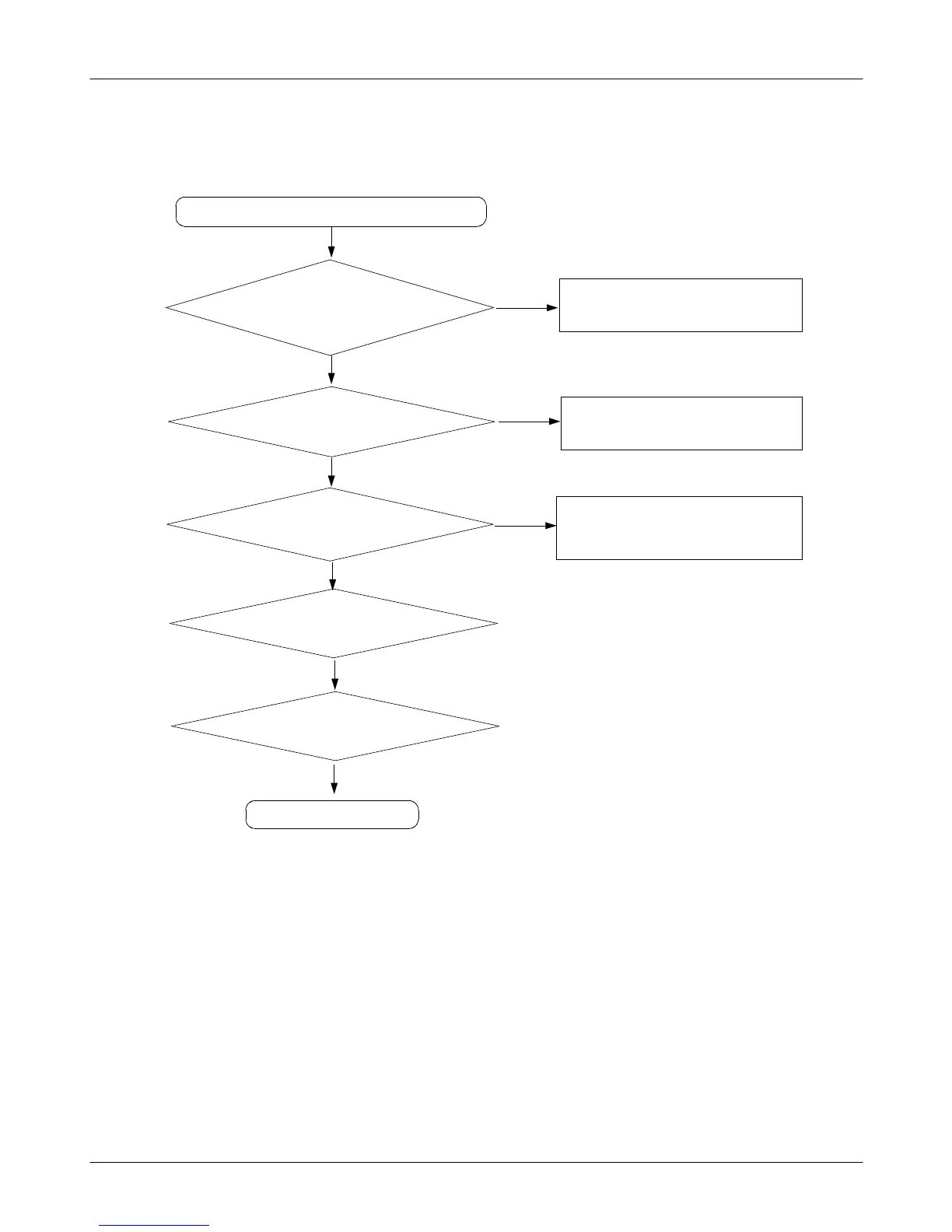

Flow Chart of Troubleshooting
7-24
7-11. Camera part
"Camera" function does not work
Yes
No
Reconnect the camera module
Check the Camera
connector on Slide PCB
Yes
R10(J3) = 2.8V?
No
Check the U400 ( or IC5)
Yes
C304 = 26MHz?
No
Check U302(pin2, pin4) related to
26Mhz
and R303
Yes
Is there another problem?
END
Replace the camera
module
Yes
