3-2 Outdoor Unit
No Parts Procedure Remark

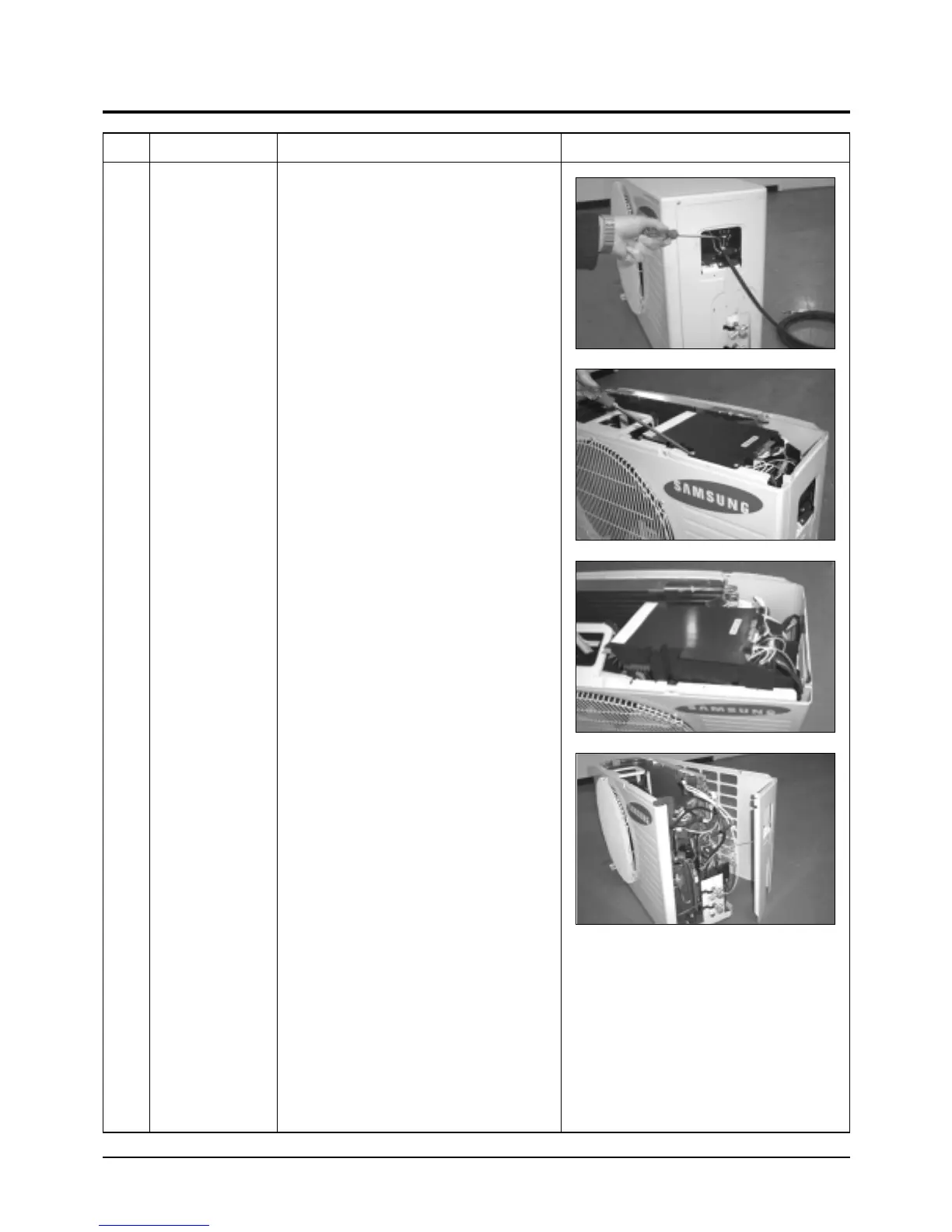

1 Common Work
&
Ass'y-control Out
1) Loosen the fixing screw and detach the
Cover-Valve.
2) Detach the Cable-Connector Wire from the
Terminal-Block.
3) Loosen 5 fixing screws and detach the
Cabinet-Upper.
4) Loosen 5 fixing screws from the
Ass'y-Control Out.
5) Detach the Terminal-Housing from the
Ass'y-Control Out.
6) Detach the Ass'y-Control Out from the
outdoor unit.
7) Loosen 7 fixing screws and detach the
Cabinet-Side.
