Samsung SH09BPD - PCB Diagram; 8-1 Indoor Unit PCB Assembly

Samsung SH09BPD
56 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Samsung Electronics36
8. PCB Diagram

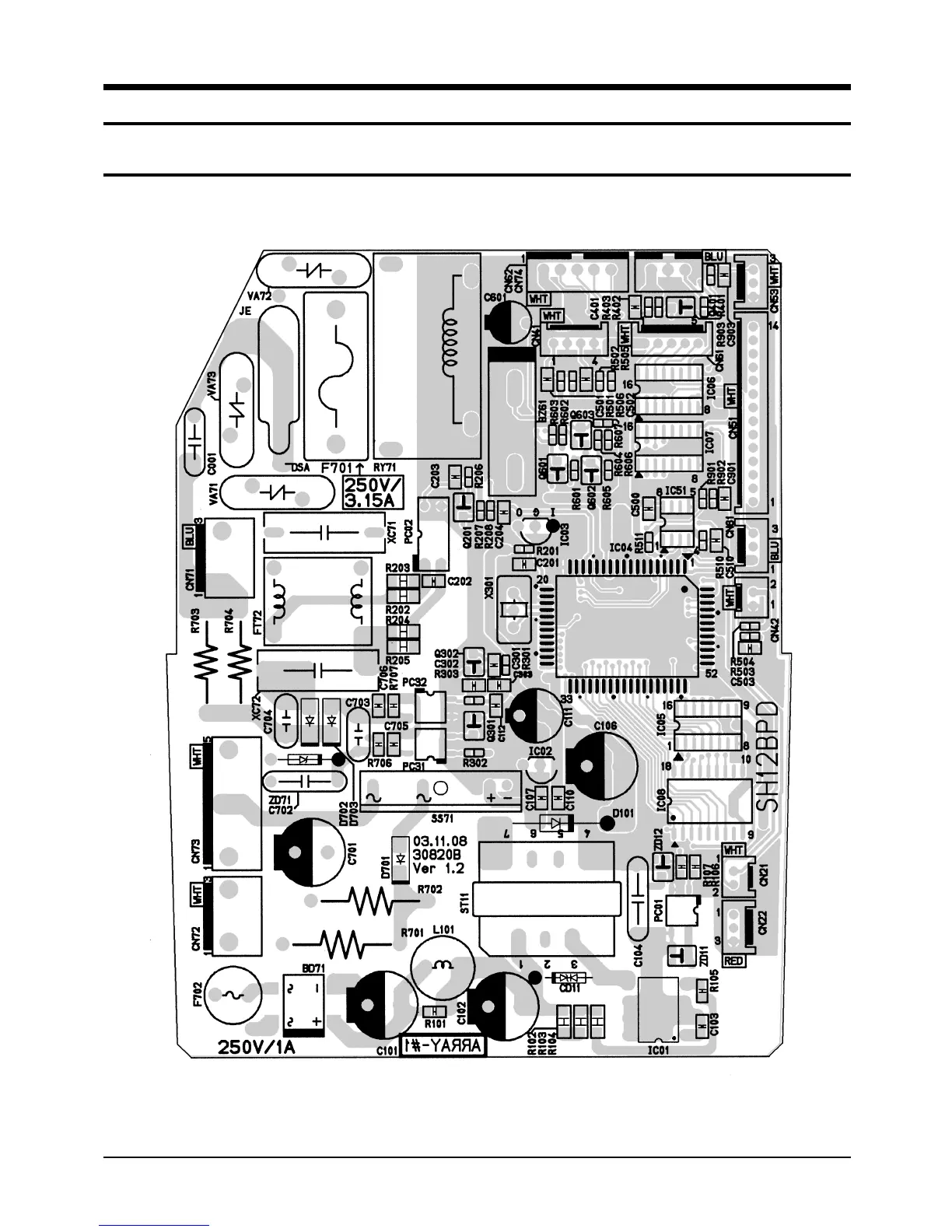

8-1 ASS'Y PCB Indoor Unit : DB93-02584A
■ TOP
DB98_00000A(1)_1 1/29/04 4:23 PM Page 36
