Disassembly and Reassembly
Samsung Electronics12
No Parts Procedure Remark
2
3

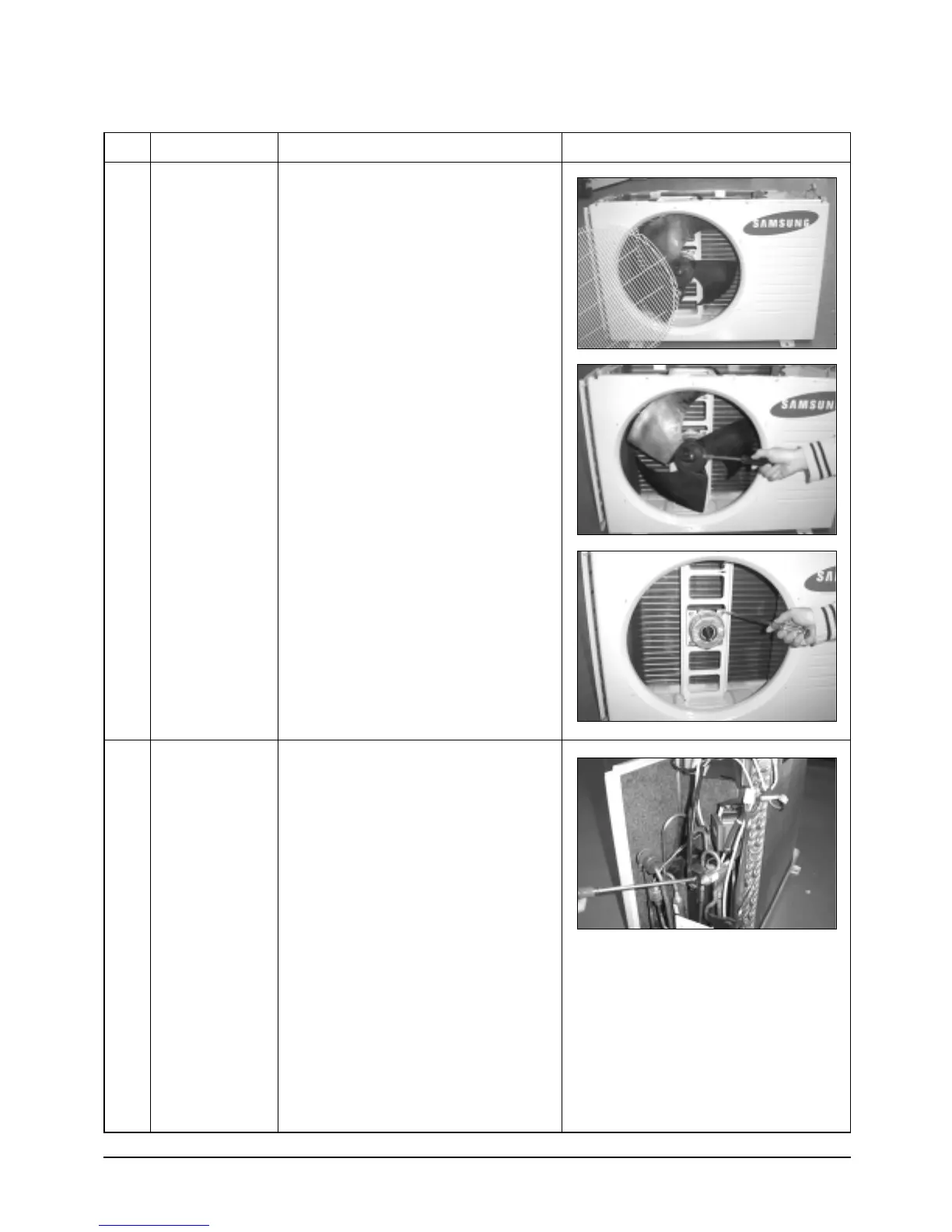

Fan-Motor
Heat Exchanger
1) Loosen 4 fixing screws of the Guard-Fan.
2) Remove the Nut Flange.
(Turn to the clockwise)
3) Detach the Fan.
4) Loosen 4 fixing screws to detach the Motor.
1) Loosen 3 fixing screws of Ass'y-Frame and
Partition.
2) Disassemble the inlet and outlet pipe by
welding.
3) Detach the Heat Exchanger.
DB98_00000A(1)_1 1/29/04 4:22 PM Page 12
