Disassembly and Reassembly
4-4Samsung Electronics

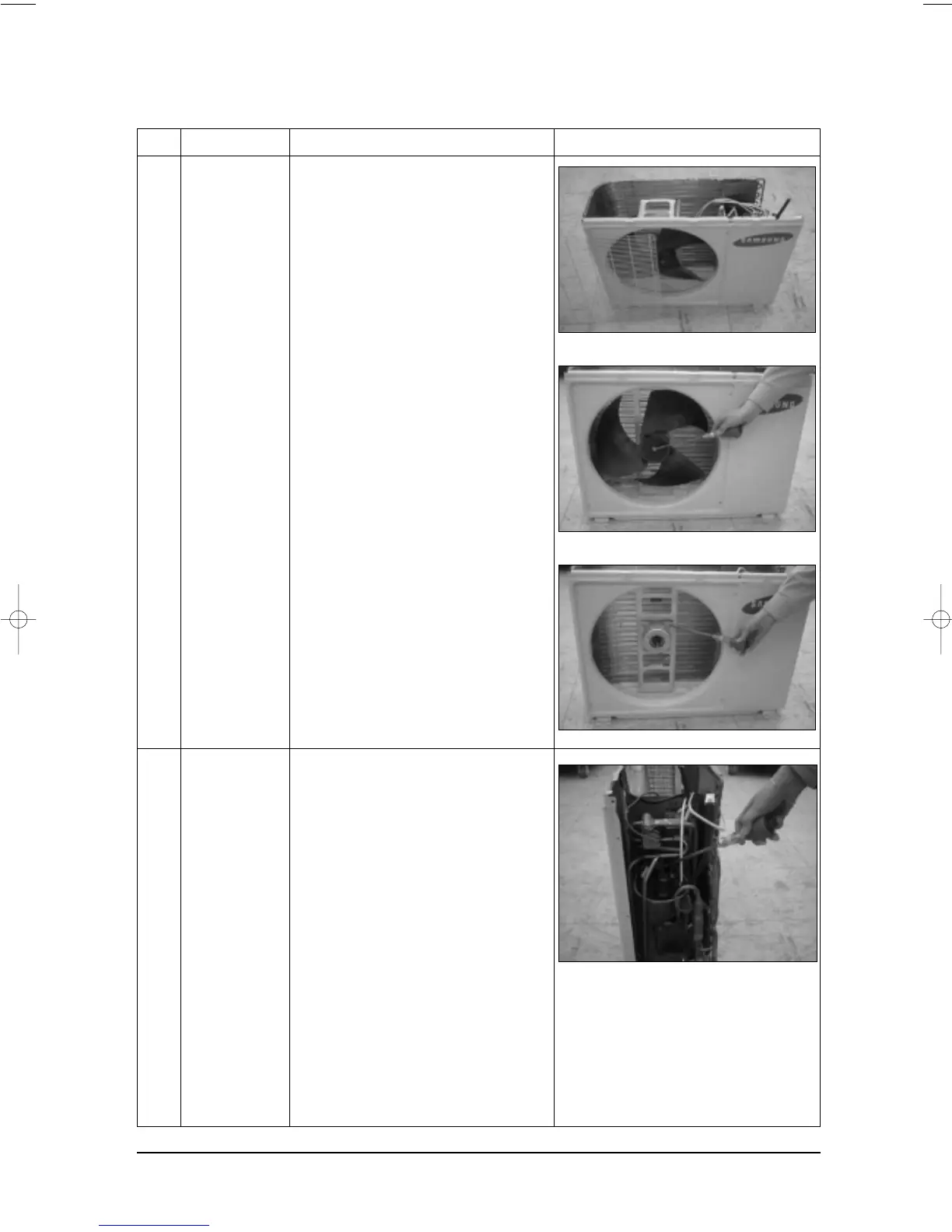

No Parts Procedure Remark
2
3
Fan-Motor
Heat Exchanger
1) Loosen Four fixing screw of the Guard-
Fan.
2) Remove the nut flange (Turn to the right to
remove, as it is a left hand screw)
3) Separate the fan.
4) Loosen four fixing screws to separate the
motor.
1) Do “1” above.
2) Loosen three fixing screws of Ass’y-Frame
and Partition.
3) Disassemble the inlet and outlet pipe by
welding.
4) Separate the heat exchanger.
DB98_08728A(1)_SM_1 12/20/02 3:25 PM Page 3-9
To Next Page
