4-1. Disassembly

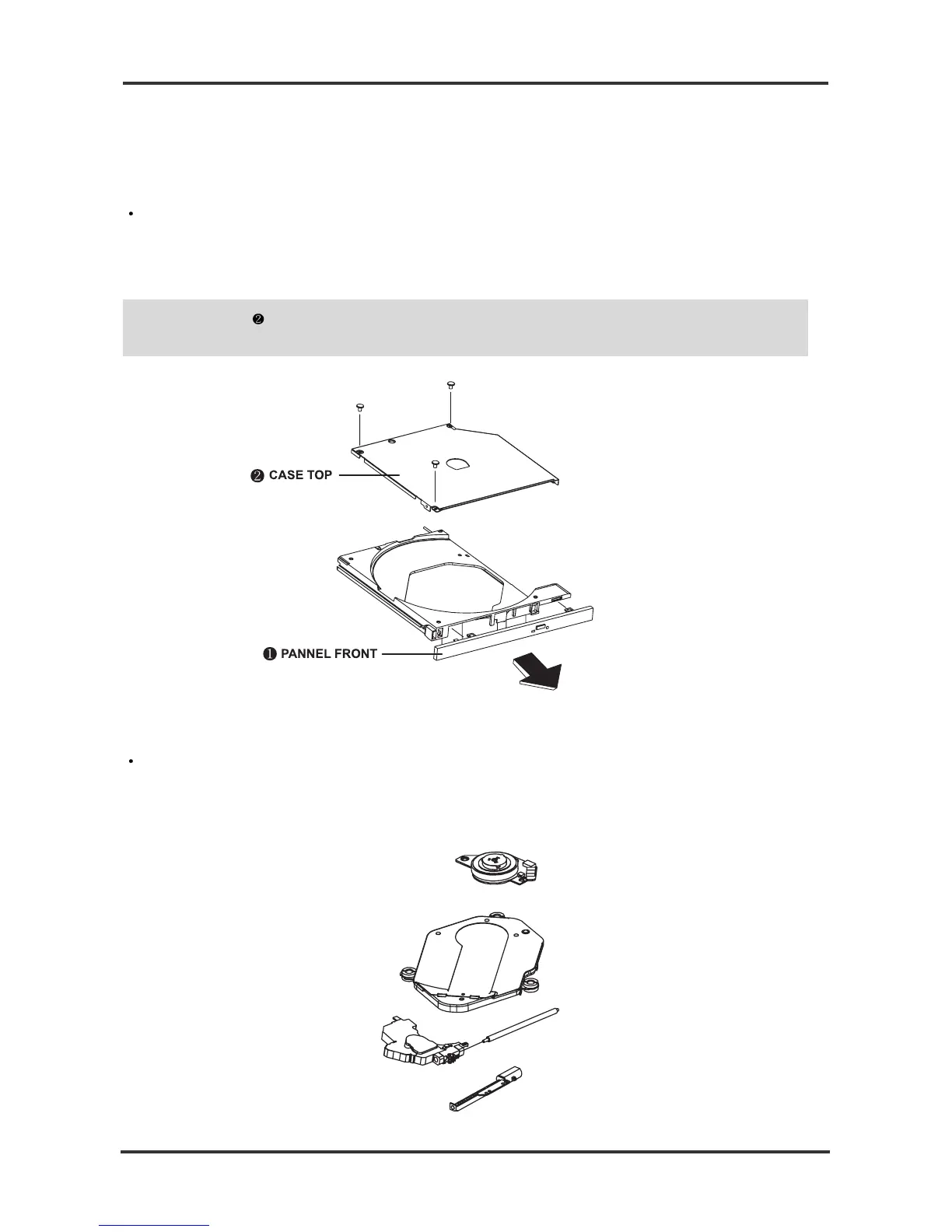

CASE-TOP and ASSY PANEL FRONT Disassembly
4-1-1. Exterior Components and PCB Disassembly
(a) Unscrew 3 Screws in the back by ejecting SET and pulling it forward.
(b) Detach CASE TOP by pushing back and lifting up.
(c) Detach COVER-DECK.
Note: If the tray does not open, then force the tray open manually by pushing the pin Clip 3
into the emergency hole on the unit.
ASSY-FEED ING Disassembly
(a) Detach FPC-SUB from MONITOR-SPINDLE, and FPC-PU,
FPC-MONITOR SPINDLE from MAIN-PCB.
(b) Detach ASSY-FEEDING from ASSY-TRAY.
