Spinpoint M9T Product Manual REV 1.0
15
INSTALLATION
4.3.1 Orientation

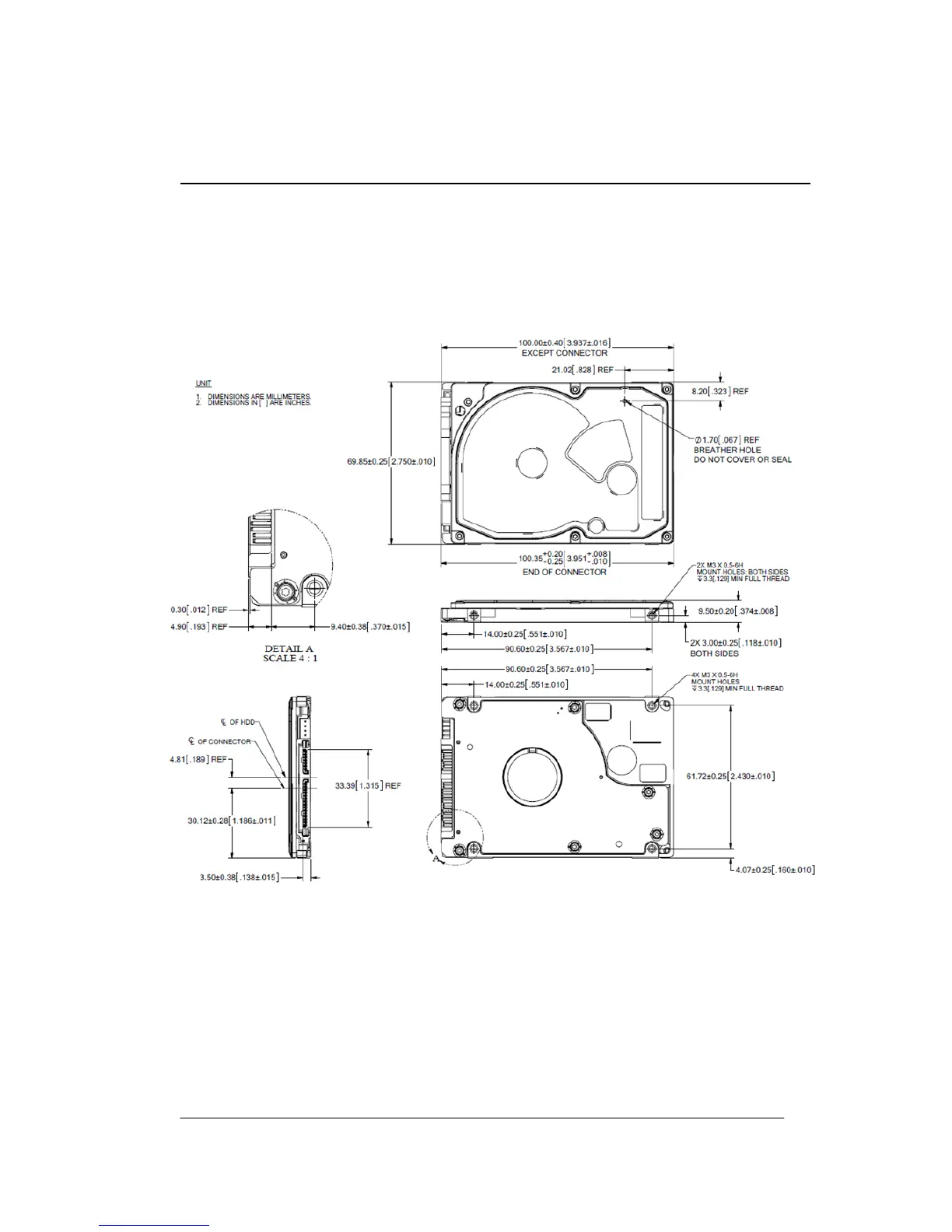

Figure 4-2 shows the physical dimensions and mounting holes located on each side of the drive. The
mounting holes on Spinpoint M9T hard disk drive allow the drive to be mounted in any direction.
Figure 4-2:
Mounting Dimensions
