Samsung SpinPoint M9T - D Rive I Nstallation

Spinpoint M9T Product Manual REV 1.0
20
INSTALLATION
4.5 Drive Installation
The Spinpoint M9T hard disk drive can be installed in a SATA compatible system

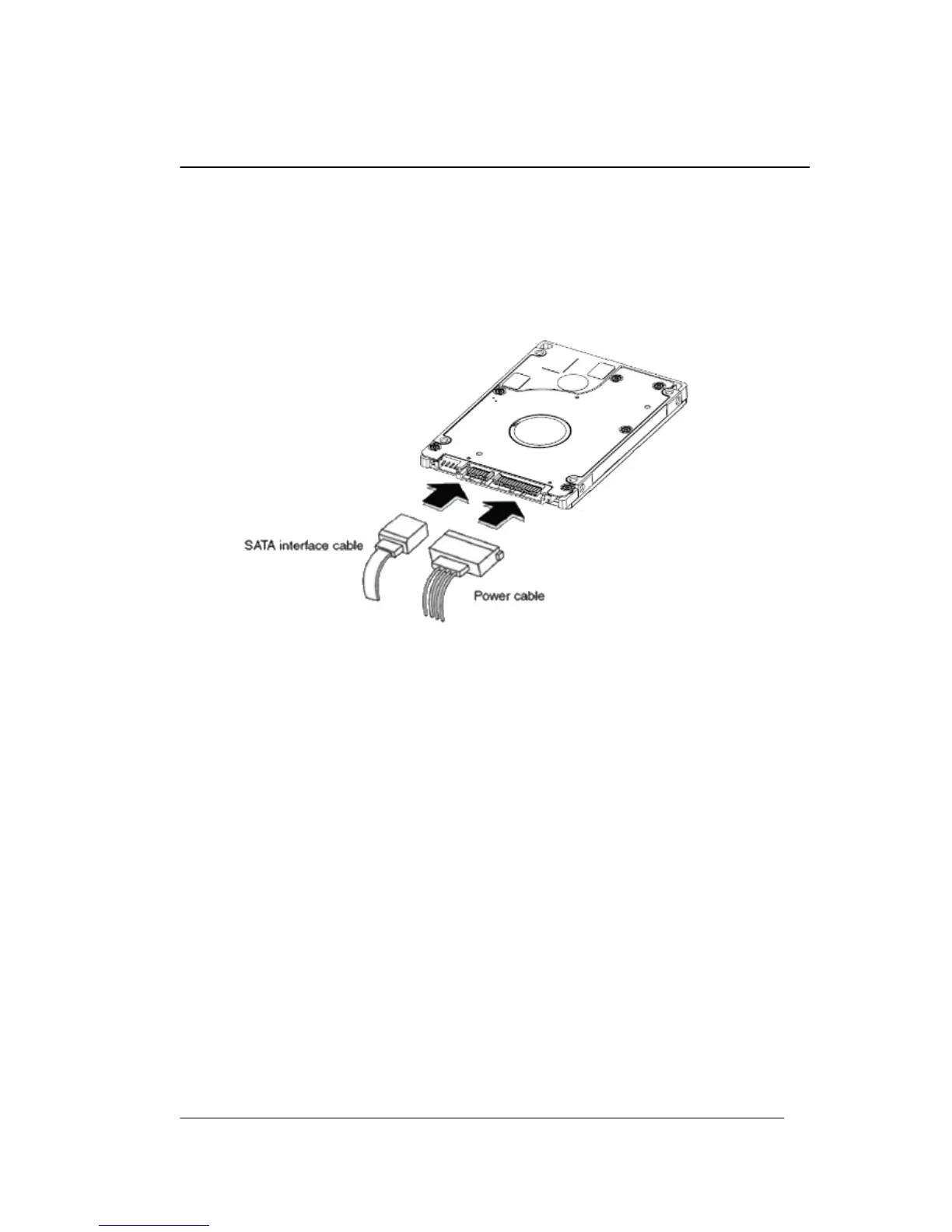

Figure 4-8 indicates the interface and power cable connections required for proper drive installation.
Figure 4-8 DC Power Connector and SATA-Bus Interface Cable Connections
