Samsung SpinPoint M9T - Drive Installation into System

Spinpoint M9T Product Manual REV 1.0
17
INSTALLATION
Computer m ainboard or Serial ATA host adapter
Figure 4-5 Connectivity to
Drives

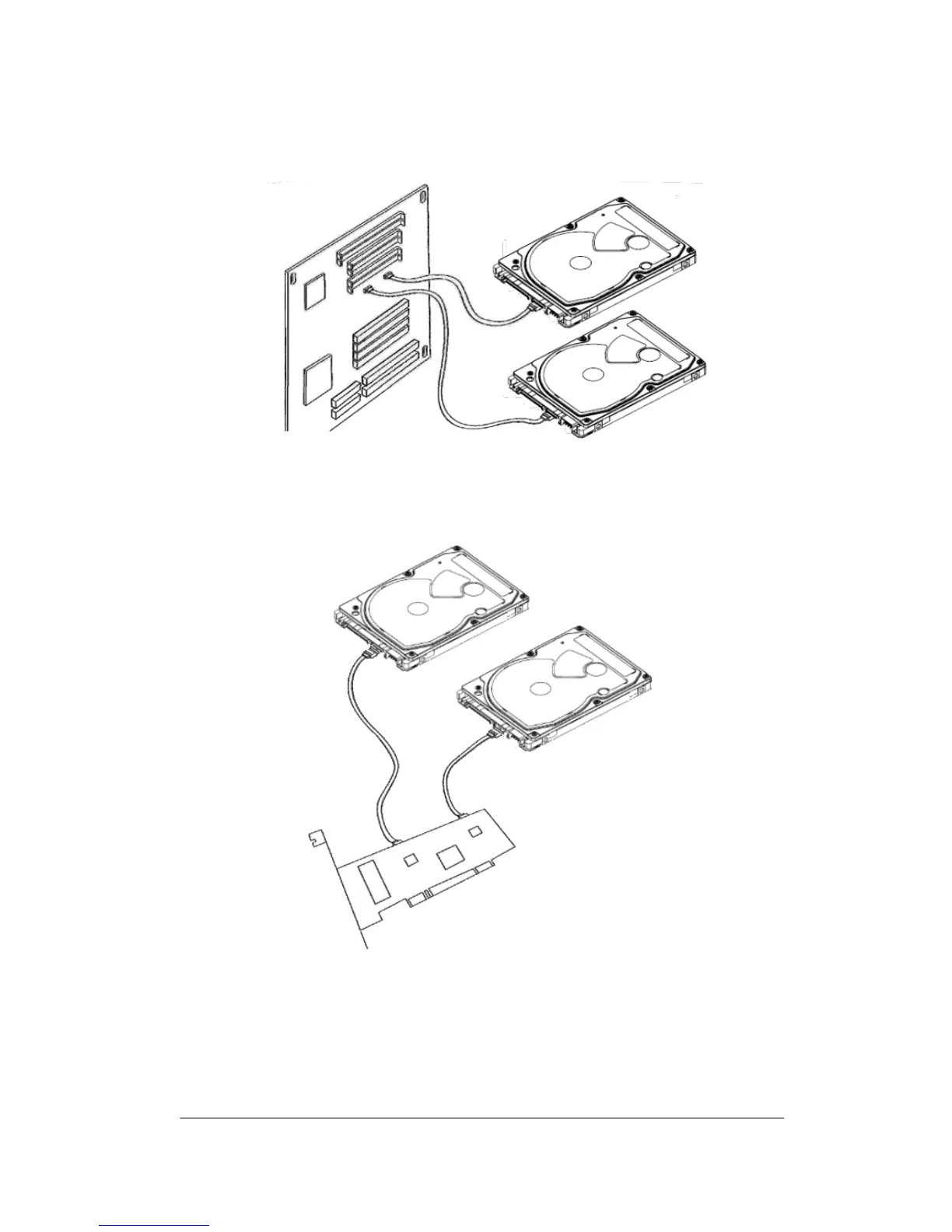

Figure 4-5 illustrates Connectivity of SATA to drives. It can be used with a SATA host adapter (lower
picture) or directly into motherboard that has the SATA built-in host bus adapter (upper picture).
