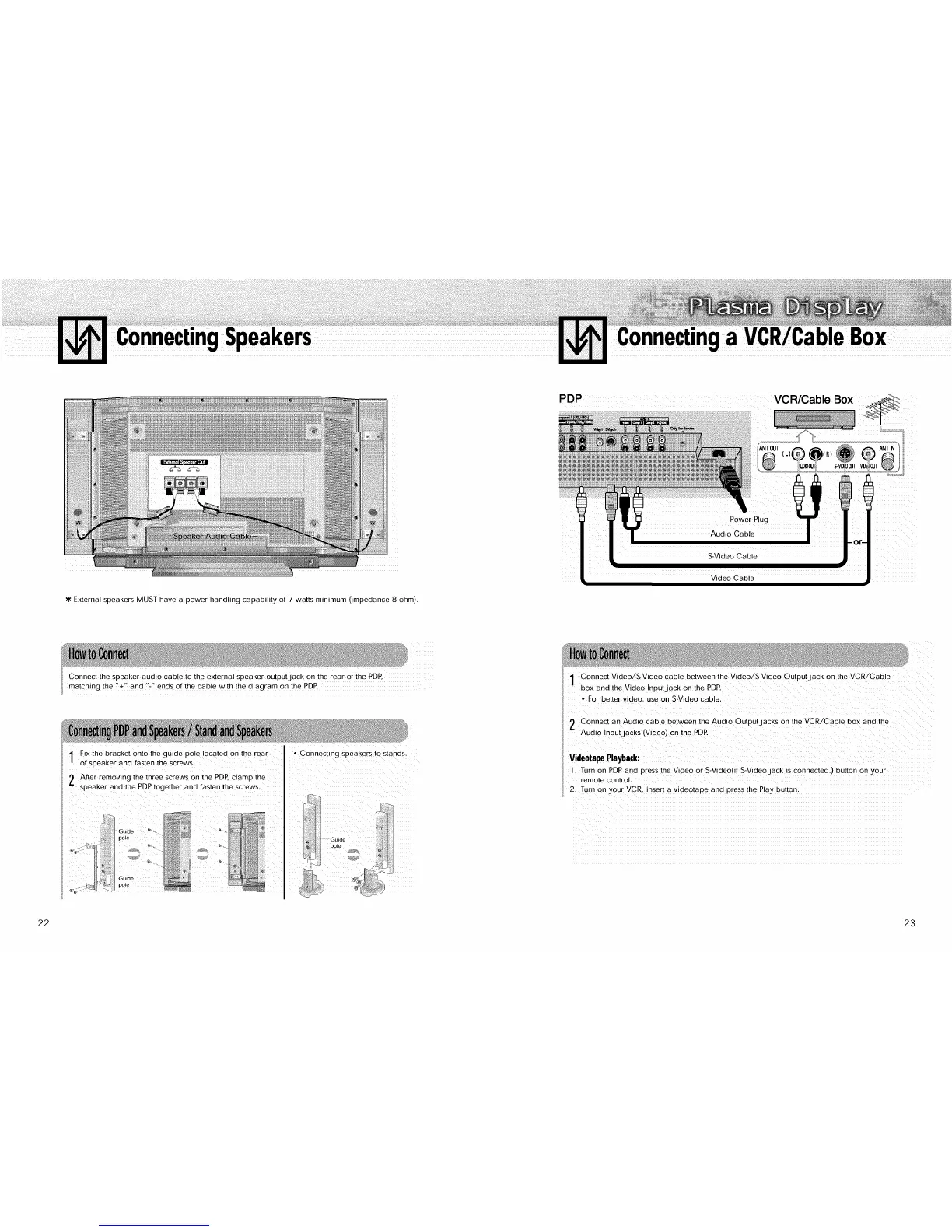

ExternalspeakersMUSThaveapowerhandlingcapabilityof7wattsminimum(impedance8ohm).
ConnectthespeakeraudiocabletotheexternalspeakeroutputjackontherearofthePDP,
matchingthe!'+,and'i:,erlds0fthecablewiththediagram0nthePDP.
1Fixthe bracket onto the guide pole locate d On the rear * Connecting speakers to stands,
of speaker and fasten the screws.
_ ARer removing the three screws on the PDP, clampthe
speaker and the PDP together and fasten the screws. I
)
Connectinga VCR/CableBox
Audio Cable
S-Video Cable
.,®@{,,@
Connect Video/S-Video cable between the Video/S-Video Output Jack on the VCR/Cable
box and the Video Input jack on the PDR
• For better video use on S-Video cable
Connect an Audio cable between the Audio Outputjacks on the VCR/Cable box and the
Audio Input jacks (Video) on the PDR
VideotapePlayback:
1. Turn on PDP and press the Video or S-Video(if S-Video jack is connected.} button on your
remote control
2. Turn on your VCR. insert a videotape and press the Play 3utton.
22 23
