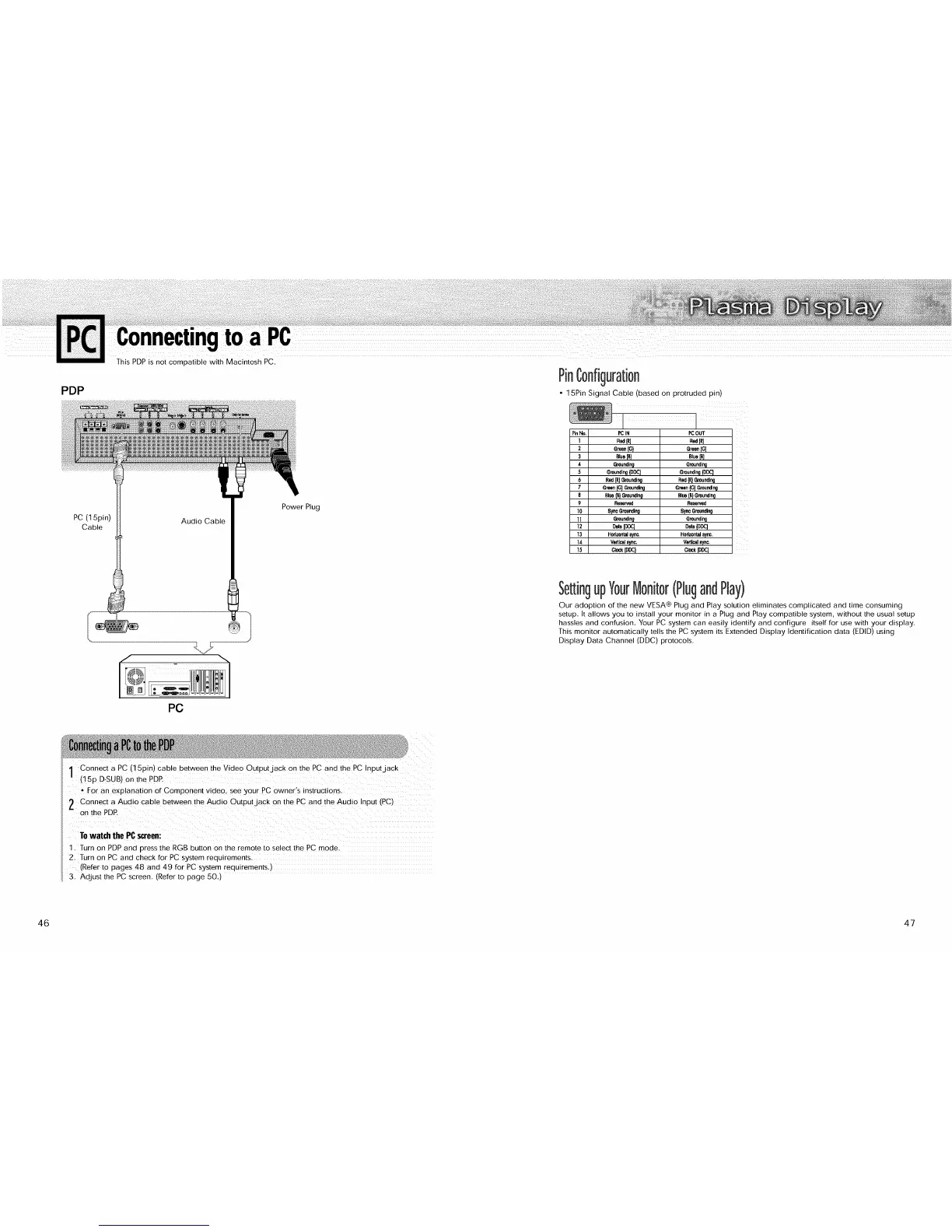

PDP
PC (15pin)
Cable
This PDP is not Compatible with Macintosh PC.
PinC0nfigurati0n
• 15Pin Signal Cable (based on protruded pin)
Audio Cable
Power Plug
::::::::::::::1 ¸ ::::::¸ :
PinNo. PCIN
1 Rod(gl
2 Green{G)
3 Blue{BI
4 Grounding
5 Grounding(DDCI
6 Red[R)Grounding
7 Green((3)Grounding
8 Blue(g)Grounding
9 Beservnd
10 8yncGrounding
11 Grounding
12 Data{DDq
13 Horizontalsync.
14 Verticals_e.
15 ClOCk{DDC)
PCOUT
Red(el
Green{G)
Blue(BI
Grounding
Grounding(DDq
Red(R)Grounding
Green(G)Grounding
Blue(B)Grounding
Reserved
8yncGrounding
Grounding
Data(DDq
Hodzontalsync.
Ver_caJs,/nc.
Clock(DDq
SettingupYourMonitor(PlugandPlay)
Our adoption of the new VESA® Plug and Play solution eliminates complicated and time consuming
setup. It allows you to install your monitor in a Plug and Play compatible system, without the usual setup
hassles and confusion. Your PC system can easily identify and configure itself for use with your display.
This monitor automatically tells the PC system its Extended Display Identification data (EDID) using
Display Data Channel (DDC) protocols.
PC
1 Connect a PC 115pin) cable between the Video Outpu[jack on the PC and the PC Inpu[jack
/ (15p D-SUB) on the PDE
• For an explanation of Corr aonent video see your PC owner's instructions.
Connect a Audio cable between the Audio Output jack on the PC and the Audio Input (PC)
on the PDP.
Towatch the PCscreen:
1. Turn on PDP and press the RGB button on the remote to select the PC mode.
2. Turn on PC and check for PC system requirements.
(Refer to pages 48 and 49 for PC system requirements.)
3. Adjust the PC screen. (Refer to page 50.)
46 47
