Samsung SR-L626EV - Part Identification and Disassembly

Samsung Electronics 7

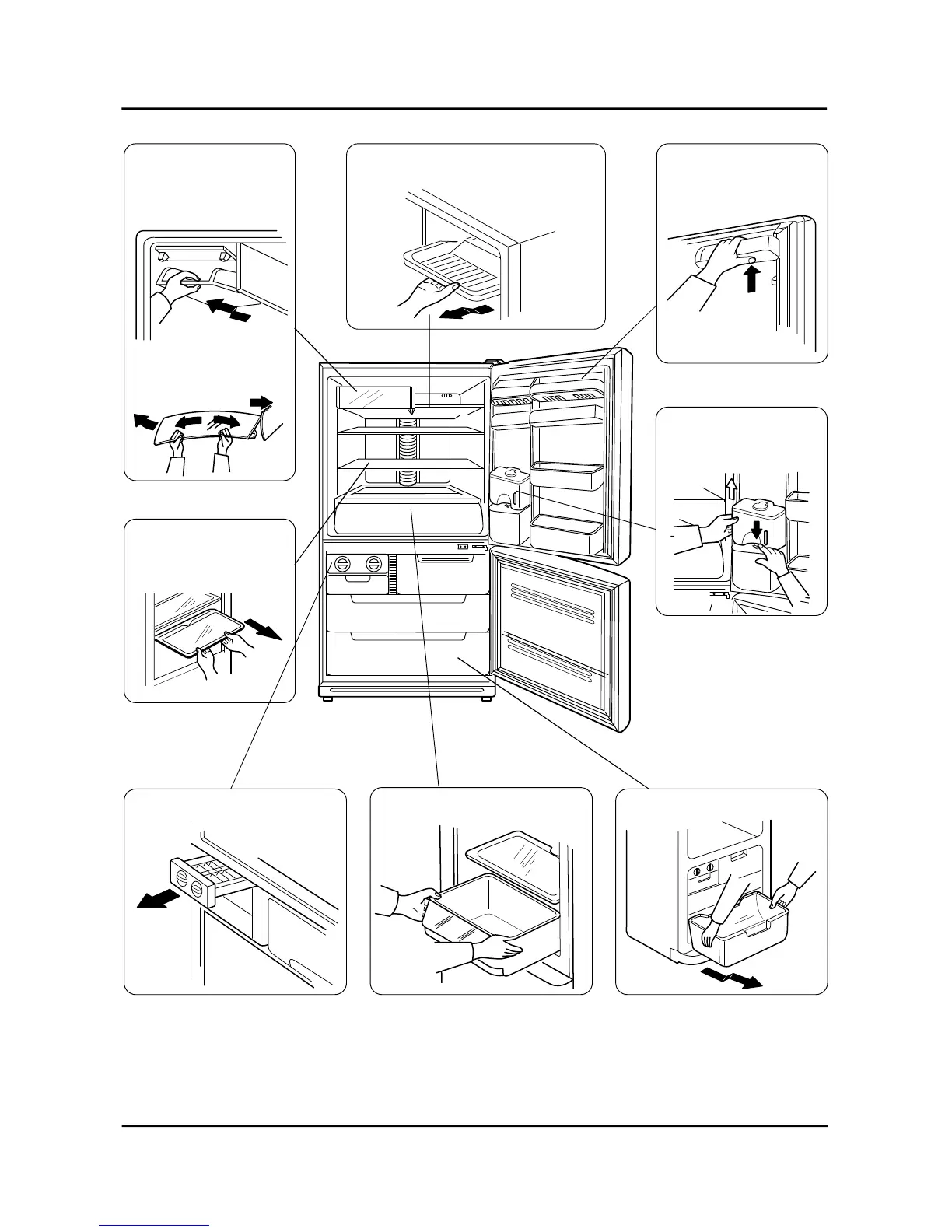

5-2 Part Name & Disassembly
• Chilled Compartment
disassembly
1. Pull it out by following
the arrow.
• Top tray disassembly
Pull it forward.
Take out food stuffs and
pull it out by following
the arrow.
Take out the water
bottle with the bottom
latch pressed.
• Tray disassembly
Pull it out by following
the arrow.
• Ice compartment • Vegetable compartment
• Freezing compartment
2. Bend the cover and
take it out.
①
②
•
•
•
•
•
•
•
•
