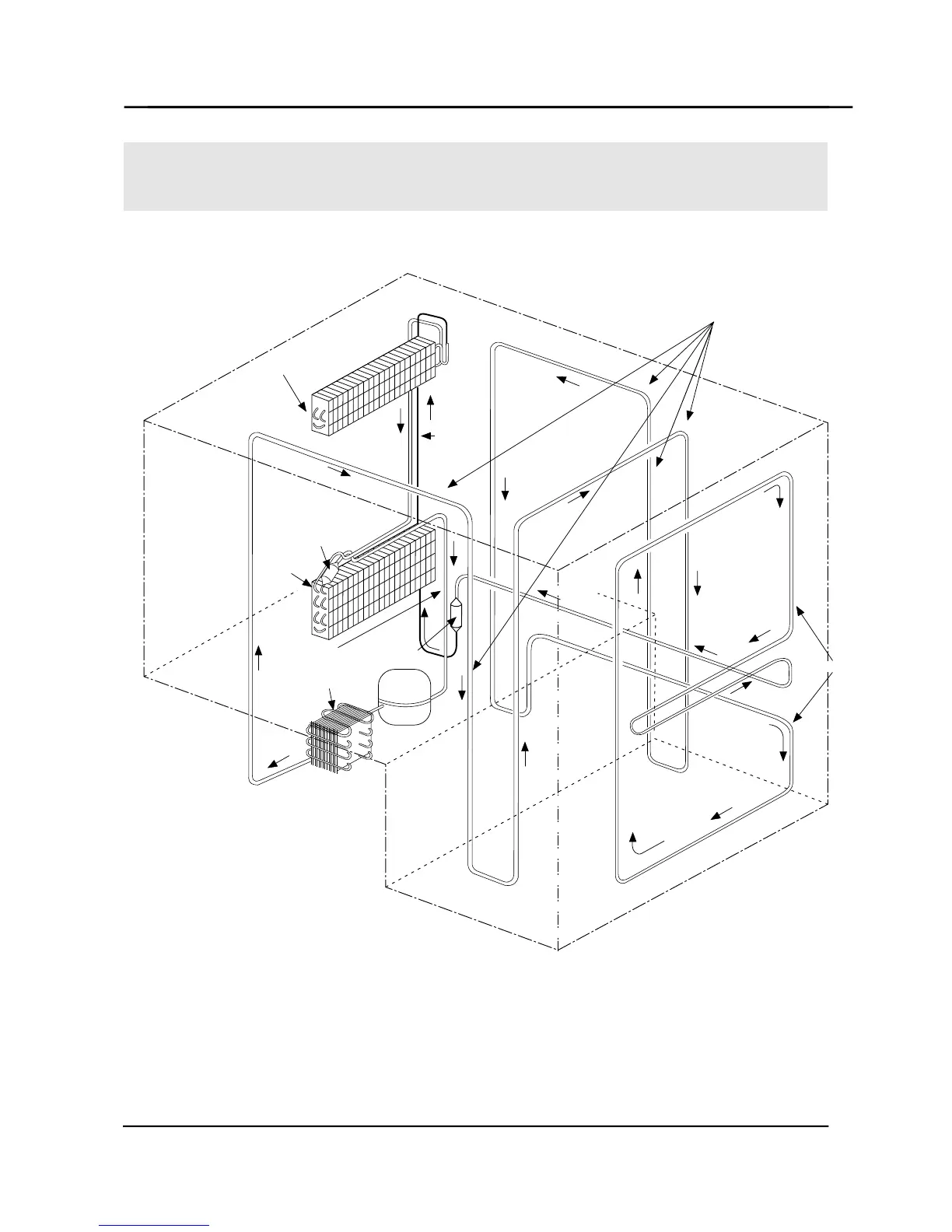

5-3 Circulation of Refrigerant (H.M CYCLE)
Compressor → Sub condenser → Cluster pipe → Hot pipe → Dryer → Capillary tube
→ R-Evaporator → F-Evaporator → Accumulator → Suction pipe → Compressor
ACCUMULATOR
F-EVAPORATOR
CAPILLARY
TUBE
R-EVAPORATOR
SUB CONDENSER
SUCTION PIPE
DRYER
COMP.
SIDE CLUSTER PIPE
HOT PIPE
